Глава 1. Тепловые явления. Параграф 20. Влажность воздуха. Способы определения влажности воздуха. Вопросы после параграфа - номер 4, страница 77.
App\Models\Task {#1024 // resources/views/models/task/default.blade.php #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 599000 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "77" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/20-1-4" "field_display_title" => "4" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#331 #items: array:1 [ 0 => App\Models\Term {#1029 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 26 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "номер" "field_cases" => array:6 [ "field_accusative_case" => "номер" "field_creative_case" => "номером" "field_dative_case" => "номеру" "field_genitive_case" => "номера" "field_nominative_case" => "номер" "field_prepositional_case" => "номере" ] "field_short_name" => "№" ] #original: array:6 [ "id" => 26 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "номер" "field_cases" => array:6 [ "field_accusative_case" => "номер" "field_creative_case" => "номером" "field_dative_case" => "номеру" "field_genitive_case" => "номера" "field_nominative_case" => "номер" "field_prepositional_case" => "номере" ] "field_short_name" => "№" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1026 #items: [] #escapeWhenCastingToString: false } "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#342 #items: array:1 [ 0 => App\Models\Branch {#1023 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598563 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Тепловые явления" "field_branch_order" => "1" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#333 #items: array:1 [ 0 => App\Models\Term {#1033 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:7 [ "id" => 29 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Глава" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => null ] #original: array:7 [ "id" => 29 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Глава" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_page_start" => "3" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1030 #items: array:1 [ 0 => App\Models\Book {#1032 #connection: "mysql" #table: "books" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:50 [ "id" => 51 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_tree_default_status" => "tasks" "field_pages_status" => null "field_subject" => Illuminate\Database\Eloquent\Collection {#1034 #items: array:1 [ 0 => App\Models\Term {#1035 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:10 [ "id" => 6493 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Физика" "field_abbreviated_name" => null "field_cases" => array:6 [ …6] "field_foreign_lang_name" => null "field_short_name" => null "field_subject_type" => "technical_subject" "field_translit" => "fizika" ] #original: array:10 [ "id" => 6493 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Физика" "field_abbreviated_name" => null "field_cases" => array:6 [ …6] "field_foreign_lang_name" => null "field_short_name" => null "field_subject_type" => "technical_subject" "field_translit" => "fizika" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_class" => Illuminate\Database\Eloquent\Collection {#1036 #items: array:1 [ 0 => App\Models\Term {#1037 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 5457 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "8" "field_cases" => array:6 [ …6] "field_translit" => "vosmoj" ] #original: array:6 [ "id" => 5457 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "8" "field_cases" => array:6 [ …6] "field_translit" => "vosmoj" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_publisher" => Illuminate\Database\Eloquent\Collection {#1038 #items: array:1 [ 0 => App\Models\Term {#1039 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 5153 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Просвещение" "field_cases" => null "field_translit" => "prosveschenie" ] #original: array:6 [ "id" => 5153 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Просвещение" "field_cases" => null "field_translit" => "prosveschenie" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_author" => Illuminate\Database\Eloquent\Collection {#1040 #items: array:1 [ 0 => App\Models\Term {#1041 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:12 [ "id" => 6884 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Пёрышкин" "field_bio" => null "field_degree_rp" => null "field_foreign_lang_name" => null "field_foreign_lang_patronymic" => null "field_foreign_lang_surname" => null "field_name" => "И" "field_patronymic" => "М" "field_surname_rp" => null ] #original: array:12 [ "id" => 6884 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Пёрышкин" "field_bio" => null "field_degree_rp" => null "field_foreign_lang_name" => null "field_foreign_lang_patronymic" => null "field_foreign_lang_surname" => null "field_name" => "И" "field_patronymic" => "М" "field_surname_rp" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_author_foreign" => Illuminate\Database\Eloquent\Collection {#1042 #items: [] #escapeWhenCastingToString: false } "field_book_type" => Illuminate\Database\Eloquent\Collection {#1043 #items: array:1 [ 0 => App\Models\Term {#1044 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:10 [ "id" => 6671 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Учебник" "field_book_type_foreign" => null "field_cases" => array:6 [ …6] "field_plural_form" => null "field_short_name" => null "field_short_name_foreign" => null "field_translit" => "uchebnik" ] #original: array:10 [ "id" => 6671 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Учебник" "field_book_type_foreign" => null "field_cases" => array:6 [ …6] "field_plural_form" => null "field_short_name" => null "field_short_name_foreign" => null "field_translit" => "uchebnik" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_country" => Illuminate\Database\Eloquent\Collection {#1045 #items: array:1 [ 0 => App\Models\Term {#1046 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 9 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Россия" "field_cases" => array:6 [ …6] "field_translit" => "rossiya" ] #original: array:6 [ "id" => 9 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Россия" "field_cases" => array:6 [ …6] "field_translit" => "rossiya" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_city" => Illuminate\Database\Eloquent\Collection {#1047 #items: array:1 [ 0 => App\Models\Term {#1048 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 15 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Москва" "field_cases" => array:6 [ …6] "field_translit" => "moskva" ] #original: array:6 [ "id" => 15 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Москва" "field_cases" => array:6 [ …6] "field_translit" => "moskva" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_series" => Illuminate\Database\Eloquent\Collection {#1049 #items: [] #escapeWhenCastingToString: false } "field_umk" => Illuminate\Database\Eloquent\Collection {#1050 #items: [] #escapeWhenCastingToString: false } "field_level_of_education" => Illuminate\Database\Eloquent\Collection {#1051 #items: array:1 [ 0 => App\Models\Term {#1052 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 38 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "базовый" "field_cases" => array:6 [ …6] "field_translit" => "bazovyy" ] #original: array:6 [ "id" => 38 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "базовый" "field_cases" => array:6 [ …6] "field_translit" => "bazovyy" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_standart_of_education" => Illuminate\Database\Eloquent\Collection {#1053 #items: array:1 [ 0 => App\Models\Term {#1054 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:10 [ "id" => 25 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "ФГОС (новый)" "field_cases" => array:6 [ …6] "field_color" => "красный" "field_end_year" => "2027" "field_start_year" => "2023" "field_translit" => "fgos" "field_type" => "новый" ] #original: array:10 [ "id" => 25 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "ФГОС (новый)" "field_cases" => array:6 [ …6] "field_color" => "красный" "field_end_year" => "2027" "field_start_year" => "2023" "field_translit" => "fgos" "field_type" => "новый" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_publication_number" => "3" "field_publication_type" => Illuminate\Database\Eloquent\Collection {#1055 #items: array:1 [ 0 => App\Models\Term {#1056 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 34 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "переработанное" "field_cases" => array:6 [ …6] "field_translit" => "pererabotannoe" ] #original: array:6 [ "id" => 34 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "переработанное" "field_cases" => array:6 [ …6] "field_translit" => "pererabotannoe" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_under_the_edition" => Illuminate\Database\Eloquent\Collection {#1057 #items: [] #escapeWhenCastingToString: false } "field_under_the_edition_degree" => null "field_cover_description" => "с градусником" "field_publication_year" => "2023" "field_publication_year_until" => null "field_part" => "" "field_part_writing" => "" "field_second_foreign_language" => null "field_for_whom" => null "field_allowed" => "Допущено Министерством просвещения Российской Федерации" "field_reserve_field" => null "field_link_to_source" => null "field_tasks_count" => "706" "field_priority" => "2" "field_default_folder" => "/fizika_08/Peryshkin-u23/" "field_isbn" => "978-5-09-102555-2" "field_cover" => array:1 [ 0 => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" ] "field_cover_alts" => array:1 [ 0 => "" ] "field_covers" => array:1 [ 0 => array:4 [ "path" => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" "alt" => "" "width" => "1350" "height" => "1772" ] ] "field_popular_book" => null "field_recommended_books" => Illuminate\Database\Eloquent\Collection {#1058 #items: [] #escapeWhenCastingToString: false } "field_new_book" => Illuminate\Database\Eloquent\Collection {#1059 #items: [] #escapeWhenCastingToString: false } "field_old_book" => Illuminate\Database\Eloquent\Collection {#1060 #items: [] #escapeWhenCastingToString: false } "field_url" => "/8-klass/fizika/peryshkin-uchebnik" "field_cover_color" => Illuminate\Database\Eloquent\Collection {#1061 #items: array:1 [ 0 => App\Models\Term {#1062 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 45 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "белый" "field_cases" => array:6 [ …6] "field_translit" => "belyy" ] #original: array:6 [ "id" => 45 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "белый" "field_cases" => array:6 [ …6] "field_translit" => "belyy" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "breadcrumbs" => array:3 [ "class" => 379 "subject" => 556 "class_subject" => 492 ] ] #original: array:50 [ "id" => 51 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_tree_default_status" => "tasks" "field_pages_status" => null "field_subject" => Illuminate\Database\Eloquent\Collection {#1034} "field_class" => Illuminate\Database\Eloquent\Collection {#1036} "field_publisher" => Illuminate\Database\Eloquent\Collection {#1038} "field_author" => Illuminate\Database\Eloquent\Collection {#1040} "field_author_foreign" => Illuminate\Database\Eloquent\Collection {#1042} "field_book_type" => Illuminate\Database\Eloquent\Collection {#1043} "field_country" => Illuminate\Database\Eloquent\Collection {#1045} "field_city" => Illuminate\Database\Eloquent\Collection {#1047} "field_series" => Illuminate\Database\Eloquent\Collection {#1049} "field_umk" => Illuminate\Database\Eloquent\Collection {#1050} "field_level_of_education" => Illuminate\Database\Eloquent\Collection {#1051} "field_standart_of_education" => Illuminate\Database\Eloquent\Collection {#1053} "field_publication_number" => "3" "field_publication_type" => Illuminate\Database\Eloquent\Collection {#1055} "field_under_the_edition" => Illuminate\Database\Eloquent\Collection {#1057} "field_under_the_edition_degree" => null "field_cover_description" => "с градусником" "field_publication_year" => "2023" "field_publication_year_until" => null "field_part" => "" "field_part_writing" => "" "field_second_foreign_language" => null "field_for_whom" => null "field_allowed" => "Допущено Министерством просвещения Российской Федерации" "field_reserve_field" => null "field_link_to_source" => null "field_tasks_count" => "706" "field_priority" => "2" "field_default_folder" => "/fizika_08/Peryshkin-u23/" "field_isbn" => "978-5-09-102555-2" "field_cover" => array:1 [ 0 => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" ] "field_cover_alts" => array:1 [ 0 => "" ] "field_covers" => array:1 [ 0 => array:4 [ "path" => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" "alt" => "" "width" => "1350" "height" => "1772" ] ] "field_popular_book" => null "field_recommended_books" => Illuminate\Database\Eloquent\Collection {#1058} "field_new_book" => Illuminate\Database\Eloquent\Collection {#1059} "field_old_book" => Illuminate\Database\Eloquent\Collection {#1060} "field_url" => "/8-klass/fizika/peryshkin-uchebnik" "field_cover_color" => Illuminate\Database\Eloquent\Collection {#1061} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "breadcrumbs" => array:3 [ "class" => 379 "subject" => 556 "class_subject" => 492 ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "branch_parent" => Illuminate\Database\Eloquent\Collection {#1063 #items: [] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 598563 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Тепловые явления" "field_branch_order" => "1" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#333} "field_page_start" => "3" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1030} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1063} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "parent_branches" => Illuminate\Database\Eloquent\Collection {#1064 #items: array:3 [ 0 => App\Models\Branch {#1023} 1 => App\Models\Branch {#1065 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598635 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Влажность воздуха. Способы определения влажности воздуха" "field_branch_order" => "20" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1066 #items: array:1 [ 0 => App\Models\Term {#1067 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:7 [ "id" => 32 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Параграф" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => "§" ] #original: array:7 [ "id" => 32 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Параграф" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => "§" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_page_start" => "73" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1068 #items: array:1 [ 0 => App\Models\Book {#1032} ] #escapeWhenCastingToString: false } "branch_parent" => Illuminate\Database\Eloquent\Collection {#1069 #items: array:1 [ 0 => App\Models\Branch {#1070 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598563 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Тепловые явления" "field_branch_order" => "1" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1071 …2} "field_page_start" => "3" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1072 …2} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1073 …2} ] #original: array:24 [ "id" => 598563 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Тепловые явления" "field_branch_order" => "1" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1071 …2} "field_page_start" => "3" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1072 …2} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1073 …2} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 598635 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Влажность воздуха. Способы определения влажности воздуха" "field_branch_order" => "20" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1066} "field_page_start" => "73" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1068} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1069} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 2 => App\Models\Branch {#1074 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598636 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Вопросы после параграфа" "field_branch_order" => null "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1075 #items: [] #escapeWhenCastingToString: false } "field_page_start" => "77" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1076 #items: array:1 [ 0 => App\Models\Book {#1032} ] #escapeWhenCastingToString: false } "branch_parent" => Illuminate\Database\Eloquent\Collection {#1077 #items: array:1 [ 0 => App\Models\Branch {#1078 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598635 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Влажность воздуха. Способы определения влажности воздуха" "field_branch_order" => "20" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1079 …2} "field_page_start" => "73" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1080 …2} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1081 …2} ] #original: array:24 [ "id" => 598635 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Влажность воздуха. Способы определения влажности воздуха" "field_branch_order" => "20" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1079 …2} "field_page_start" => "73" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1080 …2} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1081 …2} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 598636 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Вопросы после параграфа" "field_branch_order" => null "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1075} "field_page_start" => "77" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1076} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1077} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "content" => Illuminate\Database\Eloquent\Collection {#1117 #items: array:5 [ 0 => App\Models\Element {#1118 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:7 [ "id" => 745433 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1119 #items: array:1 [ 0 => App\Models\Edition {#1120 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1636 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Условие" "field_order" => "1" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1121 …2} "field_content_type" => "free" "field_content_mode" => "text, image" "field_page_content_mode" => "image" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Автор" "field_moderator" => "stas" "field_edition_type" => "statement" "field_root_dir" => "0-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1123 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1124 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1125 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1636 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Условие" "field_order" => "1" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1121 …2} "field_content_type" => "free" "field_content_mode" => "text, image" "field_page_content_mode" => "image" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Автор" "field_moderator" => "stas" "field_edition_type" => "statement" "field_root_dir" => "0-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1123 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1124 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1125 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599000" "type" => "task" ] "text" => "<p> <b>4</b>. С помощью каких приборов измеряют влажность воздуха? </p>" "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "626" "height" => 73 "path" => "/media/fizika_08/Peryshkin-u23/0-20-1/4-1.webp?ts=1738080867" ] ] ] #original: array:7 [ "id" => 745433 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1119} "task" => array:2 [ "refs" => "599000" "type" => "task" ] "text" => "<p> <b>4</b>. С помощью каких приборов измеряют влажность воздуха? </p>" "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "626" "height" => 73 "path" => "/media/fizika_08/Peryshkin-u23/0-20-1/4-1.webp?ts=1738080867" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 1 => App\Models\Element {#1126 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 745600 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1127 #items: array:1 [ 0 => App\Models\Edition {#1128 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1637 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 1" "field_order" => "2" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1129 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Колесникович" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "1-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1131 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1132 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1133 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1637 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 1" "field_order" => "2" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1129 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Колесникович" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "1-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1131 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1132 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1133 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599000" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.jpg" "alt" => null "width" => "1183" "height" => 270 "path" => "/media/fizika_08/Peryshkin-u23/1-20-1/4-1.webp?ts=1738080900" ] ] ] #original: array:6 [ "id" => 745600 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1127} "task" => array:2 [ "refs" => "599000" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.jpg" "alt" => null "width" => "1183" "height" => 270 "path" => "/media/fizika_08/Peryshkin-u23/1-20-1/4-1.webp?ts=1738080900" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 2 => App\Models\Element {#1134 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 746620 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1135 #items: array:1 [ 0 => App\Models\Edition {#1136 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1638 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 2" "field_order" => "3" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1137 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "3-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1139 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1140 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1141 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1638 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 2" "field_order" => "3" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1137 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "3-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1139 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1140 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1141 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599000" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "700" "height" => 375 "path" => "/media/fizika_08/Peryshkin-u23/3-20-1/4-1.webp?ts=1738080948" ] ] ] #original: array:6 [ "id" => 746620 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1135} "task" => array:2 [ "refs" => "599000" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "700" "height" => 375 "path" => "/media/fizika_08/Peryshkin-u23/3-20-1/4-1.webp?ts=1738080948" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 3 => App\Models\Element {#1142 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 746961 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1143 #items: array:1 [ 0 => App\Models\Edition {#1144 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1639 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 3" "field_order" => "4" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1145 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "2-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1147 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1148 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1149 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1639 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 3" "field_order" => "4" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1145 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "2-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1147 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1148 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1149 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599000" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "793" "height" => 125 "path" => "/media/fizika_08/Peryshkin-u23/2-20-1/4-1.webp?ts=1738081013" ] ] ] #original: array:6 [ "id" => 746961 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1143} "task" => array:2 [ "refs" => "599000" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "793" "height" => 125 "path" => "/media/fizika_08/Peryshkin-u23/2-20-1/4-1.webp?ts=1738081013" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 4 => App\Models\Element {#1150 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 1466805 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1151 #items: array:1 [ 0 => App\Models\Edition {#1152 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 5406 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 4" "field_order" => "5" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1153 …2} "field_content_type" => "free" "field_content_mode" => "text" "field_page_content_mode" => "" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Gemini 2.5 Pro" "field_moderator" => "tolik" "field_edition_type" => "solution" "field_root_dir" => "4-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1155 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1156 …2} "field_process_formula" => "katex" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1157 …2} "field_content_source" => null ] #original: array:21 [ "id" => 5406 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 4" "field_order" => "5" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1153 …2} "field_content_type" => "free" "field_content_mode" => "text" "field_page_content_mode" => "" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Gemini 2.5 Pro" "field_moderator" => "tolik" "field_edition_type" => "solution" "field_root_dir" => "4-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1155 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1156 …2} "field_process_formula" => "katex" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1157 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599000" "type" => "task" ] "text" => "<p><strong>Решение</strong></p><p>Влажность воздуха, то есть содержание в нём водяного пара, измеряют с помощью специальных приборов, которые называются гигрометрами. Существует несколько разновидностей гигрометров, различающихся по принципу действия.</p><p><strong>Психрометр</strong></p><p>Это один из наиболее распространенных и точных приборов для измерения относительной влажности воздуха. Психрометр состоит из двух термометров: «сухого» и «влажного». Резервуар «влажного» термометра обернут тканью, смоченной водой. Вода, испаряясь с поверхности ткани, охлаждает термометр. Скорость испарения, а следовательно, и степень охлаждения, зависит от влажности окружающего воздуха: чем суше воздух, тем интенсивнее испарение и тем ниже показания «влажного» термометра. Относительную влажность определяют по разности температур сухого и влажного термометров с помощью специальной психометрической таблицы или диаграммы. Самый распространенный тип — психрометр Августа.</p><p><strong>Волосной гигрометр</strong></p><p>Принцип действия этого прибора основан на свойстве обезжиренного человеческого или конского волоса изменять свою длину при изменении влажности воздуха. При увеличении влажности волос удлиняется, а при уменьшении — укорачивается. Это изменение длины передается через систему рычагов на стрелку, которая движется по шкале, проградуированной в процентах относительной влажности. Такие гигрометры просты по устройству, но менее точны, чем психрометры, и требуют периодической калибровки.</p><p><strong>Пленочный гигрометр</strong></p><p>Работает по тому же принципу, что и волосной, но в качестве чувствительного элемента используется специальная органическая пленка. Пленка растягивается при повышении влажности и сжимается при её понижении, приводя в движение стрелку прибора.</p><p><strong>Электронные (цифровые) гигрометры</strong></p><p>Современные приборы, которые измеряют влажность, регистрируя изменения электрических параметров чувствительного элемента под воздействием влаги. Существуют емкостные и резистивные типы. <em>Емкостные гигрометры</em> используют конденсатор, диэлектриком в котором служит гигроскопичный полимер. При поглощении водяных паров диэлектрическая проницаемость полимера изменяется, что ведет к изменению емкости конденсатора. <em>Резистивные гигрометры</em> измеряют изменение электрического сопротивления материала (например, соли или проводящего полимера) при абсорбции влаги. Эти приборы обеспечивают высокую точность, быстродействие и часто совмещаются с термометрами (термогигрометры), часами и другими функциями в бытовых и промышленных устройствах.</p><p><strong>Конденсационный гигрометр (гигрометр точки росы)</strong></p><p>Определяет абсолютную влажность воздуха путем измерения температуры точки росы. Точка росы — это температура, до которой должен охладиться воздух, чтобы содержащийся в нем водяной пар достиг состояния насыщения и начал конденсироваться. Прибор состоит из охлаждаемого зеркальца, источника света и фотодетектора. Зеркальце охлаждают до тех пор, пока на нем не появится конденсат (роса), что фиксируется фотодетектором по изменению отраженного света. Температура зеркальца в этот момент и есть точка росы. Зная точку росы и температуру воздуха, можно точно рассчитать относительную влажность. Это один из самых точных методов измерения.</p><p><strong>Ответ:</strong> Влажность воздуха измеряют с помощью приборов, называемых гигрометрами. Основные типы гигрометров: психрометр, волосной гигрометр, пленочный гигрометр, электронные (цифровые) гигрометры и конденсационные гигрометры.</p>" ] #original: array:6 [ "id" => 1466805 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1151} "task" => array:2 [ "refs" => "599000" "type" => "task" ] "text" => "<p><strong>Решение</strong></p><p>Влажность воздуха, то есть содержание в нём водяного пара, измеряют с помощью специальных приборов, которые называются гигрометрами. Существует несколько разновидностей гигрометров, различающихся по принципу действия.</p><p><strong>Психрометр</strong></p><p>Это один из наиболее распространенных и точных приборов для измерения относительной влажности воздуха. Психрометр состоит из двух термометров: «сухого» и «влажного». Резервуар «влажного» термометра обернут тканью, смоченной водой. Вода, испаряясь с поверхности ткани, охлаждает термометр. Скорость испарения, а следовательно, и степень охлаждения, зависит от влажности окружающего воздуха: чем суше воздух, тем интенсивнее испарение и тем ниже показания «влажного» термометра. Относительную влажность определяют по разности температур сухого и влажного термометров с помощью специальной психометрической таблицы или диаграммы. Самый распространенный тип — психрометр Августа.</p><p><strong>Волосной гигрометр</strong></p><p>Принцип действия этого прибора основан на свойстве обезжиренного человеческого или конского волоса изменять свою длину при изменении влажности воздуха. При увеличении влажности волос удлиняется, а при уменьшении — укорачивается. Это изменение длины передается через систему рычагов на стрелку, которая движется по шкале, проградуированной в процентах относительной влажности. Такие гигрометры просты по устройству, но менее точны, чем психрометры, и требуют периодической калибровки.</p><p><strong>Пленочный гигрометр</strong></p><p>Работает по тому же принципу, что и волосной, но в качестве чувствительного элемента используется специальная органическая пленка. Пленка растягивается при повышении влажности и сжимается при её понижении, приводя в движение стрелку прибора.</p><p><strong>Электронные (цифровые) гигрометры</strong></p><p>Современные приборы, которые измеряют влажность, регистрируя изменения электрических параметров чувствительного элемента под воздействием влаги. Существуют емкостные и резистивные типы. <em>Емкостные гигрометры</em> используют конденсатор, диэлектриком в котором служит гигроскопичный полимер. При поглощении водяных паров диэлектрическая проницаемость полимера изменяется, что ведет к изменению емкости конденсатора. <em>Резистивные гигрометры</em> измеряют изменение электрического сопротивления материала (например, соли или проводящего полимера) при абсорбции влаги. Эти приборы обеспечивают высокую точность, быстродействие и часто совмещаются с термометрами (термогигрометры), часами и другими функциями в бытовых и промышленных устройствах.</p><p><strong>Конденсационный гигрометр (гигрометр точки росы)</strong></p><p>Определяет абсолютную влажность воздуха путем измерения температуры точки росы. Точка росы — это температура, до которой должен охладиться воздух, чтобы содержащийся в нем водяной пар достиг состояния насыщения и начал конденсироваться. Прибор состоит из охлаждаемого зеркальца, источника света и фотодетектора. Зеркальце охлаждают до тех пор, пока на нем не появится конденсат (роса), что фиксируется фотодетектором по изменению отраженного света. Температура зеркальца в этот момент и есть точка росы. Зная точку росы и температуру воздуха, можно точно рассчитать относительную влажность. Это один из самых точных методов измерения.</p><p><strong>Ответ:</strong> Влажность воздуха измеряют с помощью приборов, называемых гигрометрами. Основные типы гигрометров: психрометр, волосной гигрометр, пленочный гигрометр, электронные (цифровые) гигрометры и конденсационные гигрометры.</p>" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "next" => array:2 [ "refs" => "599001" "type" => "task" ] "previous" => array:2 [ "refs" => "598999" "type" => "task" ] "book" => Illuminate\Database\Eloquent\Collection {#1158 #items: array:1 [ 0 => App\Models\Book {#1032} ] #escapeWhenCastingToString: false } "page" => Illuminate\Database\Eloquent\Collection {#1454 #items: array:1 [ 0 => App\Models\BookPage {#1162 #connection: "mysql" #table: "book_pages" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 991441 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "77" "field_url" => "/8-klass/fizika/peryshkin-uchebnik/page-77" "field_display_title" => "77" "field_folder" => "1" "field_image_name" => "77" "field_branch_parent" => Illuminate\Database\Eloquent\Collection {#1166 #items: [] #escapeWhenCastingToString: false } "field_weight" => "0" "field_book_parent" => Illuminate\Database\Eloquent\Collection {#1165 #items: array:1 [ 0 => App\Models\Book {#1167 #connection: "mysql" #table: "books" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:50 [ "id" => 51 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_tree_default_status" => "tasks" "field_pages_status" => null "field_subject" => Illuminate\Database\Eloquent\Collection {#1168 …2} "field_class" => Illuminate\Database\Eloquent\Collection {#1170 …2} "field_publisher" => Illuminate\Database\Eloquent\Collection {#1172 …2} "field_author" => Illuminate\Database\Eloquent\Collection {#1174 …2} "field_author_foreign" => Illuminate\Database\Eloquent\Collection {#1176 …2} "field_book_type" => Illuminate\Database\Eloquent\Collection {#1177 …2} "field_country" => Illuminate\Database\Eloquent\Collection {#1179 …2} "field_city" => Illuminate\Database\Eloquent\Collection {#1181 …2} "field_series" => Illuminate\Database\Eloquent\Collection {#1183 …2} "field_umk" => Illuminate\Database\Eloquent\Collection {#1184 …2} "field_level_of_education" => Illuminate\Database\Eloquent\Collection {#1185 …2} "field_standart_of_education" => Illuminate\Database\Eloquent\Collection {#1187 …2} "field_publication_number" => "3" "field_publication_type" => Illuminate\Database\Eloquent\Collection {#1189 …2} "field_under_the_edition" => Illuminate\Database\Eloquent\Collection {#1191 …2} "field_under_the_edition_degree" => null "field_cover_description" => "с градусником" "field_publication_year" => "2023" "field_publication_year_until" => null "field_part" => "" "field_part_writing" => "" "field_second_foreign_language" => null "field_for_whom" => null "field_allowed" => "Допущено Министерством просвещения Российской Федерации" "field_reserve_field" => null "field_link_to_source" => null "field_tasks_count" => "706" "field_priority" => "2" "field_default_folder" => "/fizika_08/Peryshkin-u23/" "field_isbn" => "978-5-09-102555-2" "field_cover" => array:1 [ …1] "field_cover_alts" => array:1 [ …1] "field_covers" => array:1 [ …1] "field_popular_book" => null "field_recommended_books" => Illuminate\Database\Eloquent\Collection {#1192 …2} "field_new_book" => Illuminate\Database\Eloquent\Collection {#1193 …2} "field_old_book" => Illuminate\Database\Eloquent\Collection {#1194 …2} "field_url" => "/8-klass/fizika/peryshkin-uchebnik" "field_cover_color" => Illuminate\Database\Eloquent\Collection {#1195 …2} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "breadcrumbs" => array:3 [ …3] ] #original: array:50 [ "id" => 51 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_tree_default_status" => "tasks" "field_pages_status" => null "field_subject" => Illuminate\Database\Eloquent\Collection {#1168 …2} "field_class" => Illuminate\Database\Eloquent\Collection {#1170 …2} "field_publisher" => Illuminate\Database\Eloquent\Collection {#1172 …2} "field_author" => Illuminate\Database\Eloquent\Collection {#1174 …2} "field_author_foreign" => Illuminate\Database\Eloquent\Collection {#1176 …2} "field_book_type" => Illuminate\Database\Eloquent\Collection {#1177 …2} "field_country" => Illuminate\Database\Eloquent\Collection {#1179 …2} "field_city" => Illuminate\Database\Eloquent\Collection {#1181 …2} "field_series" => Illuminate\Database\Eloquent\Collection {#1183 …2} "field_umk" => Illuminate\Database\Eloquent\Collection {#1184 …2} "field_level_of_education" => Illuminate\Database\Eloquent\Collection {#1185 …2} "field_standart_of_education" => Illuminate\Database\Eloquent\Collection {#1187 …2} "field_publication_number" => "3" "field_publication_type" => Illuminate\Database\Eloquent\Collection {#1189 …2} "field_under_the_edition" => Illuminate\Database\Eloquent\Collection {#1191 …2} "field_under_the_edition_degree" => null "field_cover_description" => "с градусником" "field_publication_year" => "2023" "field_publication_year_until" => null "field_part" => "" "field_part_writing" => "" "field_second_foreign_language" => null "field_for_whom" => null "field_allowed" => "Допущено Министерством просвещения Российской Федерации" "field_reserve_field" => null "field_link_to_source" => null "field_tasks_count" => "706" "field_priority" => "2" "field_default_folder" => "/fizika_08/Peryshkin-u23/" "field_isbn" => "978-5-09-102555-2" "field_cover" => array:1 [ …1] "field_cover_alts" => array:1 [ …1] "field_covers" => array:1 [ …1] "field_popular_book" => null "field_recommended_books" => Illuminate\Database\Eloquent\Collection {#1192 …2} "field_new_book" => Illuminate\Database\Eloquent\Collection {#1193 …2} "field_old_book" => Illuminate\Database\Eloquent\Collection {#1194 …2} "field_url" => "/8-klass/fizika/peryshkin-uchebnik" "field_cover_color" => Illuminate\Database\Eloquent\Collection {#1195 …2} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "breadcrumbs" => array:3 [ …3] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "edition_groups" => Illuminate\Database\Eloquent\Collection {#1197 #items: [] #escapeWhenCastingToString: false } "content" => Illuminate\Database\Eloquent\Collection {#1198 #items: array:1 [ 0 => App\Models\Element {#1199 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 1173101 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1200 …2} "book_page" => array:2 [ …2] "img" => array:1 [ …1] ] #original: array:6 [ "id" => 1173101 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1200 …2} "book_page" => array:2 [ …2] "img" => array:1 [ …1] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "next" => array:2 [ "refs" => "991442" "type" => "book_page" ] "previous" => array:2 [ "refs" => "991440" "type" => "book_page" ] "tasks" => Illuminate\Database\Eloquent\Collection {#1207 #items: array:6 [ 0 => App\Models\Task {#1208 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598997 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "77" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/20-1-1" "field_display_title" => "1" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#1209 …2} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1211 …2} "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#1212 …2} "parent_branches" => Illuminate\Database\Eloquent\Collection {#1248 …2} "content" => Illuminate\Database\Eloquent\Collection {#1333 …2} "next" => array:2 [ …2] "previous" => array:2 [ …2] "book" => Illuminate\Database\Eloquent\Collection {#1360 …2} "page" => array:2 [ …2] ] #original: array:24 [ "id" => 598997 …23 ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 1 => App\Models\Task {#1361 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 2 => App\Models\Task {#1384 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 3 => App\Models\Task {#1401 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 4 => App\Models\Task {#1418 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 5 => App\Models\Task {#1435 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } ] #original: array:21 [ "id" => 991441 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "77" "field_url" => "/8-klass/fizika/peryshkin-uchebnik/page-77" "field_display_title" => "77" "field_folder" => "1" "field_image_name" => "77" "field_branch_parent" => Illuminate\Database\Eloquent\Collection {#1166} "field_weight" => "0" "field_book_parent" => Illuminate\Database\Eloquent\Collection {#1165} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "edition_groups" => Illuminate\Database\Eloquent\Collection {#1197} "content" => Illuminate\Database\Eloquent\Collection {#1198} "next" => array:2 [ "refs" => "991442" "type" => "book_page" ] "previous" => array:2 [ "refs" => "991440" "type" => "book_page" ] "tasks" => Illuminate\Database\Eloquent\Collection {#1207} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 599000 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "77" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/20-1-4" "field_display_title" => "4" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#331} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1026} "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#342} "parent_branches" => Illuminate\Database\Eloquent\Collection {#1064} "content" => Illuminate\Database\Eloquent\Collection {#1117} "next" => array:2 [ "refs" => "599001" "type" => "task" ] "previous" => array:2 [ "refs" => "598999" "type" => "task" ] "book" => Illuminate\Database\Eloquent\Collection {#1158} "page" => array:2 [ "refs" => "991441" "type" => "book_page" ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] }
№4 (с. 77)
Условие. №4 (с. 77)
скриншот условия
4. С помощью каких приборов измеряют влажность воздуха?
Решение 1. №4 (с. 77)

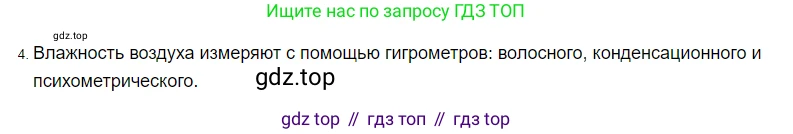

Решение 2. №4 (с. 77)

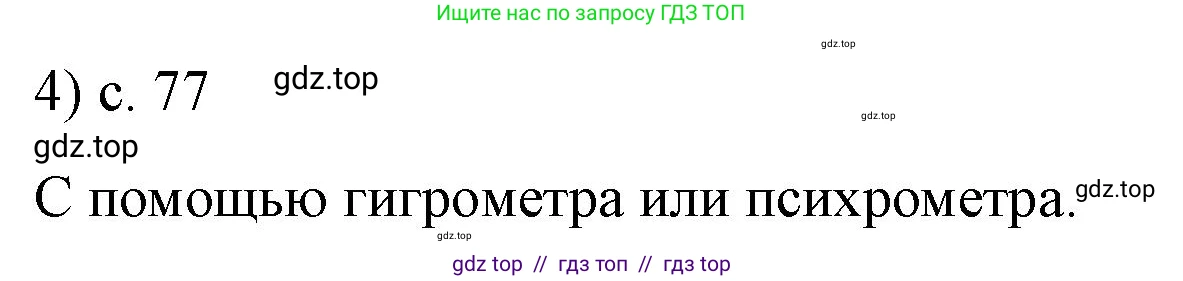

Решение 3. №4 (с. 77)

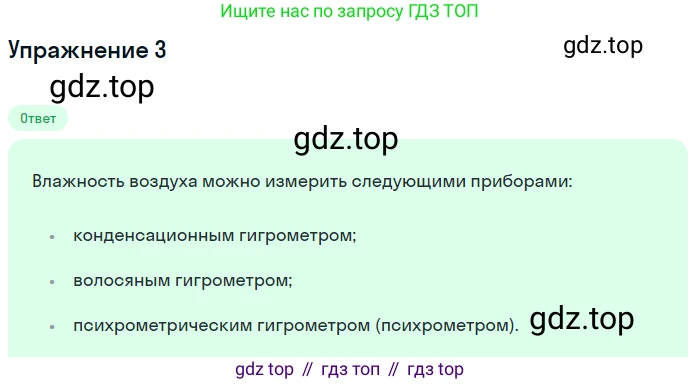

Решение 4. №4 (с. 77)
Решение
Влажность воздуха, то есть содержание в нём водяного пара, измеряют с помощью специальных приборов, которые называются гигрометрами. Существует несколько разновидностей гигрометров, различающихся по принципу действия.
Психрометр
Это один из наиболее распространенных и точных приборов для измерения относительной влажности воздуха. Психрометр состоит из двух термометров: «сухого» и «влажного». Резервуар «влажного» термометра обернут тканью, смоченной водой. Вода, испаряясь с поверхности ткани, охлаждает термометр. Скорость испарения, а следовательно, и степень охлаждения, зависит от влажности окружающего воздуха: чем суше воздух, тем интенсивнее испарение и тем ниже показания «влажного» термометра. Относительную влажность определяют по разности температур сухого и влажного термометров с помощью специальной психометрической таблицы или диаграммы. Самый распространенный тип — психрометр Августа.
Волосной гигрометр
Принцип действия этого прибора основан на свойстве обезжиренного человеческого или конского волоса изменять свою длину при изменении влажности воздуха. При увеличении влажности волос удлиняется, а при уменьшении — укорачивается. Это изменение длины передается через систему рычагов на стрелку, которая движется по шкале, проградуированной в процентах относительной влажности. Такие гигрометры просты по устройству, но менее точны, чем психрометры, и требуют периодической калибровки.
Пленочный гигрометр
Работает по тому же принципу, что и волосной, но в качестве чувствительного элемента используется специальная органическая пленка. Пленка растягивается при повышении влажности и сжимается при её понижении, приводя в движение стрелку прибора.
Электронные (цифровые) гигрометры
Современные приборы, которые измеряют влажность, регистрируя изменения электрических параметров чувствительного элемента под воздействием влаги. Существуют емкостные и резистивные типы. Емкостные гигрометры используют конденсатор, диэлектриком в котором служит гигроскопичный полимер. При поглощении водяных паров диэлектрическая проницаемость полимера изменяется, что ведет к изменению емкости конденсатора. Резистивные гигрометры измеряют изменение электрического сопротивления материала (например, соли или проводящего полимера) при абсорбции влаги. Эти приборы обеспечивают высокую точность, быстродействие и часто совмещаются с термометрами (термогигрометры), часами и другими функциями в бытовых и промышленных устройствах.
Конденсационный гигрометр (гигрометр точки росы)
Определяет абсолютную влажность воздуха путем измерения температуры точки росы. Точка росы — это температура, до которой должен охладиться воздух, чтобы содержащийся в нем водяной пар достиг состояния насыщения и начал конденсироваться. Прибор состоит из охлаждаемого зеркальца, источника света и фотодетектора. Зеркальце охлаждают до тех пор, пока на нем не появится конденсат (роса), что фиксируется фотодетектором по изменению отраженного света. Температура зеркальца в этот момент и есть точка росы. Зная точку росы и температуру воздуха, можно точно рассчитать относительную влажность. Это один из самых точных методов измерения.
Ответ: Влажность воздуха измеряют с помощью приборов, называемых гигрометрами. Основные типы гигрометров: психрометр, волосной гигрометр, пленочный гигрометр, электронные (цифровые) гигрометры и конденсационные гигрометры.
