Глава 1. Тепловые явления. Параграф 24. Двигатель внутреннего сгорания. Вопросы после параграфа - номер 4, страница 92.
App\Models\Task {#1030 // resources/views/models/task/default.blade.php #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 599052 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "92" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/24-1-4" "field_display_title" => "4" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#1037 #items: array:1 [ 0 => App\Models\Term {#1036 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 26 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "номер" "field_cases" => array:6 [ "field_accusative_case" => "номер" "field_creative_case" => "номером" "field_dative_case" => "номеру" "field_genitive_case" => "номера" "field_nominative_case" => "номер" "field_prepositional_case" => "номере" ] "field_short_name" => "№" ] #original: array:6 [ "id" => 26 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "номер" "field_cases" => array:6 [ "field_accusative_case" => "номер" "field_creative_case" => "номером" "field_dative_case" => "номеру" "field_genitive_case" => "номера" "field_nominative_case" => "номер" "field_prepositional_case" => "номере" ] "field_short_name" => "№" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1035 #items: [] #escapeWhenCastingToString: false } "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#1074 #items: array:1 [ 0 => App\Models\Branch {#1034 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598563 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Тепловые явления" "field_branch_order" => "1" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1039 #items: array:1 [ 0 => App\Models\Term {#1038 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:7 [ "id" => 29 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Глава" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => null ] #original: array:7 [ "id" => 29 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Глава" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_page_start" => "3" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1040 #items: array:1 [ 0 => App\Models\Book {#1041 #connection: "mysql" #table: "books" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:50 [ "id" => 51 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_tree_default_status" => "tasks" "field_pages_status" => null "field_subject" => Illuminate\Database\Eloquent\Collection {#1042 …2} "field_class" => Illuminate\Database\Eloquent\Collection {#1044 …2} "field_publisher" => Illuminate\Database\Eloquent\Collection {#1046 …2} "field_author" => Illuminate\Database\Eloquent\Collection {#1048 …2} "field_author_foreign" => Illuminate\Database\Eloquent\Collection {#1050 …2} "field_book_type" => Illuminate\Database\Eloquent\Collection {#1051 …2} "field_country" => Illuminate\Database\Eloquent\Collection {#1053 …2} "field_city" => Illuminate\Database\Eloquent\Collection {#1055 …2} "field_series" => Illuminate\Database\Eloquent\Collection {#1057 …2} "field_umk" => Illuminate\Database\Eloquent\Collection {#1058 …2} "field_level_of_education" => Illuminate\Database\Eloquent\Collection {#1059 …2} "field_standart_of_education" => Illuminate\Database\Eloquent\Collection {#1061 …2} "field_publication_number" => "3" "field_publication_type" => Illuminate\Database\Eloquent\Collection {#1063 …2} "field_under_the_edition" => Illuminate\Database\Eloquent\Collection {#1065 …2} "field_under_the_edition_degree" => null "field_cover_description" => "с градусником" "field_publication_year" => "2023" "field_publication_year_until" => null "field_part" => "" "field_part_writing" => "" "field_second_foreign_language" => null "field_for_whom" => null "field_allowed" => "Допущено Министерством просвещения Российской Федерации" "field_reserve_field" => null "field_link_to_source" => null "field_tasks_count" => "706" "field_priority" => "2" "field_default_folder" => "/fizika_08/Peryshkin-u23/" "field_isbn" => "978-5-09-102555-2" "field_cover" => array:1 [ …1] "field_cover_alts" => array:1 [ …1] "field_covers" => array:1 [ …1] "field_popular_book" => null "field_recommended_books" => Illuminate\Database\Eloquent\Collection {#1066 …2} "field_new_book" => Illuminate\Database\Eloquent\Collection {#1067 …2} "field_old_book" => Illuminate\Database\Eloquent\Collection {#1068 …2} "field_url" => "/8-klass/fizika/peryshkin-uchebnik" "field_cover_color" => Illuminate\Database\Eloquent\Collection {#1069 …2} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "breadcrumbs" => array:3 [ …3] ] #original: array:50 [ "id" => 51 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_tree_default_status" => "tasks" "field_pages_status" => null "field_subject" => Illuminate\Database\Eloquent\Collection {#1042 …2} "field_class" => Illuminate\Database\Eloquent\Collection {#1044 …2} "field_publisher" => Illuminate\Database\Eloquent\Collection {#1046 …2} "field_author" => Illuminate\Database\Eloquent\Collection {#1048 …2} "field_author_foreign" => Illuminate\Database\Eloquent\Collection {#1050 …2} "field_book_type" => Illuminate\Database\Eloquent\Collection {#1051 …2} "field_country" => Illuminate\Database\Eloquent\Collection {#1053 …2} "field_city" => Illuminate\Database\Eloquent\Collection {#1055 …2} "field_series" => Illuminate\Database\Eloquent\Collection {#1057 …2} "field_umk" => Illuminate\Database\Eloquent\Collection {#1058 …2} "field_level_of_education" => Illuminate\Database\Eloquent\Collection {#1059 …2} "field_standart_of_education" => Illuminate\Database\Eloquent\Collection {#1061 …2} "field_publication_number" => "3" "field_publication_type" => Illuminate\Database\Eloquent\Collection {#1063 …2} "field_under_the_edition" => Illuminate\Database\Eloquent\Collection {#1065 …2} "field_under_the_edition_degree" => null "field_cover_description" => "с градусником" "field_publication_year" => "2023" "field_publication_year_until" => null "field_part" => "" "field_part_writing" => "" "field_second_foreign_language" => null "field_for_whom" => null "field_allowed" => "Допущено Министерством просвещения Российской Федерации" "field_reserve_field" => null "field_link_to_source" => null "field_tasks_count" => "706" "field_priority" => "2" "field_default_folder" => "/fizika_08/Peryshkin-u23/" "field_isbn" => "978-5-09-102555-2" "field_cover" => array:1 [ …1] "field_cover_alts" => array:1 [ …1] "field_covers" => array:1 [ …1] "field_popular_book" => null "field_recommended_books" => Illuminate\Database\Eloquent\Collection {#1066 …2} "field_new_book" => Illuminate\Database\Eloquent\Collection {#1067 …2} "field_old_book" => Illuminate\Database\Eloquent\Collection {#1068 …2} "field_url" => "/8-klass/fizika/peryshkin-uchebnik" "field_cover_color" => Illuminate\Database\Eloquent\Collection {#1069 …2} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "breadcrumbs" => array:3 [ …3] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "branch_parent" => Illuminate\Database\Eloquent\Collection {#1071 #items: [] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 598563 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Тепловые явления" "field_branch_order" => "1" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1039} "field_page_start" => "3" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1040} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1071} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "parent_branches" => Illuminate\Database\Eloquent\Collection {#1109 #items: array:3 [ 0 => App\Models\Branch {#1119 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598563 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Тепловые явления" "field_branch_order" => "1" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1123 #items: array:1 [ 0 => App\Models\Term {#1120 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:7 [ "id" => 29 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Глава" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => null ] #original: array:7 [ "id" => 29 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Глава" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_page_start" => "3" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1154 #items: array:1 [ 0 => App\Models\Book {#1122 #connection: "mysql" #table: "books" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:50 [ "id" => 51 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_tree_default_status" => "tasks" "field_pages_status" => null "field_subject" => Illuminate\Database\Eloquent\Collection {#1124 #items: array:1 [ 0 => App\Models\Term {#1121 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:10 [ "id" => 6493 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Физика" "field_abbreviated_name" => null "field_cases" => array:6 [ …6] "field_foreign_lang_name" => null "field_short_name" => null "field_subject_type" => "technical_subject" "field_translit" => "fizika" ] #original: array:10 [ "id" => 6493 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Физика" "field_abbreviated_name" => null "field_cases" => array:6 [ …6] "field_foreign_lang_name" => null "field_short_name" => null "field_subject_type" => "technical_subject" "field_translit" => "fizika" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_class" => Illuminate\Database\Eloquent\Collection {#1125 #items: array:1 [ 0 => App\Models\Term {#1126 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 5457 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "8" "field_cases" => array:6 [ …6] "field_translit" => "vosmoj" ] #original: array:6 [ "id" => 5457 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "8" "field_cases" => array:6 [ …6] "field_translit" => "vosmoj" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_publisher" => Illuminate\Database\Eloquent\Collection {#1127 #items: array:1 [ 0 => App\Models\Term {#1128 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 5153 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Просвещение" "field_cases" => null "field_translit" => "prosveschenie" ] #original: array:6 [ "id" => 5153 …5 ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } "field_author" => Illuminate\Database\Eloquent\Collection {#1129 #items: array:1 [ 0 => App\Models\Term {#1130 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:12 [ …12] #original: array:12 [ …12] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } "field_author_foreign" => Illuminate\Database\Eloquent\Collection {#1131 #items: [] #escapeWhenCastingToString: false } "field_book_type" => Illuminate\Database\Eloquent\Collection {#1132 #items: array:1 [ 0 => App\Models\Term {#1133 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:10 [ …10] #original: array:10 [ …10] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } "field_country" => Illuminate\Database\Eloquent\Collection {#1134 #items: array:1 [ 0 => App\Models\Term {#1135 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ …6] #original: array:6 [ …6] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } "field_city" => Illuminate\Database\Eloquent\Collection {#1136 #items: array:1 [ 0 => App\Models\Term {#1137 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ …6] #original: array:6 [ …6] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } "field_series" => Illuminate\Database\Eloquent\Collection {#1138 #items: [] #escapeWhenCastingToString: false } "field_umk" => Illuminate\Database\Eloquent\Collection {#1139 #items: [] #escapeWhenCastingToString: false } "field_level_of_education" => Illuminate\Database\Eloquent\Collection {#1140 #items: array:1 [ 0 => App\Models\Term {#1141 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ …6] #original: array:6 [ …6] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } "field_standart_of_education" => Illuminate\Database\Eloquent\Collection {#1142 #items: array:1 [ 0 => App\Models\Term {#1143 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:10 [ …10] #original: array:10 [ …10] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } "field_publication_number" => "3" "field_publication_type" => Illuminate\Database\Eloquent\Collection {#1144 #items: array:1 [ 0 => App\Models\Term {#1145 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ …6] #original: array:6 [ …6] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } "field_under_the_edition" => Illuminate\Database\Eloquent\Collection {#1146 #items: [] #escapeWhenCastingToString: false } "field_under_the_edition_degree" => null "field_cover_description" => "с градусником" "field_publication_year" => "2023" "field_publication_year_until" => null "field_part" => "" "field_part_writing" => "" "field_second_foreign_language" => null "field_for_whom" => null "field_allowed" => "Допущено Министерством просвещения Российской Федерации" "field_reserve_field" => null "field_link_to_source" => null "field_tasks_count" => "706" "field_priority" => "2" "field_default_folder" => "/fizika_08/Peryshkin-u23/" "field_isbn" => "978-5-09-102555-2" "field_cover" => array:1 [ 0 => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" ] "field_cover_alts" => array:1 [ 0 => "" ] "field_covers" => array:1 [ 0 => array:4 [ "path" => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" "alt" => "" "width" => "1350" "height" => "1772" ] ] "field_popular_book" => null "field_recommended_books" => Illuminate\Database\Eloquent\Collection {#1147 #items: [] #escapeWhenCastingToString: false } "field_new_book" => Illuminate\Database\Eloquent\Collection {#1148 #items: [] #escapeWhenCastingToString: false } "field_old_book" => Illuminate\Database\Eloquent\Collection {#1149 #items: [] #escapeWhenCastingToString: false } "field_url" => "/8-klass/fizika/peryshkin-uchebnik" "field_cover_color" => Illuminate\Database\Eloquent\Collection {#1150 #items: array:1 [ 0 => App\Models\Term {#1151 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ …6] #original: array:6 [ …6] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "breadcrumbs" => array:3 [ "class" => 379 "subject" => 556 "class_subject" => 492 ] ] #original: array:50 [ "id" => 51 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_tree_default_status" => "tasks" "field_pages_status" => null "field_subject" => Illuminate\Database\Eloquent\Collection {#1124} "field_class" => Illuminate\Database\Eloquent\Collection {#1125} "field_publisher" => Illuminate\Database\Eloquent\Collection {#1127} "field_author" => Illuminate\Database\Eloquent\Collection {#1129} "field_author_foreign" => Illuminate\Database\Eloquent\Collection {#1131} "field_book_type" => Illuminate\Database\Eloquent\Collection {#1132} "field_country" => Illuminate\Database\Eloquent\Collection {#1134} "field_city" => Illuminate\Database\Eloquent\Collection {#1136} "field_series" => Illuminate\Database\Eloquent\Collection {#1138} "field_umk" => Illuminate\Database\Eloquent\Collection {#1139} "field_level_of_education" => Illuminate\Database\Eloquent\Collection {#1140} "field_standart_of_education" => Illuminate\Database\Eloquent\Collection {#1142} "field_publication_number" => "3" "field_publication_type" => Illuminate\Database\Eloquent\Collection {#1144} "field_under_the_edition" => Illuminate\Database\Eloquent\Collection {#1146} "field_under_the_edition_degree" => null "field_cover_description" => "с градусником" "field_publication_year" => "2023" "field_publication_year_until" => null "field_part" => "" "field_part_writing" => "" "field_second_foreign_language" => null "field_for_whom" => null "field_allowed" => "Допущено Министерством просвещения Российской Федерации" "field_reserve_field" => null "field_link_to_source" => null "field_tasks_count" => "706" "field_priority" => "2" "field_default_folder" => "/fizika_08/Peryshkin-u23/" "field_isbn" => "978-5-09-102555-2" "field_cover" => array:1 [ 0 => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" ] "field_cover_alts" => array:1 [ 0 => "" ] "field_covers" => array:1 [ 0 => array:4 [ "path" => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" "alt" => "" "width" => "1350" "height" => "1772" ] ] "field_popular_book" => null "field_recommended_books" => Illuminate\Database\Eloquent\Collection {#1147} "field_new_book" => Illuminate\Database\Eloquent\Collection {#1148} "field_old_book" => Illuminate\Database\Eloquent\Collection {#1149} "field_url" => "/8-klass/fizika/peryshkin-uchebnik" "field_cover_color" => Illuminate\Database\Eloquent\Collection {#1150} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "breadcrumbs" => array:3 [ "class" => 379 "subject" => 556 "class_subject" => 492 ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "branch_parent" => Illuminate\Database\Eloquent\Collection {#1152 #items: [] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 598563 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Тепловые явления" "field_branch_order" => "1" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1123} "field_page_start" => "3" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1154} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1152} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 1 => App\Models\Branch {#1153 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598652 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Двигатель внутреннего сгорания" "field_branch_order" => "24" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1158 #items: array:1 [ 0 => App\Models\Term {#1155 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:7 [ "id" => 32 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Параграф" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => "§" ] #original: array:7 [ "id" => 32 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Параграф" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => "§" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_page_start" => "89" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1157 #items: array:1 [ 0 => App\Models\Book {#1122} ] #escapeWhenCastingToString: false } "branch_parent" => Illuminate\Database\Eloquent\Collection {#1156 #items: array:1 [ 0 => App\Models\Branch {#1034} ] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 598652 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Двигатель внутреннего сгорания" "field_branch_order" => "24" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1158} "field_page_start" => "89" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1157} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1156} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 2 => App\Models\Branch {#1159 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598653 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Вопросы после параграфа" "field_branch_order" => null "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1160 #items: [] #escapeWhenCastingToString: false } "field_page_start" => "92" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1161 #items: array:1 [ 0 => App\Models\Book {#1122} ] #escapeWhenCastingToString: false } "branch_parent" => Illuminate\Database\Eloquent\Collection {#1170 #items: array:1 [ 0 => App\Models\Branch {#1169 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598652 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Двигатель внутреннего сгорания" "field_branch_order" => "24" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1171 …2} "field_page_start" => "89" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1172 …2} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1173 …2} ] #original: array:24 [ "id" => 598652 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Двигатель внутреннего сгорания" "field_branch_order" => "24" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1171 …2} "field_page_start" => "89" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1172 …2} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1173 …2} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 598653 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Вопросы после параграфа" "field_branch_order" => null "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1160} "field_page_start" => "92" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1161} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1170} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "content" => Illuminate\Database\Eloquent\Collection {#1079 #items: array:5 [ 0 => App\Models\Element {#1162 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:7 [ "id" => 745543 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1178 #items: array:1 [ 0 => App\Models\Edition {#1166 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1636 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Условие" "field_order" => "1" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1167 …2} "field_content_type" => "free" "field_content_mode" => "text, image" "field_page_content_mode" => "image" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Автор" "field_moderator" => "stas" "field_edition_type" => "statement" "field_root_dir" => "0-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1165 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1174 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1175 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1636 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Условие" "field_order" => "1" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1167 …2} "field_content_type" => "free" "field_content_mode" => "text, image" "field_page_content_mode" => "image" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Автор" "field_moderator" => "stas" "field_edition_type" => "statement" "field_root_dir" => "0-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1165 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1174 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1175 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599052" "type" => "task" ] "text" => "<p> <b>4</b>. Опишите процессы, происходящие в двигателе внутреннего сгорания в течение каждого из четырёх тактов. Как называют эти такты? </p>" "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "713" "height" => 109 "path" => "/media/fizika_08/Peryshkin-u23/0-24-1/4-1.webp?ts=1738080889" ] ] ] #original: array:7 [ "id" => 745543 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1178} "task" => array:2 [ "refs" => "599052" "type" => "task" ] "text" => "<p> <b>4</b>. Опишите процессы, происходящие в двигателе внутреннего сгорания в течение каждого из четырёх тактов. Как называют эти такты? </p>" "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "713" "height" => 109 "path" => "/media/fizika_08/Peryshkin-u23/0-24-1/4-1.webp?ts=1738080889" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 1 => App\Models\Element {#1176 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 745697 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1186 #items: array:1 [ 0 => App\Models\Edition {#1177 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1637 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 1" "field_order" => "2" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1180 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Колесникович" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "1-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1181 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1182 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1183 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1637 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 1" "field_order" => "2" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1180 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Колесникович" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "1-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1181 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1182 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1183 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599052" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.jpg" "alt" => null "width" => "1984" "height" => 1137 "path" => "/media/fizika_08/Peryshkin-u23/1-24-1/4-1.webp?ts=1738080926" ] ] ] #original: array:6 [ "id" => 745697 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1186} "task" => array:2 [ "refs" => "599052" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.jpg" "alt" => null "width" => "1984" "height" => 1137 "path" => "/media/fizika_08/Peryshkin-u23/1-24-1/4-1.webp?ts=1738080926" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 2 => App\Models\Element {#1184 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 746780 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1194 #items: array:1 [ 0 => App\Models\Edition {#1185 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1638 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 2" "field_order" => "3" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1188 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "3-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1189 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1190 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1191 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1638 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 2" "field_order" => "3" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1188 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "3-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1189 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1190 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1191 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599052" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "700" "height" => 2782 "path" => "/media/fizika_08/Peryshkin-u23/3-24-1/4-1.webp?ts=1738080973" ] ] ] #original: array:6 [ "id" => 746780 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1194} "task" => array:2 [ "refs" => "599052" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "700" "height" => 2782 "path" => "/media/fizika_08/Peryshkin-u23/3-24-1/4-1.webp?ts=1738080973" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 3 => App\Models\Element {#1192 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 747051 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1202 #items: array:1 [ 0 => App\Models\Edition {#1193 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1639 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 3" "field_order" => "4" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1196 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "2-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1197 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1198 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1199 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1639 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 3" "field_order" => "4" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1196 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "2-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1197 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1198 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1199 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599052" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "821" "height" => 775 "path" => "/media/fizika_08/Peryshkin-u23/2-24-1/4-1.webp?ts=1738081037" ] ] ] #original: array:6 [ "id" => 747051 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1202} "task" => array:2 [ "refs" => "599052" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "821" "height" => 775 "path" => "/media/fizika_08/Peryshkin-u23/2-24-1/4-1.webp?ts=1738081037" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 4 => App\Models\Element {#1200 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 1466857 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1210 #items: array:1 [ 0 => App\Models\Edition {#1201 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 5406 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 4" "field_order" => "5" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1204 …2} "field_content_type" => "free" "field_content_mode" => "text" "field_page_content_mode" => "" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Gemini 2.5 Pro" "field_moderator" => "tolik" "field_edition_type" => "solution" "field_root_dir" => "4-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1205 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1206 …2} "field_process_formula" => "katex" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1207 …2} "field_content_source" => null ] #original: array:21 [ "id" => 5406 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 4" "field_order" => "5" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1204 …2} "field_content_type" => "free" "field_content_mode" => "text" "field_page_content_mode" => "" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Gemini 2.5 Pro" "field_moderator" => "tolik" "field_edition_type" => "solution" "field_root_dir" => "4-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1205 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1206 …2} "field_process_formula" => "katex" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1207 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599052" "type" => "task" ] "text" => "<p><strong>4.</strong> <strong>Решение</strong></p><p>Рабочий цикл четырехтактного двигателя внутреннего сгорания (ДВС) состоит из четырех последовательных процессов, называемых тактами. Эти такты совершаются за четыре хода поршня (два движения вверх и два вниз), что соответствует двум полным оборотам коленчатого вала ($720^\circ$).</p><p><strong>1.</strong> Такт впуска (или всасывание)</p><p>Этот такт начинается, когда поршень находится в верхней мертвой точке (ВМТ). Поршень движется вниз к нижней мертвой точке (НМТ). Впускной клапан открывается, а выпускной клапан остается закрытым. За счет движения поршня вниз объем над ним увеличивается, создается разрежение, и в цилиндр засасывается горючая смесь (смесь воздуха с парами топлива) или чистый воздух (в дизельных двигателях). Такт заканчивается, когда поршень достигает НМТ. За это время коленчатый вал поворачивается на $180^\circ$.</p><p><strong>2.</strong> Такт сжатия</p><p>Поршень начинает движение от НМТ к ВМТ. Оба клапана (впускной и выпускной) плотно закрыты, герметизируя пространство цилиндра. По мере движения поршня вверх объем смеси в цилиндре уменьшается, она сжимается. Вследствие сжатия значительно возрастают давление и температура горючей смеси. Коленчатый вал совершает еще один полуоборот, и его общий угол поворота достигает $360^\circ$ (один полный оборот).</p><p><strong>3.</strong> Такт рабочего хода (или сгорание, расширение)</p><p>Когда поршень подходит к ВМТ, сжатая горючая смесь воспламеняется. В бензиновом двигателе это происходит от электрической искры свечи зажигания. В дизельном двигателе в раскаленный от сильного сжатия воздух впрыскивается топливо, которое самовоспламеняется. Происходит очень быстрое сгорание (почти взрыв), приводящее к резкому повышению температуры и давления газов в цилиндре. Образовавшиеся газы с огромной силой толкают поршень вниз, от ВМТ к НМТ. Это единственный такт, в ходе которого двигатель совершает полезную работу, приводя в движение коленчатый вал. Оба клапана в течение этого такта закрыты. Коленчатый вал поворачивается еще на $180^\circ$, достигая общего угла поворота в $540^\circ$.</p><p><strong>4.</strong> Такт выпуска</p><p>Поршень, достигнув НМТ, снова начинает двигаться вверх к ВМТ. В этот момент открывается выпускной клапан, а впускной остается закрытым. Поршень своим движением выталкивает отработавшие газы из цилиндра через открытый выпускной клапан в выпускную систему автомобиля. Когда поршень достигает ВМТ, выпускной клапан закрывается, и цикл завершается. Коленчатый вал совершает заключительный полуоборот, и его полный угол поворота за весь цикл составляет $720^\circ$ (два полных оборота). После этого цикл повторяется снова.</p><p><strong>Ответ:</strong> Процессы, происходящие в четырехтактном двигателе внутреннего сгорания, называются тактами. Их четыре: <strong>впуск</strong>, <strong>сжатие</strong>, <strong>рабочий ход (сгорание)</strong> и <strong>выпуск</strong>. На такте впуска цилиндр наполняется горючей смесью. На такте сжатия эта смесь сжимается поршнем. На такте рабочего хода смесь сгорает, и расширяющиеся газы толкают поршень, совершая работу. На такте выпуска отработавшие газы удаляются из цилиндра.</p>" ] #original: array:6 [ "id" => 1466857 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1210} "task" => array:2 [ "refs" => "599052" "type" => "task" ] "text" => "<p><strong>4.</strong> <strong>Решение</strong></p><p>Рабочий цикл четырехтактного двигателя внутреннего сгорания (ДВС) состоит из четырех последовательных процессов, называемых тактами. Эти такты совершаются за четыре хода поршня (два движения вверх и два вниз), что соответствует двум полным оборотам коленчатого вала ($720^\circ$).</p><p><strong>1.</strong> Такт впуска (или всасывание)</p><p>Этот такт начинается, когда поршень находится в верхней мертвой точке (ВМТ). Поршень движется вниз к нижней мертвой точке (НМТ). Впускной клапан открывается, а выпускной клапан остается закрытым. За счет движения поршня вниз объем над ним увеличивается, создается разрежение, и в цилиндр засасывается горючая смесь (смесь воздуха с парами топлива) или чистый воздух (в дизельных двигателях). Такт заканчивается, когда поршень достигает НМТ. За это время коленчатый вал поворачивается на $180^\circ$.</p><p><strong>2.</strong> Такт сжатия</p><p>Поршень начинает движение от НМТ к ВМТ. Оба клапана (впускной и выпускной) плотно закрыты, герметизируя пространство цилиндра. По мере движения поршня вверх объем смеси в цилиндре уменьшается, она сжимается. Вследствие сжатия значительно возрастают давление и температура горючей смеси. Коленчатый вал совершает еще один полуоборот, и его общий угол поворота достигает $360^\circ$ (один полный оборот).</p><p><strong>3.</strong> Такт рабочего хода (или сгорание, расширение)</p><p>Когда поршень подходит к ВМТ, сжатая горючая смесь воспламеняется. В бензиновом двигателе это происходит от электрической искры свечи зажигания. В дизельном двигателе в раскаленный от сильного сжатия воздух впрыскивается топливо, которое самовоспламеняется. Происходит очень быстрое сгорание (почти взрыв), приводящее к резкому повышению температуры и давления газов в цилиндре. Образовавшиеся газы с огромной силой толкают поршень вниз, от ВМТ к НМТ. Это единственный такт, в ходе которого двигатель совершает полезную работу, приводя в движение коленчатый вал. Оба клапана в течение этого такта закрыты. Коленчатый вал поворачивается еще на $180^\circ$, достигая общего угла поворота в $540^\circ$.</p><p><strong>4.</strong> Такт выпуска</p><p>Поршень, достигнув НМТ, снова начинает двигаться вверх к ВМТ. В этот момент открывается выпускной клапан, а впускной остается закрытым. Поршень своим движением выталкивает отработавшие газы из цилиндра через открытый выпускной клапан в выпускную систему автомобиля. Когда поршень достигает ВМТ, выпускной клапан закрывается, и цикл завершается. Коленчатый вал совершает заключительный полуоборот, и его полный угол поворота за весь цикл составляет $720^\circ$ (два полных оборота). После этого цикл повторяется снова.</p><p><strong>Ответ:</strong> Процессы, происходящие в четырехтактном двигателе внутреннего сгорания, называются тактами. Их четыре: <strong>впуск</strong>, <strong>сжатие</strong>, <strong>рабочий ход (сгорание)</strong> и <strong>выпуск</strong>. На такте впуска цилиндр наполняется горючей смесью. На такте сжатия эта смесь сжимается поршнем. На такте рабочего хода смесь сгорает, и расширяющиеся газы толкают поршень, совершая работу. На такте выпуска отработавшие газы удаляются из цилиндра.</p>" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "next" => array:2 [ "refs" => "599053" "type" => "task" ] "previous" => array:2 [ "refs" => "599051" "type" => "task" ] "book" => Illuminate\Database\Eloquent\Collection {#1112 #items: array:1 [ 0 => App\Models\Book {#1122} ] #escapeWhenCastingToString: false } "page" => Illuminate\Database\Eloquent\Collection {#1453 #items: array:1 [ 0 => App\Models\BookPage {#1032 #connection: "mysql" #table: "book_pages" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 991456 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "92" "field_url" => "/8-klass/fizika/peryshkin-uchebnik/page-92" "field_display_title" => "92" "field_folder" => "1" "field_image_name" => "92" "field_branch_parent" => Illuminate\Database\Eloquent\Collection {#1023 #items: [] #escapeWhenCastingToString: false } "field_weight" => "0" "field_book_parent" => Illuminate\Database\Eloquent\Collection {#1026 #items: array:1 [ 0 => App\Models\Book {#1088 #connection: "mysql" #table: "books" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:50 [ …50] #original: array:50 [ …50] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "edition_groups" => Illuminate\Database\Eloquent\Collection {#1076 #items: [] #escapeWhenCastingToString: false } "content" => Illuminate\Database\Eloquent\Collection {#1077 #items: array:1 [ 0 => App\Models\Element {#1075 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ …6] #original: array:6 [ …6] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } "next" => array:2 [ "refs" => "991457" "type" => "book_page" ] "previous" => array:2 [ "refs" => "991455" "type" => "book_page" ] "tasks" => Illuminate\Database\Eloquent\Collection {#1115 #items: array:9 [ 0 => App\Models\Task {#1110 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 1 => App\Models\Task {#1307 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 2 => App\Models\Task {#1324 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 3 => App\Models\Task {#1341 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 4 => App\Models\Task {#1358 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 5 => App\Models\Task {#1375 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 6 => App\Models\Task {#1400 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 7 => App\Models\Task {#1417 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 8 => App\Models\Task {#1434 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } ] #original: array:21 [ "id" => 991456 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "92" "field_url" => "/8-klass/fizika/peryshkin-uchebnik/page-92" "field_display_title" => "92" "field_folder" => "1" "field_image_name" => "92" "field_branch_parent" => Illuminate\Database\Eloquent\Collection {#1023} "field_weight" => "0" "field_book_parent" => Illuminate\Database\Eloquent\Collection {#1026} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "edition_groups" => Illuminate\Database\Eloquent\Collection {#1076} "content" => Illuminate\Database\Eloquent\Collection {#1077} "next" => array:2 [ "refs" => "991457" "type" => "book_page" ] "previous" => array:2 [ "refs" => "991455" "type" => "book_page" ] "tasks" => Illuminate\Database\Eloquent\Collection {#1115} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 599052 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "92" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/24-1-4" "field_display_title" => "4" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#1037} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1035} "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#1074} "parent_branches" => Illuminate\Database\Eloquent\Collection {#1109} "content" => Illuminate\Database\Eloquent\Collection {#1079} "next" => array:2 [ "refs" => "599053" "type" => "task" ] "previous" => array:2 [ "refs" => "599051" "type" => "task" ] "book" => Illuminate\Database\Eloquent\Collection {#1112} "page" => array:2 [ "refs" => "991456" "type" => "book_page" ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] }
№4 (с. 92)

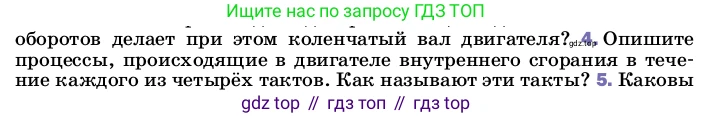

Условие. №4 (с. 92)
скриншот условия
4. Опишите процессы, происходящие в двигателе внутреннего сгорания в течение каждого из четырёх тактов. Как называют эти такты?

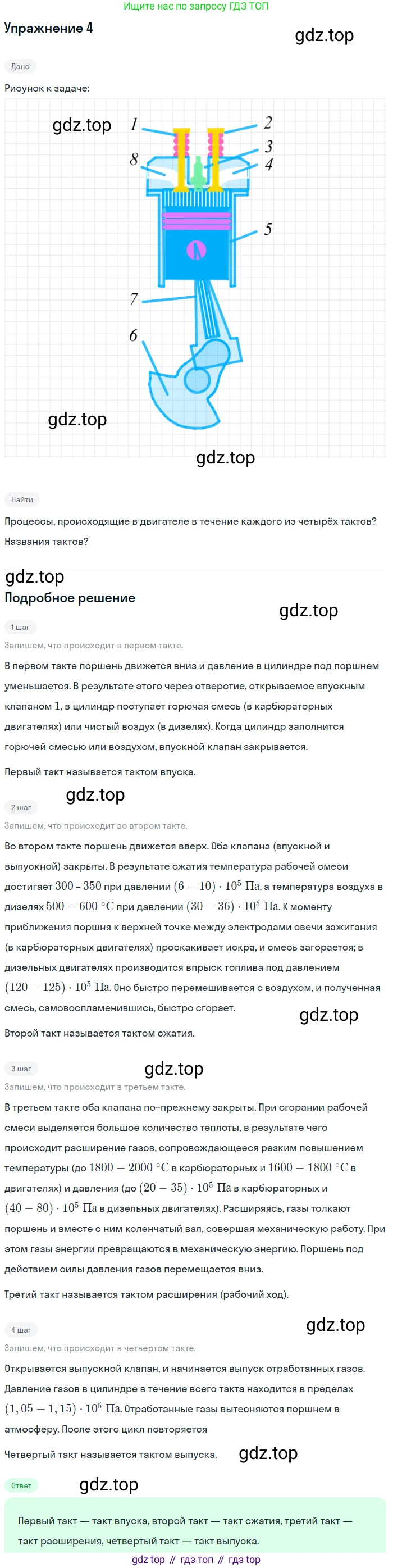

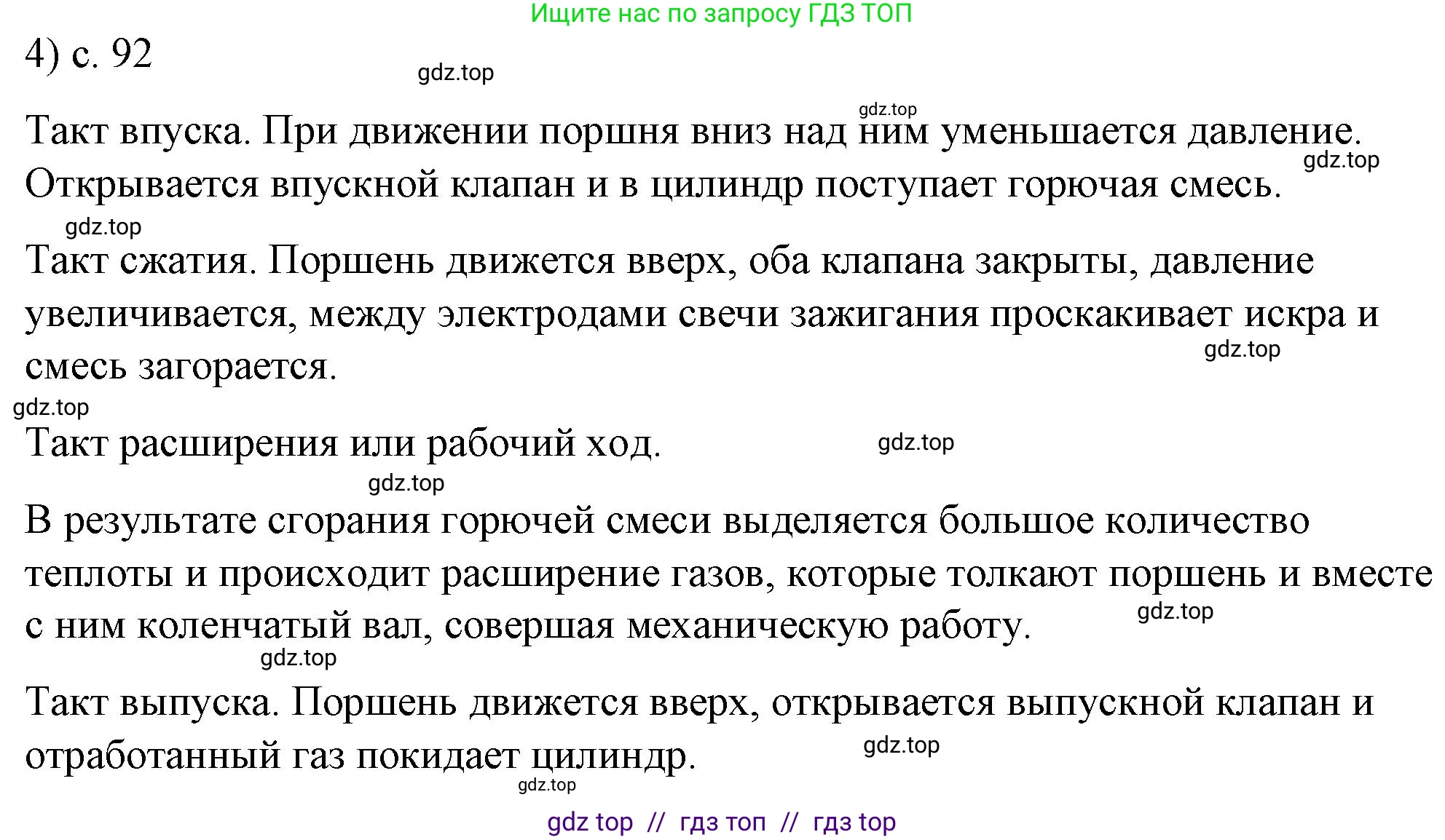

Решение 1. №4 (с. 92)
Решение 2. №4 (с. 92)
Решение 3. №4 (с. 92)
Решение 4. №4 (с. 92)
4. Решение
Рабочий цикл четырехтактного двигателя внутреннего сгорания (ДВС) состоит из четырех последовательных процессов, называемых тактами. Эти такты совершаются за четыре хода поршня (два движения вверх и два вниз), что соответствует двум полным оборотам коленчатого вала ($720^\circ$).
1. Такт впуска (или всасывание)
Этот такт начинается, когда поршень находится в верхней мертвой точке (ВМТ). Поршень движется вниз к нижней мертвой точке (НМТ). Впускной клапан открывается, а выпускной клапан остается закрытым. За счет движения поршня вниз объем над ним увеличивается, создается разрежение, и в цилиндр засасывается горючая смесь (смесь воздуха с парами топлива) или чистый воздух (в дизельных двигателях). Такт заканчивается, когда поршень достигает НМТ. За это время коленчатый вал поворачивается на $180^\circ$.
2. Такт сжатия
Поршень начинает движение от НМТ к ВМТ. Оба клапана (впускной и выпускной) плотно закрыты, герметизируя пространство цилиндра. По мере движения поршня вверх объем смеси в цилиндре уменьшается, она сжимается. Вследствие сжатия значительно возрастают давление и температура горючей смеси. Коленчатый вал совершает еще один полуоборот, и его общий угол поворота достигает $360^\circ$ (один полный оборот).
3. Такт рабочего хода (или сгорание, расширение)
Когда поршень подходит к ВМТ, сжатая горючая смесь воспламеняется. В бензиновом двигателе это происходит от электрической искры свечи зажигания. В дизельном двигателе в раскаленный от сильного сжатия воздух впрыскивается топливо, которое самовоспламеняется. Происходит очень быстрое сгорание (почти взрыв), приводящее к резкому повышению температуры и давления газов в цилиндре. Образовавшиеся газы с огромной силой толкают поршень вниз, от ВМТ к НМТ. Это единственный такт, в ходе которого двигатель совершает полезную работу, приводя в движение коленчатый вал. Оба клапана в течение этого такта закрыты. Коленчатый вал поворачивается еще на $180^\circ$, достигая общего угла поворота в $540^\circ$.
4. Такт выпуска
Поршень, достигнув НМТ, снова начинает двигаться вверх к ВМТ. В этот момент открывается выпускной клапан, а впускной остается закрытым. Поршень своим движением выталкивает отработавшие газы из цилиндра через открытый выпускной клапан в выпускную систему автомобиля. Когда поршень достигает ВМТ, выпускной клапан закрывается, и цикл завершается. Коленчатый вал совершает заключительный полуоборот, и его полный угол поворота за весь цикл составляет $720^\circ$ (два полных оборота). После этого цикл повторяется снова.
Ответ: Процессы, происходящие в четырехтактном двигателе внутреннего сгорания, называются тактами. Их четыре: впуск, сжатие, рабочий ход (сгорание) и выпуск. На такте впуска цилиндр наполняется горючей смесью. На такте сжатия эта смесь сжимается поршнем. На такте рабочего хода смесь сгорает, и расширяющиеся газы толкают поршень, совершая работу. На такте выпуска отработавшие газы удаляются из цилиндра.
