Глава 2. Электрические явления. Параграф 46. Работа и мощность электрического тока. Упражнение 38 - номер 4, страница 171.
App\Models\Task {#1024 // resources/views/models/task/default.blade.php #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 599290 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "171" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/46-3-4" "field_display_title" => "4" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#331 #items: array:1 [ 0 => App\Models\Term {#1029 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 26 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "номер" "field_cases" => array:6 [ "field_accusative_case" => "номер" "field_creative_case" => "номером" "field_dative_case" => "номеру" "field_genitive_case" => "номера" "field_nominative_case" => "номер" "field_prepositional_case" => "номере" ] "field_short_name" => "№" ] #original: array:6 [ "id" => 26 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "номер" "field_cases" => array:6 [ "field_accusative_case" => "номер" "field_creative_case" => "номером" "field_dative_case" => "номеру" "field_genitive_case" => "номера" "field_nominative_case" => "номер" "field_prepositional_case" => "номере" ] "field_short_name" => "№" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1026 #items: [] #escapeWhenCastingToString: false } "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#342 #items: array:1 [ 0 => App\Models\Branch {#1023 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598662 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Электрические явления" "field_branch_order" => "2" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#333 #items: array:1 [ 0 => App\Models\Term {#1033 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:7 [ "id" => 29 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Глава" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => null ] #original: array:7 [ "id" => 29 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Глава" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_page_start" => "100" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1030 #items: array:1 [ 0 => App\Models\Book {#1032 #connection: "mysql" #table: "books" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:50 [ "id" => 51 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_tree_default_status" => "tasks" "field_pages_status" => null "field_subject" => Illuminate\Database\Eloquent\Collection {#1034 #items: array:1 [ 0 => App\Models\Term {#1035 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:10 [ "id" => 6493 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Физика" "field_abbreviated_name" => null "field_cases" => array:6 [ …6] "field_foreign_lang_name" => null "field_short_name" => null "field_subject_type" => "technical_subject" "field_translit" => "fizika" ] #original: array:10 [ "id" => 6493 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Физика" "field_abbreviated_name" => null "field_cases" => array:6 [ …6] "field_foreign_lang_name" => null "field_short_name" => null "field_subject_type" => "technical_subject" "field_translit" => "fizika" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_class" => Illuminate\Database\Eloquent\Collection {#1036 #items: array:1 [ 0 => App\Models\Term {#1037 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 5457 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "8" "field_cases" => array:6 [ …6] "field_translit" => "vosmoj" ] #original: array:6 [ "id" => 5457 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "8" "field_cases" => array:6 [ …6] "field_translit" => "vosmoj" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_publisher" => Illuminate\Database\Eloquent\Collection {#1038 #items: array:1 [ 0 => App\Models\Term {#1039 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 5153 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Просвещение" "field_cases" => null "field_translit" => "prosveschenie" ] #original: array:6 [ "id" => 5153 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Просвещение" "field_cases" => null "field_translit" => "prosveschenie" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_author" => Illuminate\Database\Eloquent\Collection {#1040 #items: array:1 [ 0 => App\Models\Term {#1041 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:12 [ "id" => 6884 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Пёрышкин" "field_bio" => null "field_degree_rp" => null "field_foreign_lang_name" => null "field_foreign_lang_patronymic" => null "field_foreign_lang_surname" => null "field_name" => "И" "field_patronymic" => "М" "field_surname_rp" => null ] #original: array:12 [ "id" => 6884 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Пёрышкин" "field_bio" => null "field_degree_rp" => null "field_foreign_lang_name" => null "field_foreign_lang_patronymic" => null "field_foreign_lang_surname" => null "field_name" => "И" "field_patronymic" => "М" "field_surname_rp" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_author_foreign" => Illuminate\Database\Eloquent\Collection {#1042 #items: [] #escapeWhenCastingToString: false } "field_book_type" => Illuminate\Database\Eloquent\Collection {#1043 #items: array:1 [ 0 => App\Models\Term {#1044 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:10 [ "id" => 6671 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Учебник" "field_book_type_foreign" => null "field_cases" => array:6 [ …6] "field_plural_form" => null "field_short_name" => null "field_short_name_foreign" => null "field_translit" => "uchebnik" ] #original: array:10 [ "id" => 6671 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Учебник" "field_book_type_foreign" => null "field_cases" => array:6 [ …6] "field_plural_form" => null "field_short_name" => null "field_short_name_foreign" => null "field_translit" => "uchebnik" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_country" => Illuminate\Database\Eloquent\Collection {#1045 #items: array:1 [ 0 => App\Models\Term {#1046 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 9 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Россия" "field_cases" => array:6 [ …6] "field_translit" => "rossiya" ] #original: array:6 [ "id" => 9 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Россия" "field_cases" => array:6 [ …6] "field_translit" => "rossiya" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_city" => Illuminate\Database\Eloquent\Collection {#1047 #items: array:1 [ 0 => App\Models\Term {#1048 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 15 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Москва" "field_cases" => array:6 [ …6] "field_translit" => "moskva" ] #original: array:6 [ "id" => 15 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Москва" "field_cases" => array:6 [ …6] "field_translit" => "moskva" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_series" => Illuminate\Database\Eloquent\Collection {#1049 #items: [] #escapeWhenCastingToString: false } "field_umk" => Illuminate\Database\Eloquent\Collection {#1050 #items: [] #escapeWhenCastingToString: false } "field_level_of_education" => Illuminate\Database\Eloquent\Collection {#1051 #items: array:1 [ 0 => App\Models\Term {#1052 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 38 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "базовый" "field_cases" => array:6 [ …6] "field_translit" => "bazovyy" ] #original: array:6 [ "id" => 38 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "базовый" "field_cases" => array:6 [ …6] "field_translit" => "bazovyy" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_standart_of_education" => Illuminate\Database\Eloquent\Collection {#1053 #items: array:1 [ 0 => App\Models\Term {#1054 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:10 [ "id" => 25 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "ФГОС (новый)" "field_cases" => array:6 [ …6] "field_color" => "красный" "field_end_year" => "2027" "field_start_year" => "2023" "field_translit" => "fgos" "field_type" => "новый" ] #original: array:10 [ "id" => 25 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "ФГОС (новый)" "field_cases" => array:6 [ …6] "field_color" => "красный" "field_end_year" => "2027" "field_start_year" => "2023" "field_translit" => "fgos" "field_type" => "новый" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_publication_number" => "3" "field_publication_type" => Illuminate\Database\Eloquent\Collection {#1055 #items: array:1 [ 0 => App\Models\Term {#1056 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 34 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "переработанное" "field_cases" => array:6 [ …6] "field_translit" => "pererabotannoe" ] #original: array:6 [ "id" => 34 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "переработанное" …2 ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } "field_under_the_edition" => Illuminate\Database\Eloquent\Collection {#1057 #items: [] #escapeWhenCastingToString: false } "field_under_the_edition_degree" => null "field_cover_description" => "с градусником" "field_publication_year" => "2023" "field_publication_year_until" => null "field_part" => "" "field_part_writing" => "" "field_second_foreign_language" => null "field_for_whom" => null "field_allowed" => "Допущено Министерством просвещения Российской Федерации" "field_reserve_field" => null "field_link_to_source" => null "field_tasks_count" => "706" "field_priority" => "2" "field_default_folder" => "/fizika_08/Peryshkin-u23/" "field_isbn" => "978-5-09-102555-2" "field_cover" => array:1 [ 0 => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" ] "field_cover_alts" => array:1 [ 0 => "" ] "field_covers" => array:1 [ 0 => array:4 [ "path" => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" "alt" => "" "width" => "1350" "height" => "1772" ] ] "field_popular_book" => null "field_recommended_books" => Illuminate\Database\Eloquent\Collection {#1058 #items: [] #escapeWhenCastingToString: false } "field_new_book" => Illuminate\Database\Eloquent\Collection {#1059 #items: [] #escapeWhenCastingToString: false } "field_old_book" => Illuminate\Database\Eloquent\Collection {#1060 #items: [] #escapeWhenCastingToString: false } "field_url" => "/8-klass/fizika/peryshkin-uchebnik" "field_cover_color" => Illuminate\Database\Eloquent\Collection {#1061 #items: array:1 [ 0 => App\Models\Term {#1062 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ …6] #original: array:6 [ …6] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "breadcrumbs" => array:3 [ "class" => 379 "subject" => 556 "class_subject" => 492 ] ] #original: array:50 [ "id" => 51 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_tree_default_status" => "tasks" "field_pages_status" => null "field_subject" => Illuminate\Database\Eloquent\Collection {#1034} "field_class" => Illuminate\Database\Eloquent\Collection {#1036} "field_publisher" => Illuminate\Database\Eloquent\Collection {#1038} "field_author" => Illuminate\Database\Eloquent\Collection {#1040} "field_author_foreign" => Illuminate\Database\Eloquent\Collection {#1042} "field_book_type" => Illuminate\Database\Eloquent\Collection {#1043} "field_country" => Illuminate\Database\Eloquent\Collection {#1045} "field_city" => Illuminate\Database\Eloquent\Collection {#1047} "field_series" => Illuminate\Database\Eloquent\Collection {#1049} "field_umk" => Illuminate\Database\Eloquent\Collection {#1050} "field_level_of_education" => Illuminate\Database\Eloquent\Collection {#1051} "field_standart_of_education" => Illuminate\Database\Eloquent\Collection {#1053} "field_publication_number" => "3" "field_publication_type" => Illuminate\Database\Eloquent\Collection {#1055} "field_under_the_edition" => Illuminate\Database\Eloquent\Collection {#1057} "field_under_the_edition_degree" => null "field_cover_description" => "с градусником" "field_publication_year" => "2023" "field_publication_year_until" => null "field_part" => "" "field_part_writing" => "" "field_second_foreign_language" => null "field_for_whom" => null "field_allowed" => "Допущено Министерством просвещения Российской Федерации" "field_reserve_field" => null "field_link_to_source" => null "field_tasks_count" => "706" "field_priority" => "2" "field_default_folder" => "/fizika_08/Peryshkin-u23/" "field_isbn" => "978-5-09-102555-2" "field_cover" => array:1 [ 0 => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" ] "field_cover_alts" => array:1 [ 0 => "" ] "field_covers" => array:1 [ 0 => array:4 [ "path" => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" "alt" => "" "width" => "1350" "height" => "1772" ] ] "field_popular_book" => null "field_recommended_books" => Illuminate\Database\Eloquent\Collection {#1058} "field_new_book" => Illuminate\Database\Eloquent\Collection {#1059} "field_old_book" => Illuminate\Database\Eloquent\Collection {#1060} "field_url" => "/8-klass/fizika/peryshkin-uchebnik" "field_cover_color" => Illuminate\Database\Eloquent\Collection {#1061} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "breadcrumbs" => array:3 [ "class" => 379 "subject" => 556 "class_subject" => 492 ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "branch_parent" => Illuminate\Database\Eloquent\Collection {#1063 #items: [] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 598662 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Электрические явления" "field_branch_order" => "2" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#333} "field_page_start" => "100" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1030} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1063} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "parent_branches" => Illuminate\Database\Eloquent\Collection {#1064 #items: array:3 [ 0 => App\Models\Branch {#1023} 1 => App\Models\Branch {#1065 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598726 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Работа и мощность электрического тока" "field_branch_order" => "46" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1066 #items: array:1 [ 0 => App\Models\Term {#1067 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:7 [ "id" => 32 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Параграф" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => "§" ] #original: array:7 [ "id" => 32 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Параграф" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => "§" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_page_start" => "169" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1068 #items: array:1 [ 0 => App\Models\Book {#1032} ] #escapeWhenCastingToString: false } "branch_parent" => Illuminate\Database\Eloquent\Collection {#1069 #items: array:1 [ 0 => App\Models\Branch {#1070 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598662 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Электрические явления" "field_branch_order" => "2" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1071 …2} "field_page_start" => "100" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1073 …2} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1104 …2} ] #original: array:24 [ "id" => 598662 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Электрические явления" "field_branch_order" => "2" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1071 …2} "field_page_start" => "100" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1073 …2} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1104 …2} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 598726 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Работа и мощность электрического тока" "field_branch_order" => "46" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1066} "field_page_start" => "169" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1068} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1069} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 2 => App\Models\Branch {#1105 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598728 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Упражнение 38" "field_branch_order" => null "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1106 #items: [] #escapeWhenCastingToString: false } "field_page_start" => "171" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1107 #items: array:1 [ 0 => App\Models\Book {#1032} ] #escapeWhenCastingToString: false } "branch_parent" => Illuminate\Database\Eloquent\Collection {#1108 #items: array:1 [ 0 => App\Models\Branch {#1109 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598726 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Работа и мощность электрического тока" "field_branch_order" => "46" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1110 …2} "field_page_start" => "169" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1112 …2} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1143 …2} ] #original: array:24 [ "id" => 598726 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Работа и мощность электрического тока" "field_branch_order" => "46" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1110 …2} "field_page_start" => "169" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1112 …2} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1143 …2} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 598728 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Упражнение 38" "field_branch_order" => null "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1106} "field_page_start" => "171" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1107} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1108} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "content" => Illuminate\Database\Eloquent\Collection {#1149 #items: array:5 [ 0 => App\Models\Element {#1150 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:7 [ "id" => 746026 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1151 #items: array:1 [ 0 => App\Models\Edition {#1152 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1636 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Условие" "field_order" => "1" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1153 …2} "field_content_type" => "free" "field_content_mode" => "text, image" "field_page_content_mode" => "image" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Автор" "field_moderator" => "stas" "field_edition_type" => "statement" "field_root_dir" => "0-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1155 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1156 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1157 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1636 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Условие" "field_order" => "1" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1153 …2} "field_content_type" => "free" "field_content_mode" => "text, image" "field_page_content_mode" => "image" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Автор" "field_moderator" => "stas" "field_edition_type" => "statement" "field_root_dir" => "0-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1155 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1156 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1157 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599290" "type" => "task" ] "text" => "<p> <b>4</b>. Электрический паяльник мощностью 120 Вт рассчитан на напряжение 220 В. Найдите силу тока в обмотке паяльника и её сопротивление. </p>" "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "750" "height" => 96 "path" => "/media/fizika_08/Peryshkin-u23/0-46-3/4-1.webp?ts=1738081009" ] ] ] #original: array:7 [ "id" => 746026 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1151} "task" => array:2 [ "refs" => "599290" "type" => "task" ] "text" => "<p> <b>4</b>. Электрический паяльник мощностью 120 Вт рассчитан на напряжение 220 В. Найдите силу тока в обмотке паяльника и её сопротивление. </p>" "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "750" "height" => 96 "path" => "/media/fizika_08/Peryshkin-u23/0-46-3/4-1.webp?ts=1738081009" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 1 => App\Models\Element {#1158 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 746195 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1159 #items: array:1 [ 0 => App\Models\Edition {#1160 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1637 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 1" "field_order" => "2" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1161 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Колесникович" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "1-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1163 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1164 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1165 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1637 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 1" "field_order" => "2" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1161 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Колесникович" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "1-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1163 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1164 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1165 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599290" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.jpg" "alt" => null "width" => "2052" "height" => 1327 "path" => "/media/fizika_08/Peryshkin-u23/1-46-3/4-1.webp?ts=1738081055" ] ] ] #original: array:6 [ "id" => 746195 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1159} "task" => array:2 [ "refs" => "599290" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.jpg" "alt" => null "width" => "2052" "height" => 1327 "path" => "/media/fizika_08/Peryshkin-u23/1-46-3/4-1.webp?ts=1738081055" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 2 => App\Models\Element {#1166 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 747289 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1167 #items: array:1 [ 0 => App\Models\Edition {#1168 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1638 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 2" "field_order" => "3" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1169 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "3-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1171 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1172 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1173 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1638 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 2" "field_order" => "3" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1169 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "3-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1171 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1172 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1173 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599290" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "700" "height" => 2574 "path" => "/media/fizika_08/Peryshkin-u23/3-46-3/4-1.webp?ts=1738081075" ] ] ] #original: array:6 [ "id" => 747289 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1167} "task" => array:2 [ "refs" => "599290" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "700" "height" => 2574 "path" => "/media/fizika_08/Peryshkin-u23/3-46-3/4-1.webp?ts=1738081075" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 3 => App\Models\Element {#1174 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 747443 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1175 #items: array:1 [ 0 => App\Models\Edition {#1176 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1639 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 3" "field_order" => "4" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1177 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "2-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1179 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1180 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1181 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1639 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 3" "field_order" => "4" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1177 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "2-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1179 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1180 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1181 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599290" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "509" "height" => 471 "path" => "/media/fizika_08/Peryshkin-u23/2-46-3/4-1.webp?ts=1738081162" ] ] ] #original: array:6 [ "id" => 747443 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1175} "task" => array:2 [ "refs" => "599290" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "4-1.png" "alt" => null "width" => "509" "height" => 471 "path" => "/media/fizika_08/Peryshkin-u23/2-46-3/4-1.webp?ts=1738081162" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 4 => App\Models\Element {#1182 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 1467095 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1183 #items: array:1 [ 0 => App\Models\Edition {#1184 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 5406 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 4" "field_order" => "5" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1185 …2} "field_content_type" => "free" "field_content_mode" => "text" "field_page_content_mode" => "" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Gemini 2.5 Pro" "field_moderator" => "tolik" "field_edition_type" => "solution" "field_root_dir" => "4-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1187 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1188 …2} "field_process_formula" => "katex" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1189 …2} "field_content_source" => null ] #original: array:21 [ "id" => 5406 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 4" "field_order" => "5" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1185 …2} "field_content_type" => "free" "field_content_mode" => "text" "field_page_content_mode" => "" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Gemini 2.5 Pro" "field_moderator" => "tolik" "field_edition_type" => "solution" "field_root_dir" => "4-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1187 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1188 …2} "field_process_formula" => "katex" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1189 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599290" "type" => "task" ] "text" => "<p><strong>Дано:</strong></p><p>Мощность паяльника, $P = 120$ Вт</p><p>Напряжение, $U = 220$ В</p><p>Все величины даны в системе СИ, перевод не требуется.</p><p><strong>Найти:</strong></p><p>Силу тока $I$</p><p>Сопротивление $R$</p><p><strong>Решение:</strong></p><p>Для определения силы тока в обмотке паяльника используем формулу мощности электрического тока:</p><p>$P = U \cdot I$</p><p>Из этой формулы выражаем силу тока $I$:</p><p>$I = \frac{P}{U}$</p><p>Подставляем числовые значения:</p><p>$I = \frac{120 \text{ Вт}}{220 \text{ В}} = \frac{6}{11} \text{ А} \approx 0.545 \text{ А}$</p><p>Для нахождения сопротивления обмотки можно использовать закон Ома для участка цепи ($U=I \cdot R$), либо другую формулу мощности, связывающую мощность, напряжение и сопротивление. Воспользуемся второй формулой, чтобы избежать накопления погрешности от округления силы тока:</p><p>$P = \frac{U^2}{R}$</p><p>Выразим из нее сопротивление $R$:</p><p>$R = \frac{U^2}{P}$</p><p>Подставляем числовые значения:</p><p>$R = \frac{(220 \text{ В})^2}{120 \text{ Вт}} = \frac{48400 \text{ В}^2}{120 \text{ Вт}} = \frac{1210}{3} \text{ Ом} \approx 403.3 \text{ Ом}$</p><p><strong>Ответ:</strong> сила тока в обмотке паяльника составляет приблизительно $0.545$ А, а её сопротивление — приблизительно $403.3$ Ом.</p>" ] #original: array:6 [ "id" => 1467095 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1183} "task" => array:2 [ "refs" => "599290" "type" => "task" ] "text" => "<p><strong>Дано:</strong></p><p>Мощность паяльника, $P = 120$ Вт</p><p>Напряжение, $U = 220$ В</p><p>Все величины даны в системе СИ, перевод не требуется.</p><p><strong>Найти:</strong></p><p>Силу тока $I$</p><p>Сопротивление $R$</p><p><strong>Решение:</strong></p><p>Для определения силы тока в обмотке паяльника используем формулу мощности электрического тока:</p><p>$P = U \cdot I$</p><p>Из этой формулы выражаем силу тока $I$:</p><p>$I = \frac{P}{U}$</p><p>Подставляем числовые значения:</p><p>$I = \frac{120 \text{ Вт}}{220 \text{ В}} = \frac{6}{11} \text{ А} \approx 0.545 \text{ А}$</p><p>Для нахождения сопротивления обмотки можно использовать закон Ома для участка цепи ($U=I \cdot R$), либо другую формулу мощности, связывающую мощность, напряжение и сопротивление. Воспользуемся второй формулой, чтобы избежать накопления погрешности от округления силы тока:</p><p>$P = \frac{U^2}{R}$</p><p>Выразим из нее сопротивление $R$:</p><p>$R = \frac{U^2}{P}$</p><p>Подставляем числовые значения:</p><p>$R = \frac{(220 \text{ В})^2}{120 \text{ Вт}} = \frac{48400 \text{ В}^2}{120 \text{ Вт}} = \frac{1210}{3} \text{ Ом} \approx 403.3 \text{ Ом}$</p><p><strong>Ответ:</strong> сила тока в обмотке паяльника составляет приблизительно $0.545$ А, а её сопротивление — приблизительно $403.3$ Ом.</p>" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "next" => array:2 [ "refs" => "599291" "type" => "task" ] "previous" => array:2 [ "refs" => "599289" "type" => "task" ] "book" => Illuminate\Database\Eloquent\Collection {#1190 #items: array:1 [ 0 => App\Models\Book {#1032} ] #escapeWhenCastingToString: false } "page" => Illuminate\Database\Eloquent\Collection {#1515 #items: array:1 [ 0 => App\Models\BookPage {#1194 #connection: "mysql" #table: "book_pages" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 991535 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "171" "field_url" => "/8-klass/fizika/peryshkin-uchebnik/page-171" "field_display_title" => "171" "field_folder" => "1" "field_image_name" => "171" "field_branch_parent" => Illuminate\Database\Eloquent\Collection {#1198 #items: [] #escapeWhenCastingToString: false } "field_weight" => "0" "field_book_parent" => Illuminate\Database\Eloquent\Collection {#1197 #items: array:1 [ 0 => App\Models\Book {#1199 #connection: "mysql" #table: "books" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:50 [ …50] #original: array:50 [ …50] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "edition_groups" => Illuminate\Database\Eloquent\Collection {#1229 #items: [] #escapeWhenCastingToString: false } "content" => Illuminate\Database\Eloquent\Collection {#1230 #items: array:1 [ 0 => App\Models\Element {#1231 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ …6] #original: array:6 [ …6] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } "next" => array:2 [ "refs" => "991536" "type" => "book_page" ] "previous" => array:2 [ "refs" => "991534" "type" => "book_page" ] "tasks" => Illuminate\Database\Eloquent\Collection {#1239 #items: array:11 [ 0 => App\Models\Task {#1240 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 1 => App\Models\Task {#1339 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 2 => App\Models\Task {#1356 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 3 => App\Models\Task {#1373 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 4 => App\Models\Task {#1390 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 5 => App\Models\Task {#1407 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 6 => App\Models\Task {#1422 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 7 => App\Models\Task {#1437 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 8 => App\Models\Task {#1462 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 9 => App\Models\Task {#1479 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 10 => App\Models\Task {#1496 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } ] #original: array:21 [ "id" => 991535 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "171" "field_url" => "/8-klass/fizika/peryshkin-uchebnik/page-171" "field_display_title" => "171" "field_folder" => "1" "field_image_name" => "171" "field_branch_parent" => Illuminate\Database\Eloquent\Collection {#1198} "field_weight" => "0" "field_book_parent" => Illuminate\Database\Eloquent\Collection {#1197} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "edition_groups" => Illuminate\Database\Eloquent\Collection {#1229} "content" => Illuminate\Database\Eloquent\Collection {#1230} "next" => array:2 [ "refs" => "991536" "type" => "book_page" ] "previous" => array:2 [ "refs" => "991534" "type" => "book_page" ] "tasks" => Illuminate\Database\Eloquent\Collection {#1239} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 599290 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "171" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/46-3-4" "field_display_title" => "4" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#331} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1026} "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#342} "parent_branches" => Illuminate\Database\Eloquent\Collection {#1064} "content" => Illuminate\Database\Eloquent\Collection {#1149} "next" => array:2 [ "refs" => "599291" "type" => "task" ] "previous" => array:2 [ "refs" => "599289" "type" => "task" ] "book" => Illuminate\Database\Eloquent\Collection {#1190} "page" => array:2 [ "refs" => "991535" "type" => "book_page" ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] }
№4 (с. 171)
Условие. №4 (с. 171)
скриншот условия

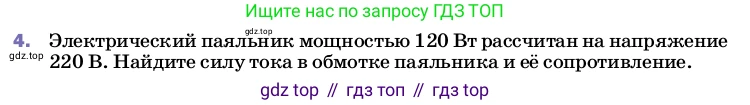

4. Электрический паяльник мощностью 120 Вт рассчитан на напряжение 220 В. Найдите силу тока в обмотке паяльника и её сопротивление.

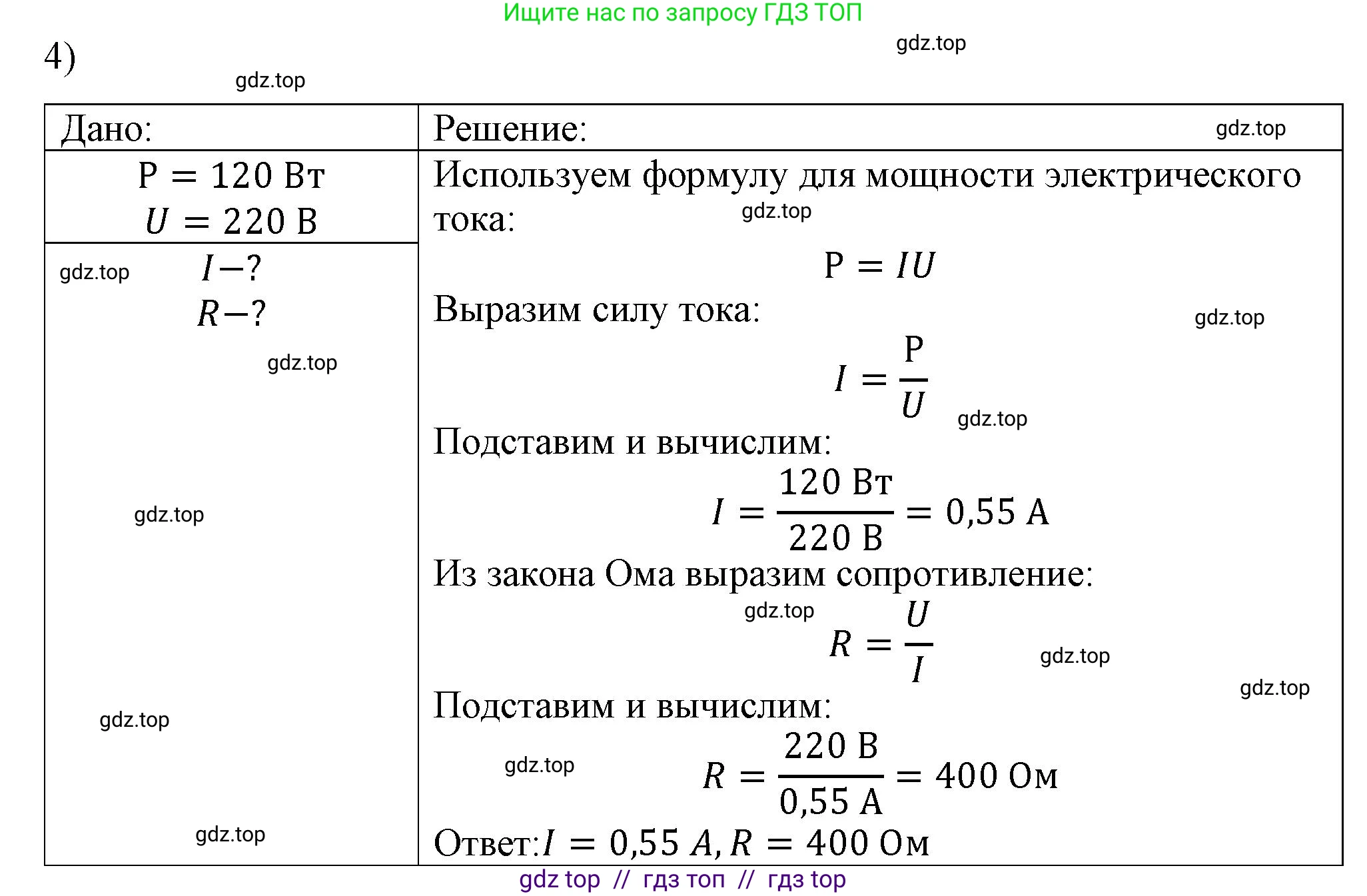

Решение 1. №4 (с. 171)
Решение 2. №4 (с. 171)
Решение 3. №4 (с. 171)
Решение 4. №4 (с. 171)
Дано:
Мощность паяльника, $P = 120$ Вт
Напряжение, $U = 220$ В
Все величины даны в системе СИ, перевод не требуется.
Найти:
Силу тока $I$
Сопротивление $R$
Решение:
Для определения силы тока в обмотке паяльника используем формулу мощности электрического тока:
$P = U \cdot I$
Из этой формулы выражаем силу тока $I$:
$I = \frac{P}{U}$
Подставляем числовые значения:
$I = \frac{120 \text{ Вт}}{220 \text{ В}} = \frac{6}{11} \text{ А} \approx 0.545 \text{ А}$
Для нахождения сопротивления обмотки можно использовать закон Ома для участка цепи ($U=I \cdot R$), либо другую формулу мощности, связывающую мощность, напряжение и сопротивление. Воспользуемся второй формулой, чтобы избежать накопления погрешности от округления силы тока:
$P = \frac{U^2}{R}$
Выразим из нее сопротивление $R$:
$R = \frac{U^2}{P}$
Подставляем числовые значения:
$R = \frac{(220 \text{ В})^2}{120 \text{ Вт}} = \frac{48400 \text{ В}^2}{120 \text{ Вт}} = \frac{1210}{3} \text{ Ом} \approx 403.3 \text{ Ом}$
Ответ: сила тока в обмотке паяльника составляет приблизительно $0.545$ А, а её сопротивление — приблизительно $403.3$ Ом.
