№3 (с. 181)
Условие. №3 (с. 181)
скриншот условия

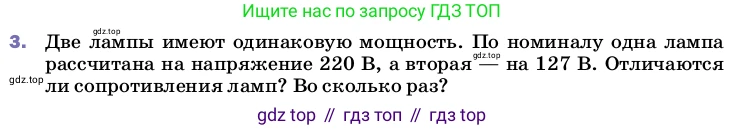

3. Две лампы имеют одинаковую мощность. По номиналу одна лампа рассчитана на напряжение 220 В, а вторая — на 127 В. Отличаются ли сопротивления ламп? Во сколько раз?

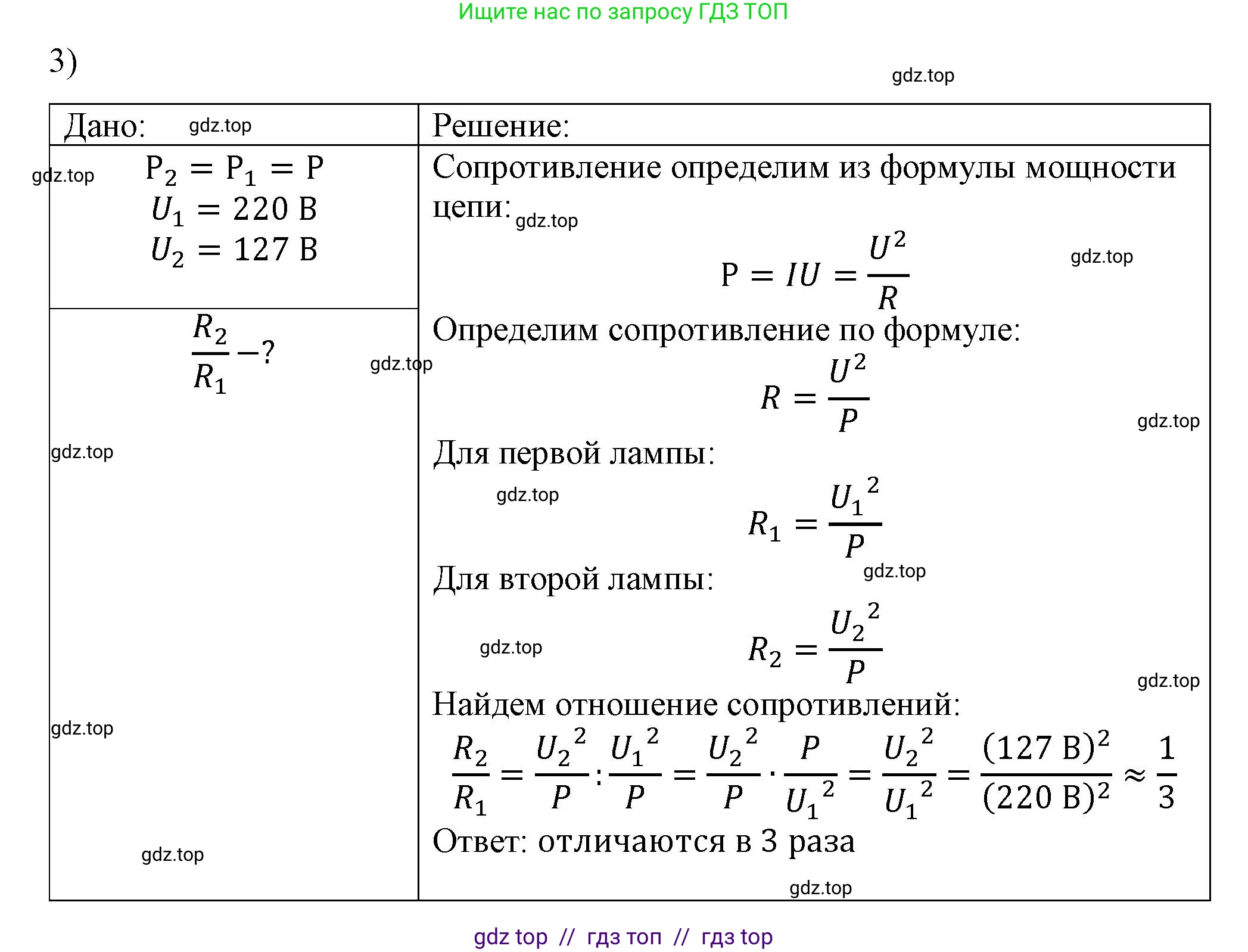

Решение 1. №3 (с. 181)
Решение 2. №3 (с. 181)
Решение 3. №3 (с. 181)
Решение 4. №3 (с. 181)
Дано:
Мощность первой лампы: $P_1$
Мощность второй лампы: $P_2$
Номинальное напряжение первой лампы: $U_1 = 220 \text{ В}$
Номинальное напряжение второй лампы: $U_2 = 127 \text{ В}$
По условию, мощности ламп одинаковы: $P_1 = P_2 = P$
Данные величины уже представлены в Международной системе единиц (СИ).
Найти:
Ответить на вопросы: Отличаются ли сопротивления ламп? Во сколько раз?
Решение:
Для решения задачи воспользуемся формулой, связывающей мощность электрического тока $P$, напряжение $U$ и сопротивление $R$:
$P = \frac{U^2}{R}$
Из этой формулы выразим сопротивление $R$:
$R = \frac{U^2}{P}$
Отличаются ли сопротивления ламп?
Запишем выражения для сопротивлений первой и второй ламп, используя выведенную формулу:
Сопротивление первой лампы: $R_1 = \frac{U_1^2}{P_1}$
Сопротивление второй лампы: $R_2 = \frac{U_2^2}{P_2}$
Поскольку по условию задачи мощности ламп одинаковы ($P_1 = P_2 = P$), а номинальные напряжения различны ($U_1 = 220 \text{ В}$, а $U_2 = 127 \text{ В}$), то их сопротивления $R_1 = \frac{U_1^2}{P}$ и $R_2 = \frac{U_2^2}{P}$ также будут различны, так как числители дробей ($U_1^2$ и $U_2^2$) не равны.
Ответ: Да, сопротивления ламп отличаются.
Во сколько раз?
Чтобы найти, во сколько раз отличаются сопротивления, найдем их отношение. Разделим сопротивление первой лампы $R_1$ на сопротивление второй лампы $R_2$:
$\frac{R_1}{R_2} = \frac{\frac{U_1^2}{P}}{\frac{U_2^2}{P}} = \frac{U_1^2}{P} \cdot \frac{P}{U_2^2} = \frac{U_1^2}{U_2^2} = \left(\frac{U_1}{U_2}\right)^2$
Теперь подставим числовые значения напряжений в полученное выражение:
$\frac{R_1}{R_2} = \left(\frac{220}{127}\right)^2 = \frac{220^2}{127^2} = \frac{48400}{16129} \approx 2.99956$
Округляя полученное значение, можно сделать вывод, что сопротивление лампы, рассчитанной на 220 В, примерно в 3 раза больше сопротивления лампы, рассчитанной на 127 В.
Ответ: Сопротивление лампы, рассчитанной на напряжение 220 В, примерно в 3 раза больше, чем сопротивление лампы, рассчитанной на напряжение 127 В.
