Глава 3. Электромагнитные явления. Параграф 52. Магнитное поле проводников с током и постоянных магнитов. Магнитные линии. Упражнение 43 - номер 1, страница 192.
App\Models\Task {#1030 // resources/views/models/task/default.blade.php #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 599352 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "192" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/52-2-1" "field_display_title" => "1" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#1037 #items: array:1 [ 0 => App\Models\Term {#1036 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 26 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "номер" "field_cases" => array:6 [ "field_accusative_case" => "номер" "field_creative_case" => "номером" "field_dative_case" => "номеру" "field_genitive_case" => "номера" "field_nominative_case" => "номер" "field_prepositional_case" => "номере" ] "field_short_name" => "№" ] #original: array:6 [ "id" => 26 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "номер" "field_cases" => array:6 [ "field_accusative_case" => "номер" "field_creative_case" => "номером" "field_dative_case" => "номеру" "field_genitive_case" => "номера" "field_nominative_case" => "номер" "field_prepositional_case" => "номере" ] "field_short_name" => "№" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1035 #items: [] #escapeWhenCastingToString: false } "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#1046 #items: array:1 [ 0 => App\Models\Branch {#1045 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598741 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Электромагнитные явления" "field_branch_order" => "3" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1050 #items: array:1 [ 0 => App\Models\Term {#1047 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:7 [ "id" => 29 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Глава" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => null ] #original: array:7 [ "id" => 29 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Глава" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_page_start" => "183" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1081 #items: array:1 [ 0 => App\Models\Book {#1049 #connection: "mysql" #table: "books" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:50 [ "id" => 51 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_tree_default_status" => "tasks" "field_pages_status" => null "field_subject" => Illuminate\Database\Eloquent\Collection {#1051 #items: array:1 [ 0 => App\Models\Term {#1048 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:10 [ "id" => 6493 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Физика" "field_abbreviated_name" => null "field_cases" => array:6 [ …6] "field_foreign_lang_name" => null "field_short_name" => null "field_subject_type" => "technical_subject" "field_translit" => "fizika" ] #original: array:10 [ "id" => 6493 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Физика" "field_abbreviated_name" => null "field_cases" => array:6 [ …6] "field_foreign_lang_name" => null "field_short_name" => null "field_subject_type" => "technical_subject" "field_translit" => "fizika" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_class" => Illuminate\Database\Eloquent\Collection {#1052 #items: array:1 [ 0 => App\Models\Term {#1053 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 5457 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "8" "field_cases" => array:6 [ …6] "field_translit" => "vosmoj" ] #original: array:6 [ "id" => 5457 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "8" "field_cases" => array:6 [ …6] "field_translit" => "vosmoj" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_publisher" => Illuminate\Database\Eloquent\Collection {#1054 #items: array:1 [ 0 => App\Models\Term {#1055 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 5153 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Просвещение" "field_cases" => null "field_translit" => "prosveschenie" ] #original: array:6 [ "id" => 5153 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Просвещение" "field_cases" => null "field_translit" => "prosveschenie" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_author" => Illuminate\Database\Eloquent\Collection {#1056 #items: array:1 [ 0 => App\Models\Term {#1057 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:12 [ "id" => 6884 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Пёрышкин" "field_bio" => null "field_degree_rp" => null "field_foreign_lang_name" => null "field_foreign_lang_patronymic" => null "field_foreign_lang_surname" => null "field_name" => "И" "field_patronymic" => "М" "field_surname_rp" => null ] #original: array:12 [ "id" => 6884 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Пёрышкин" "field_bio" => null "field_degree_rp" => null "field_foreign_lang_name" => null "field_foreign_lang_patronymic" => null "field_foreign_lang_surname" => null "field_name" => "И" "field_patronymic" => "М" "field_surname_rp" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_author_foreign" => Illuminate\Database\Eloquent\Collection {#1058 #items: [] #escapeWhenCastingToString: false } "field_book_type" => Illuminate\Database\Eloquent\Collection {#1059 #items: array:1 [ 0 => App\Models\Term {#1060 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:10 [ "id" => 6671 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Учебник" "field_book_type_foreign" => null "field_cases" => array:6 [ …6] "field_plural_form" => null "field_short_name" => null "field_short_name_foreign" => null "field_translit" => "uchebnik" ] #original: array:10 [ "id" => 6671 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Учебник" "field_book_type_foreign" => null "field_cases" => array:6 [ …6] "field_plural_form" => null "field_short_name" => null "field_short_name_foreign" => null "field_translit" => "uchebnik" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_country" => Illuminate\Database\Eloquent\Collection {#1061 #items: array:1 [ 0 => App\Models\Term {#1062 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 9 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Россия" "field_cases" => array:6 [ …6] "field_translit" => "rossiya" ] #original: array:6 [ "id" => 9 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Россия" "field_cases" => array:6 [ …6] "field_translit" => "rossiya" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_city" => Illuminate\Database\Eloquent\Collection {#1063 #items: array:1 [ 0 => App\Models\Term {#1064 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 15 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Москва" "field_cases" => array:6 [ …6] "field_translit" => "moskva" ] #original: array:6 [ "id" => 15 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Москва" "field_cases" => array:6 [ …6] "field_translit" => "moskva" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_series" => Illuminate\Database\Eloquent\Collection {#1065 #items: [] #escapeWhenCastingToString: false } "field_umk" => Illuminate\Database\Eloquent\Collection {#1066 #items: [] #escapeWhenCastingToString: false } "field_level_of_education" => Illuminate\Database\Eloquent\Collection {#1067 #items: array:1 [ 0 => App\Models\Term {#1068 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 38 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "базовый" "field_cases" => array:6 [ …6] "field_translit" => "bazovyy" ] #original: array:6 [ "id" => 38 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "базовый" "field_cases" => array:6 [ …6] "field_translit" => "bazovyy" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_standart_of_education" => Illuminate\Database\Eloquent\Collection {#1069 #items: array:1 [ 0 => App\Models\Term {#1070 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:10 [ "id" => 25 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "ФГОС (новый)" "field_cases" => array:6 [ …6] "field_color" => "красный" "field_end_year" => "2027" "field_start_year" => "2023" "field_translit" => "fgos" "field_type" => "новый" ] #original: array:10 [ "id" => 25 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "ФГОС (новый)" "field_cases" => array:6 [ …6] "field_color" => "красный" "field_end_year" => "2027" "field_start_year" => "2023" "field_translit" => "fgos" "field_type" => "новый" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_publication_number" => "3" "field_publication_type" => Illuminate\Database\Eloquent\Collection {#1071 #items: array:1 [ 0 => App\Models\Term {#1072 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 34 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "переработанное" "field_cases" => array:6 [ …6] "field_translit" => "pererabotannoe" ] #original: array:6 [ "id" => 34 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "переработанное" "field_cases" => array:6 [ …6] "field_translit" => "pererabotannoe" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_under_the_edition" => Illuminate\Database\Eloquent\Collection {#1073 #items: [] #escapeWhenCastingToString: false } "field_under_the_edition_degree" => null "field_cover_description" => "с градусником" "field_publication_year" => "2023" "field_publication_year_until" => null "field_part" => "" "field_part_writing" => "" "field_second_foreign_language" => null "field_for_whom" => null "field_allowed" => "Допущено Министерством просвещения Российской Федерации" "field_reserve_field" => null "field_link_to_source" => null "field_tasks_count" => "706" "field_priority" => "2" "field_default_folder" => "/fizika_08/Peryshkin-u23/" "field_isbn" => "978-5-09-102555-2" "field_cover" => array:1 [ 0 => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" ] "field_cover_alts" => array:1 [ 0 => "" ] "field_covers" => array:1 [ 0 => array:4 [ "path" => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" "alt" => "" "width" => "1350" "height" => "1772" ] ] "field_popular_book" => null "field_recommended_books" => Illuminate\Database\Eloquent\Collection {#1074 #items: [] #escapeWhenCastingToString: false } "field_new_book" => Illuminate\Database\Eloquent\Collection {#1075 #items: [] #escapeWhenCastingToString: false } "field_old_book" => Illuminate\Database\Eloquent\Collection {#1076 #items: [] #escapeWhenCastingToString: false } "field_url" => "/8-klass/fizika/peryshkin-uchebnik" "field_cover_color" => Illuminate\Database\Eloquent\Collection {#1077 #items: array:1 [ 0 => App\Models\Term {#1078 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 45 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "белый" "field_cases" => array:6 [ …6] "field_translit" => "belyy" ] #original: array:6 [ "id" => 45 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "белый" "field_cases" => array:6 [ …6] "field_translit" => "belyy" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "breadcrumbs" => array:3 [ "class" => 379 "subject" => 556 "class_subject" => 492 ] ] #original: array:50 [ "id" => 51 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_tree_default_status" => "tasks" "field_pages_status" => null "field_subject" => Illuminate\Database\Eloquent\Collection {#1051} "field_class" => Illuminate\Database\Eloquent\Collection {#1052} "field_publisher" => Illuminate\Database\Eloquent\Collection {#1054} "field_author" => Illuminate\Database\Eloquent\Collection {#1056} "field_author_foreign" => Illuminate\Database\Eloquent\Collection {#1058} "field_book_type" => Illuminate\Database\Eloquent\Collection {#1059} "field_country" => Illuminate\Database\Eloquent\Collection {#1061} "field_city" => Illuminate\Database\Eloquent\Collection {#1063} "field_series" => Illuminate\Database\Eloquent\Collection {#1065} "field_umk" => Illuminate\Database\Eloquent\Collection {#1066} "field_level_of_education" => Illuminate\Database\Eloquent\Collection {#1067} "field_standart_of_education" => Illuminate\Database\Eloquent\Collection {#1069} "field_publication_number" => "3" "field_publication_type" => Illuminate\Database\Eloquent\Collection {#1071} "field_under_the_edition" => Illuminate\Database\Eloquent\Collection {#1073} "field_under_the_edition_degree" => null "field_cover_description" => "с градусником" "field_publication_year" => "2023" "field_publication_year_until" => null "field_part" => "" "field_part_writing" => "" "field_second_foreign_language" => null "field_for_whom" => null "field_allowed" => "Допущено Министерством просвещения Российской Федерации" "field_reserve_field" => null "field_link_to_source" => null "field_tasks_count" => "706" "field_priority" => "2" "field_default_folder" => "/fizika_08/Peryshkin-u23/" "field_isbn" => "978-5-09-102555-2" "field_cover" => array:1 [ 0 => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" ] "field_cover_alts" => array:1 [ 0 => "" ] "field_covers" => array:1 [ 0 => array:4 [ "path" => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" "alt" => "" "width" => "1350" "height" => "1772" ] ] "field_popular_book" => null "field_recommended_books" => Illuminate\Database\Eloquent\Collection {#1074} "field_new_book" => Illuminate\Database\Eloquent\Collection {#1075} "field_old_book" => Illuminate\Database\Eloquent\Collection {#1076} "field_url" => "/8-klass/fizika/peryshkin-uchebnik" "field_cover_color" => Illuminate\Database\Eloquent\Collection {#1077} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "breadcrumbs" => array:3 [ "class" => 379 "subject" => 556 "class_subject" => 492 ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "branch_parent" => Illuminate\Database\Eloquent\Collection {#1079 #items: [] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 598741 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Электромагнитные явления" "field_branch_order" => "3" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1050} "field_page_start" => "183" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1081} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1079} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "parent_branches" => Illuminate\Database\Eloquent\Collection {#1110 #items: array:3 [ 0 => App\Models\Branch {#1120 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598741 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Электромагнитные явления" "field_branch_order" => "3" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1121 #items: array:1 [ 0 => App\Models\Term {#1047} ] #escapeWhenCastingToString: false } "field_page_start" => "183" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1122 #items: array:1 [ 0 => App\Models\Book {#1049} ] #escapeWhenCastingToString: false } "branch_parent" => Illuminate\Database\Eloquent\Collection {#1123 #items: [] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 598741 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Электромагнитные явления" "field_branch_order" => "3" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1121} "field_page_start" => "183" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1122} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1123} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 1 => App\Models\Branch {#1124 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598748 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Магнитное поле проводников с током и постоянных магнитов. Магнитные линии" "field_branch_order" => "52" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1128 #items: array:1 [ 0 => App\Models\Term {#1125 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:7 [ "id" => 32 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Параграф" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => "§" ] #original: array:7 [ "id" => 32 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Параграф" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => "§" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_page_start" => "189" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1127 #items: array:1 [ 0 => App\Models\Book {#1049} ] #escapeWhenCastingToString: false } "branch_parent" => Illuminate\Database\Eloquent\Collection {#1126 #items: array:1 [ 0 => App\Models\Branch {#1045} ] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 598748 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Магнитное поле проводников с током и постоянных магнитов. Магнитные линии" "field_branch_order" => "52" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1128} "field_page_start" => "189" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1127} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1126} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 2 => App\Models\Branch {#1129 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598750 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Упражнение 43" "field_branch_order" => null "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1130 #items: [] #escapeWhenCastingToString: false } "field_page_start" => "192" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1131 #items: array:1 [ 0 => App\Models\Book {#1049} ] #escapeWhenCastingToString: false } "branch_parent" => Illuminate\Database\Eloquent\Collection {#1140 #items: array:1 [ 0 => App\Models\Branch {#1139 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598748 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Магнитное поле проводников с током и постоянных магнитов. Магнитные линии" "field_branch_order" => "52" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1141 …2} "field_page_start" => "189" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1142 …2} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1143 …2} ] #original: array:24 [ "id" => 598748 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Магнитное поле проводников с током и постоянных магнитов. Магнитные линии" "field_branch_order" => "52" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1141 …2} "field_page_start" => "189" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1142 …2} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1143 …2} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 598750 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Упражнение 43" "field_branch_order" => null "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1130} "field_page_start" => "192" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1131} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1140} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "content" => Illuminate\Database\Eloquent\Collection {#1038 #items: array:4 [ 0 => App\Models\Element {#1101 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:7 [ "id" => 746159 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1090 #items: array:1 [ 0 => App\Models\Edition {#1098 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1636 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Условие" "field_order" => "1" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1096 …2} "field_content_type" => "free" "field_content_mode" => "text, image" "field_page_content_mode" => "image" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Автор" "field_moderator" => "stas" "field_edition_type" => "statement" "field_root_dir" => "0-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1097 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1095 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1094 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1636 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Условие" "field_order" => "1" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1096 …2} "field_content_type" => "free" "field_content_mode" => "text, image" "field_page_content_mode" => "image" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Автор" "field_moderator" => "stas" "field_edition_type" => "statement" "field_root_dir" => "0-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1097 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1095 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1094 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599352" "type" => "task" ] "text" => """ <p><strong>1</strong>. На рисунке 129 изображён проволочный прямоугольник, направление тока в нём показано стрелками. Перечертите рисунок в тетрадь и, пользуясь правилом буравчика, начертите вокруг каждой из его четырёх сторон по одной магнитной линии, указав стрелкой её направление.</p><figure><figure class="align-center">\n <img src="/media/fizika_08/Peryshkin-u23/0-52-2/1.webp?ts=1743628937" alt="Пользуясь правилом буравчика, начертите вокруг каждой из его четырёх сторон по одной магнитной линии, указав стрелкой её направление" loading="lazy" width="388" height="425">\n </figure>\n <figcaption> </figcaption></figure> """ "img" => array:2 [ 0 => array:5 [ "name" => "1-1.png" "alt" => null "width" => "592" "height" => 188 "path" => "/media/fizika_08/Peryshkin-u23/0-52-2/1-1.webp?ts=1738081034" ] 1 => array:5 [ "name" => "1-2.png" "alt" => null "width" => "225" "height" => 228 "path" => "/media/fizika_08/Peryshkin-u23/0-52-2/1-2.webp?ts=1738081034" ] ] ] #original: array:7 [ "id" => 746159 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1090} "task" => array:2 [ "refs" => "599352" "type" => "task" ] "text" => """ <p><strong>1</strong>. На рисунке 129 изображён проволочный прямоугольник, направление тока в нём показано стрелками. Перечертите рисунок в тетрадь и, пользуясь правилом буравчика, начертите вокруг каждой из его четырёх сторон по одной магнитной линии, указав стрелкой её направление.</p><figure><figure class="align-center">\n <img src="/media/fizika_08/Peryshkin-u23/0-52-2/1.webp?ts=1743628937" alt="Пользуясь правилом буравчика, начертите вокруг каждой из его четырёх сторон по одной магнитной линии, указав стрелкой её направление" loading="lazy" width="388" height="425">\n </figure>\n <figcaption> </figcaption></figure> """ "img" => array:2 [ 0 => array:5 [ "name" => "1-1.png" "alt" => null "width" => "592" "height" => 188 "path" => "/media/fizika_08/Peryshkin-u23/0-52-2/1-1.webp?ts=1738081034" ] 1 => array:5 [ "name" => "1-2.png" "alt" => null "width" => "225" "height" => 228 "path" => "/media/fizika_08/Peryshkin-u23/0-52-2/1-2.webp?ts=1738081034" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 1 => App\Models\Element {#1092 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 746397 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1084 #items: array:1 [ 0 => App\Models\Edition {#1093 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1637 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 1" "field_order" => "2" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1088 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Колесникович" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "1-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1089 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1087 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1085 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1637 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 1" "field_order" => "2" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1088 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Колесникович" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "1-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1089 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1087 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1085 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599352" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "1-1.jpg" "alt" => null "width" => "1314" "height" => 934 "path" => "/media/fizika_08/Peryshkin-u23/1-52-2/1-1.webp?ts=1738081081" ] ] ] #original: array:6 [ "id" => 746397 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1084} "task" => array:2 [ "refs" => "599352" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "1-1.jpg" "alt" => null "width" => "1314" "height" => 934 "path" => "/media/fizika_08/Peryshkin-u23/1-52-2/1-1.webp?ts=1738081081" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 2 => App\Models\Element {#1086 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 747540 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1109 #items: array:1 [ 0 => App\Models\Edition {#1083 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1639 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 3" "field_order" => "4" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1082 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "2-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1043 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1041 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1034 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1639 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 3" "field_order" => "4" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1082 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "2-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1043 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1041 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1034 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599352" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "1-1.png" "alt" => null "width" => "849" "height" => 623 "path" => "/media/fizika_08/Peryshkin-u23/2-52-2/1-1.webp?ts=1738081196" ] ] ] #original: array:6 [ "id" => 747540 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1109} "task" => array:2 [ "refs" => "599352" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "1-1.png" "alt" => null "width" => "849" "height" => 623 "path" => "/media/fizika_08/Peryshkin-u23/2-52-2/1-1.webp?ts=1738081196" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 3 => App\Models\Element {#1039 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 1467157 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1132 #items: array:1 [ 0 => App\Models\Edition {#1111 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 5406 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 4" "field_order" => "5" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1118 …2} "field_content_type" => "free" "field_content_mode" => "text" "field_page_content_mode" => "" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Gemini 2.5 Pro" "field_moderator" => "tolik" "field_edition_type" => "solution" "field_root_dir" => "4-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1114 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1112 …2} "field_process_formula" => "katex" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1115 …2} "field_content_source" => null ] #original: array:21 [ "id" => 5406 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 4" "field_order" => "5" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1118 …2} "field_content_type" => "free" "field_content_mode" => "text" "field_page_content_mode" => "" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Gemini 2.5 Pro" "field_moderator" => "tolik" "field_edition_type" => "solution" "field_root_dir" => "4-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1114 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1112 …2} "field_process_formula" => "katex" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1115 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599352" "type" => "task" ] "text" => "<p><strong>1.</strong> <strong>Решение</strong></p><p>Для определения направления магнитных линий, создаваемых током в проводнике, используется правило буравчика, также известное как правило правой руки. Правило гласит: <em>если направить большой палец правой руки по направлению тока в проводнике, то четыре согнутых пальца, обхватывающие проводник, укажут направление линий магнитного поля</em>. Эти линии представляют собой замкнутые окружности, лежащие в плоскостях, перпендикулярных проводнику.</p><p>В соответствии с направлением стрелок на исходном рисунке, электрический ток втекает в правый вывод, движется по прямоугольному контуру по часовой стрелке и вытекает из левого вывода. Применим правило правой руки для каждой из четырёх сторон прямоугольника:</p><ul><li><strong>Правая сторона:</strong> Ток направлен вверх. Располагаем правую руку так, чтобы большой палец указывал вверх. Согнутые пальцы покажут, что магнитные линии огибают проводник против часовой стрелки (если смотреть на проводник сверху). Внутри контура поле будет направлено «от нас» (в плоскость рисунка), а снаружи — «к нам».</li><li><strong>Верхняя сторона:</strong> Ток направлен влево. Большой палец направляем влево. Согнутые пальцы покажут, что магнитные линии огибают проводник против часовой стрелки (если смотреть на проводник слева). Внутри контура поле также будет направлено «от нас».</li><li><strong>Левая сторона:</strong> Ток направлен вниз. Большой палец направляем вниз. Согнутые пальцы покажут, что магнитные линии огибают проводник по часовой стрелке (если смотреть на проводник снизу). Внутри контура поле снова будет направлено «от нас».</li><li><strong>Нижняя сторона:</strong> Ток направлен вправо. Большой палец направляем вправо. Согнутые пальцы покажут, что магнитные линии огибают проводник по часовой стрелке (если смотреть на проводник справа). Внутри контура поле также направлено «от нас».</li></ul><p>Таким образом, магнитные поля от всех четырёх сторон складываются, и внутри контура суммарное магнитное поле направлено перпендикулярно плоскости рисунка, «от нас». На рисунке ниже показан проволочный прямоугольник и по одной магнитной линии для каждой его стороны с указанием направления.</p><svg width="400" height="320" viewBox="0 0 400 320" aria-label="Рисунок, показывающий прямоугольный контур с током и направления магнитных линий вокруг каждой стороны."><path d="M 100 220 C 100 240, 80 250, 80 270" stroke="#607D8B" stroke-width="8" fill="none" stroke-linecap="round"></path><path d="M 300 220 C 300 240, 320 250, 320 270" stroke="#607D8B" stroke-width="8" fill="none" stroke-linecap="round"></path><rect x="100" y="80" width="200" height="140" rx="15" ry="15" stroke="#607D8B" stroke-width="8" fill="none"></rect><path d="M 320 275 L 320 245" stroke="red" stroke-width="3"></path><polygon points="315,255 325,255 320,245" fill="red"></polygon><path d="M 80 245 L 80 275" stroke="red" stroke-width="3"></path><polygon points="75,265 85,265 80,275" fill="red"></polygon><ellipse cx="200" cy="80" rx="50" ry="15" stroke="#0000FF" stroke-width="2" fill="none" stroke-dasharray="5 3"></ellipse><polygon points="150,78 145,73 155,73" fill="#0000FF" transform="rotate(-20, 150, 78)"></polygon><ellipse cx="200" cy="220" rx="50" ry="15" stroke="#0000FF" stroke-width="2" fill="none" stroke-dasharray="5 3"></ellipse><polygon points="250,222 255,227 245,227" fill="#0000FF" transform="rotate(20, 250, 222)"></polygon><ellipse cx="100" cy="150" rx="15" ry="50" stroke="#0000FF" stroke-width="2" fill="none" stroke-dasharray="5 3"></ellipse><polygon points="98,200 93,195 93,205" fill="#0000FF" transform="rotate(-20, 98, 200)"></polygon><ellipse cx="300" cy="150" rx="15" ry="50" stroke="#0000FF" stroke-width="2" fill="none" stroke-dasharray="5 3"></ellipse><polygon points="302,100 307,105 307,95" fill="#0000FF" transform="rotate(20, 302, 100)"></polygon></svg><p><strong>Ответ:</strong></p><p>Используя правило буравчика (правило правой руки), определяем направление магнитных линий вокруг каждой стороны прямоугольного контура, по которому течёт ток по часовой стрелке. Магнитные линии представляют собой замкнутые кривые, охватывающие проводник. Направление этих линий показано стрелками на представленном выше рисунке. Для всех сторон контура магнитное поле внутри него направлено одинаково — перпендикулярно плоскости контура, «от нас».</p>" ] #original: array:6 [ "id" => 1467157 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1132} "task" => array:2 [ "refs" => "599352" "type" => "task" ] "text" => "<p><strong>1.</strong> <strong>Решение</strong></p><p>Для определения направления магнитных линий, создаваемых током в проводнике, используется правило буравчика, также известное как правило правой руки. Правило гласит: <em>если направить большой палец правой руки по направлению тока в проводнике, то четыре согнутых пальца, обхватывающие проводник, укажут направление линий магнитного поля</em>. Эти линии представляют собой замкнутые окружности, лежащие в плоскостях, перпендикулярных проводнику.</p><p>В соответствии с направлением стрелок на исходном рисунке, электрический ток втекает в правый вывод, движется по прямоугольному контуру по часовой стрелке и вытекает из левого вывода. Применим правило правой руки для каждой из четырёх сторон прямоугольника:</p><ul><li><strong>Правая сторона:</strong> Ток направлен вверх. Располагаем правую руку так, чтобы большой палец указывал вверх. Согнутые пальцы покажут, что магнитные линии огибают проводник против часовой стрелки (если смотреть на проводник сверху). Внутри контура поле будет направлено «от нас» (в плоскость рисунка), а снаружи — «к нам».</li><li><strong>Верхняя сторона:</strong> Ток направлен влево. Большой палец направляем влево. Согнутые пальцы покажут, что магнитные линии огибают проводник против часовой стрелки (если смотреть на проводник слева). Внутри контура поле также будет направлено «от нас».</li><li><strong>Левая сторона:</strong> Ток направлен вниз. Большой палец направляем вниз. Согнутые пальцы покажут, что магнитные линии огибают проводник по часовой стрелке (если смотреть на проводник снизу). Внутри контура поле снова будет направлено «от нас».</li><li><strong>Нижняя сторона:</strong> Ток направлен вправо. Большой палец направляем вправо. Согнутые пальцы покажут, что магнитные линии огибают проводник по часовой стрелке (если смотреть на проводник справа). Внутри контура поле также направлено «от нас».</li></ul><p>Таким образом, магнитные поля от всех четырёх сторон складываются, и внутри контура суммарное магнитное поле направлено перпендикулярно плоскости рисунка, «от нас». На рисунке ниже показан проволочный прямоугольник и по одной магнитной линии для каждой его стороны с указанием направления.</p><svg width="400" height="320" viewBox="0 0 400 320" aria-label="Рисунок, показывающий прямоугольный контур с током и направления магнитных линий вокруг каждой стороны."><path d="M 100 220 C 100 240, 80 250, 80 270" stroke="#607D8B" stroke-width="8" fill="none" stroke-linecap="round"></path><path d="M 300 220 C 300 240, 320 250, 320 270" stroke="#607D8B" stroke-width="8" fill="none" stroke-linecap="round"></path><rect x="100" y="80" width="200" height="140" rx="15" ry="15" stroke="#607D8B" stroke-width="8" fill="none"></rect><path d="M 320 275 L 320 245" stroke="red" stroke-width="3"></path><polygon points="315,255 325,255 320,245" fill="red"></polygon><path d="M 80 245 L 80 275" stroke="red" stroke-width="3"></path><polygon points="75,265 85,265 80,275" fill="red"></polygon><ellipse cx="200" cy="80" rx="50" ry="15" stroke="#0000FF" stroke-width="2" fill="none" stroke-dasharray="5 3"></ellipse><polygon points="150,78 145,73 155,73" fill="#0000FF" transform="rotate(-20, 150, 78)"></polygon><ellipse cx="200" cy="220" rx="50" ry="15" stroke="#0000FF" stroke-width="2" fill="none" stroke-dasharray="5 3"></ellipse><polygon points="250,222 255,227 245,227" fill="#0000FF" transform="rotate(20, 250, 222)"></polygon><ellipse cx="100" cy="150" rx="15" ry="50" stroke="#0000FF" stroke-width="2" fill="none" stroke-dasharray="5 3"></ellipse><polygon points="98,200 93,195 93,205" fill="#0000FF" transform="rotate(-20, 98, 200)"></polygon><ellipse cx="300" cy="150" rx="15" ry="50" stroke="#0000FF" stroke-width="2" fill="none" stroke-dasharray="5 3"></ellipse><polygon points="302,100 307,105 307,95" fill="#0000FF" transform="rotate(20, 302, 100)"></polygon></svg><p><strong>Ответ:</strong></p><p>Используя правило буравчика (правило правой руки), определяем направление магнитных линий вокруг каждой стороны прямоугольного контура, по которому течёт ток по часовой стрелке. Магнитные линии представляют собой замкнутые кривые, охватывающие проводник. Направление этих линий показано стрелками на представленном выше рисунке. Для всех сторон контура магнитное поле внутри него направлено одинаково — перпендикулярно плоскости контура, «от нас».</p>" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "next" => array:2 [ "refs" => "599353" "type" => "task" ] "previous" => array:2 [ "refs" => "599351" "type" => "task" ] "book" => Illuminate\Database\Eloquent\Collection {#1102 #items: array:1 [ 0 => App\Models\Book {#1049} ] #escapeWhenCastingToString: false } "page" => Illuminate\Database\Eloquent\Collection {#1042 #items: array:1 [ 0 => App\Models\BookPage {#1106 #connection: "mysql" #table: "book_pages" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 991556 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "192" "field_url" => "/8-klass/fizika/peryshkin-uchebnik/page-192" "field_display_title" => "192" "field_folder" => "1" "field_image_name" => "192" "field_branch_parent" => Illuminate\Database\Eloquent\Collection {#1107 #items: [] #escapeWhenCastingToString: false } "field_weight" => "0" "field_book_parent" => Illuminate\Database\Eloquent\Collection {#1040 #items: array:1 [ 0 => App\Models\Book {#1049} ] #escapeWhenCastingToString: false } "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "edition_groups" => Illuminate\Database\Eloquent\Collection {#1113 #items: [] #escapeWhenCastingToString: false } "content" => Illuminate\Database\Eloquent\Collection {#1148 #items: array:1 [ 0 => App\Models\Element {#1147 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 1173216 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1149 …2} "book_page" => array:2 [ …2] "img" => array:1 [ …1] ] #original: array:6 [ "id" => 1173216 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1149 …2} "book_page" => array:2 [ …2] "img" => array:1 [ …1] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "next" => array:2 [ "refs" => "991557" "type" => "book_page" ] "previous" => array:2 [ "refs" => "991555" "type" => "book_page" ] "tasks" => Illuminate\Database\Eloquent\Collection {#1236 #items: array:9 [ 0 => App\Models\Task {#1252 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 599346 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "192" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/52-1-1" "field_display_title" => "1" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#1253 …2} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1254 …2} "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#1255 …2} "parent_branches" => Illuminate\Database\Eloquent\Collection {#1332 …2} "content" => Illuminate\Database\Eloquent\Collection {#1325 …2} "next" => array:2 [ …2] "previous" => array:2 [ …2] "book" => Illuminate\Database\Eloquent\Collection {#1320 …2} "page" => array:2 [ …2] ] #original: array:24 [ "id" => 599346 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "192" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/52-1-1" "field_display_title" => "1" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#1253 …2} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1254 …2} "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#1255 …2} "parent_branches" => Illuminate\Database\Eloquent\Collection {#1332 …2} "content" => Illuminate\Database\Eloquent\Collection {#1325 …2} "next" => array:2 [ …2] "previous" => array:2 [ …2] "book" => Illuminate\Database\Eloquent\Collection {#1320 …2} "page" => array:2 [ …2] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 1 => App\Models\Task {#1291 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 599347 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "192" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/52-1-2" "field_display_title" => "2" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#1339 …2} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1321 …2} "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#1324 …2} "parent_branches" => Illuminate\Database\Eloquent\Collection {#1323 …2} "content" => Illuminate\Database\Eloquent\Collection {#1326 …2} "next" => array:2 [ …2] "previous" => array:2 [ …2] "book" => Illuminate\Database\Eloquent\Collection {#1297 …2} "page" => array:2 [ …2] ] #original: array:24 [ "id" => 599347 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "192" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/52-1-2" "field_display_title" => "2" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#1339 …2} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1321 …2} "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#1324 …2} "parent_branches" => Illuminate\Database\Eloquent\Collection {#1323 …2} "content" => Illuminate\Database\Eloquent\Collection {#1326 …2} "next" => array:2 [ …2] "previous" => array:2 [ …2] "book" => Illuminate\Database\Eloquent\Collection {#1297 …2} "page" => array:2 [ …2] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 2 => App\Models\Task {#1329 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 599348 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "192" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/52-1-3" "field_display_title" => "3" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#1322 …2} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1296 …2} "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#1298 …2} "parent_branches" => Illuminate\Database\Eloquent\Collection {#1301 …2} "content" => Illuminate\Database\Eloquent\Collection {#1295 …2} "next" => array:2 [ …2] "previous" => array:2 [ …2] "book" => Illuminate\Database\Eloquent\Collection {#1280 …2} "page" => array:2 [ …2] ] #original: array:24 [ "id" => 599348 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "192" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/52-1-3" "field_display_title" => "3" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#1322 …2} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1296 …2} "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#1298 …2} "parent_branches" => Illuminate\Database\Eloquent\Collection {#1301 …2} "content" => Illuminate\Database\Eloquent\Collection {#1295 …2} "next" => array:2 [ …2] "previous" => array:2 [ …2] "book" => Illuminate\Database\Eloquent\Collection {#1280 …2} "page" => array:2 [ …2] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 3 => App\Models\Task {#1303 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 599349 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "192" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/52-1-4" "field_display_title" => "4" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#1299 …2} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1283 …2} "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#1284 …2} "parent_branches" => Illuminate\Database\Eloquent\Collection {#1285 …2} "content" => Illuminate\Database\Eloquent\Collection {#1300 …2} "next" => array:2 [ …2] "previous" => array:2 [ …2] "book" => Illuminate\Database\Eloquent\Collection {#1264 …2} "page" => array:2 [ …2] ] #original: array:24 [ "id" => 599349 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "192" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/52-1-4" "field_display_title" => "4" "field_outside_task" => null …16 ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 4 => App\Models\Task {#1287 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 5 => App\Models\Task {#1286 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 6 => App\Models\Task {#1267 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 7 => App\Models\Task {#1330 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 8 => App\Models\Task {#1391 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } ] #original: array:21 [ "id" => 991556 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "192" "field_url" => "/8-klass/fizika/peryshkin-uchebnik/page-192" "field_display_title" => "192" "field_folder" => "1" "field_image_name" => "192" "field_branch_parent" => Illuminate\Database\Eloquent\Collection {#1107} "field_weight" => "0" "field_book_parent" => Illuminate\Database\Eloquent\Collection {#1040} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "edition_groups" => Illuminate\Database\Eloquent\Collection {#1113} "content" => Illuminate\Database\Eloquent\Collection {#1148} "next" => array:2 [ "refs" => "991557" "type" => "book_page" ] "previous" => array:2 [ "refs" => "991555" "type" => "book_page" ] "tasks" => Illuminate\Database\Eloquent\Collection {#1236} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 599352 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "192" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/52-2-1" "field_display_title" => "1" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#1037} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1035} "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#1046} "parent_branches" => Illuminate\Database\Eloquent\Collection {#1110} "content" => Illuminate\Database\Eloquent\Collection {#1038} "next" => array:2 [ "refs" => "599353" "type" => "task" ] "previous" => array:2 [ "refs" => "599351" "type" => "task" ] "book" => Illuminate\Database\Eloquent\Collection {#1102} "page" => array:2 [ "refs" => "991556" "type" => "book_page" ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] }
№1 (с. 192)
Условие. №1 (с. 192)
скриншот условия

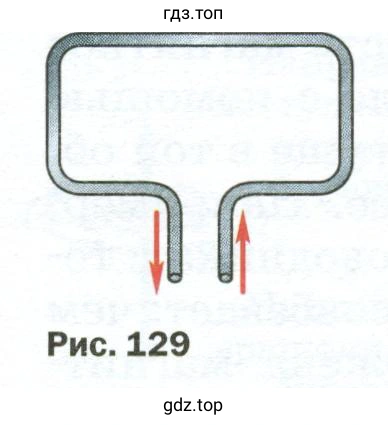

1. На рисунке 129 изображён проволочный прямоугольник, направление тока в нём показано стрелками. Перечертите рисунок в тетрадь и, пользуясь правилом буравчика, начертите вокруг каждой из его четырёх сторон по одной магнитной линии, указав стрелкой её направление.
Решение 1. №1 (с. 192)
Решение 3. №1 (с. 192)
Решение 4. №1 (с. 192)
1. Решение
Для определения направления магнитных линий, создаваемых током в проводнике, используется правило буравчика, также известное как правило правой руки. Правило гласит: если направить большой палец правой руки по направлению тока в проводнике, то четыре согнутых пальца, обхватывающие проводник, укажут направление линий магнитного поля. Эти линии представляют собой замкнутые окружности, лежащие в плоскостях, перпендикулярных проводнику.
В соответствии с направлением стрелок на исходном рисунке, электрический ток втекает в правый вывод, движется по прямоугольному контуру по часовой стрелке и вытекает из левого вывода. Применим правило правой руки для каждой из четырёх сторон прямоугольника:
- Правая сторона: Ток направлен вверх. Располагаем правую руку так, чтобы большой палец указывал вверх. Согнутые пальцы покажут, что магнитные линии огибают проводник против часовой стрелки (если смотреть на проводник сверху). Внутри контура поле будет направлено «от нас» (в плоскость рисунка), а снаружи — «к нам».
- Верхняя сторона: Ток направлен влево. Большой палец направляем влево. Согнутые пальцы покажут, что магнитные линии огибают проводник против часовой стрелки (если смотреть на проводник слева). Внутри контура поле также будет направлено «от нас».
- Левая сторона: Ток направлен вниз. Большой палец направляем вниз. Согнутые пальцы покажут, что магнитные линии огибают проводник по часовой стрелке (если смотреть на проводник снизу). Внутри контура поле снова будет направлено «от нас».
- Нижняя сторона: Ток направлен вправо. Большой палец направляем вправо. Согнутые пальцы покажут, что магнитные линии огибают проводник по часовой стрелке (если смотреть на проводник справа). Внутри контура поле также направлено «от нас».
Таким образом, магнитные поля от всех четырёх сторон складываются, и внутри контура суммарное магнитное поле направлено перпендикулярно плоскости рисунка, «от нас». На рисунке ниже показан проволочный прямоугольник и по одной магнитной линии для каждой его стороны с указанием направления.
Ответ:
Используя правило буравчика (правило правой руки), определяем направление магнитных линий вокруг каждой стороны прямоугольного контура, по которому течёт ток по часовой стрелке. Магнитные линии представляют собой замкнутые кривые, охватывающие проводник. Направление этих линий показано стрелками на представленном выше рисунке. Для всех сторон контура магнитное поле внутри него направлено одинаково — перпендикулярно плоскости контура, «от нас».
