Глава 3. Электромагнитные явления. Параграф 54. Магнитное поле Земли. Упражнение 45 - номер 1, страница 199.
App\Models\Task {#1024 // resources/views/models/task/default.blade.php #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 599372 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "199" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/54-2-1" "field_display_title" => "1" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#331 #items: array:1 [ 0 => App\Models\Term {#1029 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 26 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "номер" "field_cases" => array:6 [ "field_accusative_case" => "номер" "field_creative_case" => "номером" "field_dative_case" => "номеру" "field_genitive_case" => "номера" "field_nominative_case" => "номер" "field_prepositional_case" => "номере" ] "field_short_name" => "№" ] #original: array:6 [ "id" => 26 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "номер" "field_cases" => array:6 [ "field_accusative_case" => "номер" "field_creative_case" => "номером" "field_dative_case" => "номеру" "field_genitive_case" => "номера" "field_nominative_case" => "номер" "field_prepositional_case" => "номере" ] "field_short_name" => "№" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1026 #items: [] #escapeWhenCastingToString: false } "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#342 #items: array:1 [ 0 => App\Models\Branch {#1023 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598741 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Электромагнитные явления" "field_branch_order" => "3" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#333 #items: array:1 [ 0 => App\Models\Term {#1033 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:7 [ "id" => 29 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Глава" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => null ] #original: array:7 [ "id" => 29 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Глава" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_page_start" => "183" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1030 #items: array:1 [ 0 => App\Models\Book {#1032 #connection: "mysql" #table: "books" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:50 [ "id" => 51 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_tree_default_status" => "tasks" "field_pages_status" => null "field_subject" => Illuminate\Database\Eloquent\Collection {#1034 #items: array:1 [ 0 => App\Models\Term {#1035 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:10 [ "id" => 6493 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Физика" "field_abbreviated_name" => null "field_cases" => array:6 [ …6] "field_foreign_lang_name" => null "field_short_name" => null "field_subject_type" => "technical_subject" "field_translit" => "fizika" ] #original: array:10 [ "id" => 6493 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Физика" "field_abbreviated_name" => null "field_cases" => array:6 [ …6] "field_foreign_lang_name" => null "field_short_name" => null "field_subject_type" => "technical_subject" "field_translit" => "fizika" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_class" => Illuminate\Database\Eloquent\Collection {#1036 #items: array:1 [ 0 => App\Models\Term {#1037 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 5457 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "8" "field_cases" => array:6 [ …6] "field_translit" => "vosmoj" ] #original: array:6 [ "id" => 5457 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "8" "field_cases" => array:6 [ …6] "field_translit" => "vosmoj" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_publisher" => Illuminate\Database\Eloquent\Collection {#1038 #items: array:1 [ 0 => App\Models\Term {#1039 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 5153 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Просвещение" "field_cases" => null "field_translit" => "prosveschenie" ] #original: array:6 [ "id" => 5153 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Просвещение" "field_cases" => null "field_translit" => "prosveschenie" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_author" => Illuminate\Database\Eloquent\Collection {#1040 #items: array:1 [ 0 => App\Models\Term {#1041 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:12 [ "id" => 6884 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Пёрышкин" "field_bio" => null "field_degree_rp" => null "field_foreign_lang_name" => null "field_foreign_lang_patronymic" => null "field_foreign_lang_surname" => null "field_name" => "И" "field_patronymic" => "М" "field_surname_rp" => null ] #original: array:12 [ "id" => 6884 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Пёрышкин" "field_bio" => null "field_degree_rp" => null "field_foreign_lang_name" => null "field_foreign_lang_patronymic" => null "field_foreign_lang_surname" => null "field_name" => "И" "field_patronymic" => "М" "field_surname_rp" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_author_foreign" => Illuminate\Database\Eloquent\Collection {#1042 #items: [] #escapeWhenCastingToString: false } "field_book_type" => Illuminate\Database\Eloquent\Collection {#1043 #items: array:1 [ 0 => App\Models\Term {#1044 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:10 [ "id" => 6671 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Учебник" "field_book_type_foreign" => null "field_cases" => array:6 [ …6] "field_plural_form" => null "field_short_name" => null "field_short_name_foreign" => null "field_translit" => "uchebnik" ] #original: array:10 [ "id" => 6671 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Учебник" "field_book_type_foreign" => null "field_cases" => array:6 [ …6] "field_plural_form" => null "field_short_name" => null "field_short_name_foreign" => null "field_translit" => "uchebnik" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_country" => Illuminate\Database\Eloquent\Collection {#1045 #items: array:1 [ 0 => App\Models\Term {#1046 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 9 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Россия" "field_cases" => array:6 [ …6] "field_translit" => "rossiya" ] #original: array:6 [ "id" => 9 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Россия" "field_cases" => array:6 [ …6] "field_translit" => "rossiya" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_city" => Illuminate\Database\Eloquent\Collection {#1047 #items: array:1 [ 0 => App\Models\Term {#1048 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 15 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Москва" "field_cases" => array:6 [ …6] "field_translit" => "moskva" ] #original: array:6 [ "id" => 15 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Москва" "field_cases" => array:6 [ …6] "field_translit" => "moskva" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_series" => Illuminate\Database\Eloquent\Collection {#1049 #items: [] #escapeWhenCastingToString: false } "field_umk" => Illuminate\Database\Eloquent\Collection {#1050 #items: [] #escapeWhenCastingToString: false } "field_level_of_education" => Illuminate\Database\Eloquent\Collection {#1051 #items: array:1 [ 0 => App\Models\Term {#1052 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 38 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "базовый" "field_cases" => array:6 [ …6] "field_translit" => "bazovyy" ] #original: array:6 [ "id" => 38 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "базовый" "field_cases" => array:6 [ …6] "field_translit" => "bazovyy" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_standart_of_education" => Illuminate\Database\Eloquent\Collection {#1053 #items: array:1 [ 0 => App\Models\Term {#1054 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:10 [ "id" => 25 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "ФГОС (новый)" "field_cases" => array:6 [ …6] "field_color" => "красный" "field_end_year" => "2027" "field_start_year" => "2023" "field_translit" => "fgos" "field_type" => "новый" ] #original: array:10 [ "id" => 25 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "ФГОС (новый)" "field_cases" => array:6 [ …6] "field_color" => "красный" "field_end_year" => "2027" "field_start_year" => "2023" "field_translit" => "fgos" "field_type" => "новый" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_publication_number" => "3" "field_publication_type" => Illuminate\Database\Eloquent\Collection {#1055 #items: array:1 [ 0 => App\Models\Term {#1056 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 34 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "переработанное" "field_cases" => array:6 [ …6] "field_translit" => "pererabotannoe" ] #original: array:6 [ "id" => 34 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "переработанное" "field_cases" => array:6 [ …6] "field_translit" => "pererabotannoe" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_under_the_edition" => Illuminate\Database\Eloquent\Collection {#1057 #items: [] #escapeWhenCastingToString: false } "field_under_the_edition_degree" => null "field_cover_description" => "с градусником" "field_publication_year" => "2023" "field_publication_year_until" => null "field_part" => "" "field_part_writing" => "" "field_second_foreign_language" => null "field_for_whom" => null "field_allowed" => "Допущено Министерством просвещения Российской Федерации" "field_reserve_field" => null "field_link_to_source" => null "field_tasks_count" => "706" "field_priority" => "2" "field_default_folder" => "/fizika_08/Peryshkin-u23/" "field_isbn" => "978-5-09-102555-2" "field_cover" => array:1 [ 0 => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" ] "field_cover_alts" => array:1 [ 0 => "" ] "field_covers" => array:1 [ 0 => array:4 [ "path" => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" "alt" => "" "width" => "1350" "height" => "1772" ] ] "field_popular_book" => null "field_recommended_books" => Illuminate\Database\Eloquent\Collection {#1058 #items: [] #escapeWhenCastingToString: false } "field_new_book" => Illuminate\Database\Eloquent\Collection {#1059 #items: [] #escapeWhenCastingToString: false } "field_old_book" => Illuminate\Database\Eloquent\Collection {#1060 #items: [] #escapeWhenCastingToString: false } "field_url" => "/8-klass/fizika/peryshkin-uchebnik" "field_cover_color" => Illuminate\Database\Eloquent\Collection {#1061 #items: array:1 [ 0 => App\Models\Term {#1062 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 45 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "белый" "field_cases" => array:6 [ …6] "field_translit" => "belyy" ] #original: array:6 [ "id" => 45 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "белый" "field_cases" => array:6 [ …6] "field_translit" => "belyy" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "breadcrumbs" => array:3 [ "class" => 379 "subject" => 556 "class_subject" => 492 ] ] #original: array:50 [ "id" => 51 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_tree_default_status" => "tasks" "field_pages_status" => null "field_subject" => Illuminate\Database\Eloquent\Collection {#1034} "field_class" => Illuminate\Database\Eloquent\Collection {#1036} "field_publisher" => Illuminate\Database\Eloquent\Collection {#1038} "field_author" => Illuminate\Database\Eloquent\Collection {#1040} "field_author_foreign" => Illuminate\Database\Eloquent\Collection {#1042} "field_book_type" => Illuminate\Database\Eloquent\Collection {#1043} "field_country" => Illuminate\Database\Eloquent\Collection {#1045} "field_city" => Illuminate\Database\Eloquent\Collection {#1047} "field_series" => Illuminate\Database\Eloquent\Collection {#1049} "field_umk" => Illuminate\Database\Eloquent\Collection {#1050} "field_level_of_education" => Illuminate\Database\Eloquent\Collection {#1051} "field_standart_of_education" => Illuminate\Database\Eloquent\Collection {#1053} "field_publication_number" => "3" "field_publication_type" => Illuminate\Database\Eloquent\Collection {#1055} "field_under_the_edition" => Illuminate\Database\Eloquent\Collection {#1057} "field_under_the_edition_degree" => null "field_cover_description" => "с градусником" "field_publication_year" => "2023" "field_publication_year_until" => null "field_part" => "" "field_part_writing" => "" "field_second_foreign_language" => null "field_for_whom" => null "field_allowed" => "Допущено Министерством просвещения Российской Федерации" "field_reserve_field" => null "field_link_to_source" => null "field_tasks_count" => "706" "field_priority" => "2" "field_default_folder" => "/fizika_08/Peryshkin-u23/" "field_isbn" => "978-5-09-102555-2" "field_cover" => array:1 [ 0 => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" ] "field_cover_alts" => array:1 [ 0 => "" ] "field_covers" => array:1 [ 0 => array:4 [ "path" => "/media/fizika_08/Peryshkin-u23/covers/cover1.webp?ts=1737917825" "alt" => "" "width" => "1350" "height" => "1772" ] ] "field_popular_book" => null "field_recommended_books" => Illuminate\Database\Eloquent\Collection {#1058} "field_new_book" => Illuminate\Database\Eloquent\Collection {#1059} "field_old_book" => Illuminate\Database\Eloquent\Collection {#1060} "field_url" => "/8-klass/fizika/peryshkin-uchebnik" "field_cover_color" => Illuminate\Database\Eloquent\Collection {#1061} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "breadcrumbs" => array:3 [ "class" => 379 "subject" => 556 "class_subject" => 492 ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "branch_parent" => Illuminate\Database\Eloquent\Collection {#1063 #items: [] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 598741 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Электромагнитные явления" "field_branch_order" => "3" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#333} "field_page_start" => "183" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1030} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1063} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "parent_branches" => Illuminate\Database\Eloquent\Collection {#1064 #items: array:3 [ 0 => App\Models\Branch {#1023} 1 => App\Models\Branch {#1065 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598755 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Магнитное поле Земли" "field_branch_order" => "54" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1066 #items: array:1 [ 0 => App\Models\Term {#1067 #connection: "mysql" #table: "terms" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:7 [ "id" => 32 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Параграф" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => "§" ] #original: array:7 [ "id" => 32 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "name" => "Параграф" "field_cases" => array:6 [ …6] "field_page_check_not_needed" => null "field_short_name" => "§" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "field_page_start" => "197" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1068 #items: array:1 [ 0 => App\Models\Book {#1032} ] #escapeWhenCastingToString: false } "branch_parent" => Illuminate\Database\Eloquent\Collection {#1069 #items: array:1 [ 0 => App\Models\Branch {#1070 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598741 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Электромагнитные явления" "field_branch_order" => "3" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1071 …2} "field_page_start" => "183" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1072 …2} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1073 …2} ] #original: array:24 [ "id" => 598741 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Электромагнитные явления" "field_branch_order" => "3" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1071 …2} "field_page_start" => "183" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1072 …2} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1073 …2} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 598755 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Магнитное поле Земли" "field_branch_order" => "54" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1066} "field_page_start" => "197" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1068} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1069} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 2 => App\Models\Branch {#1074 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598757 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Упражнение 45" "field_branch_order" => null "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1075 #items: [] #escapeWhenCastingToString: false } "field_page_start" => "199" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1076 #items: array:1 [ 0 => App\Models\Book {#1032} ] #escapeWhenCastingToString: false } "branch_parent" => Illuminate\Database\Eloquent\Collection {#1077 #items: array:1 [ 0 => App\Models\Branch {#1078 #connection: "mysql" #table: "branches" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ "id" => 598755 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Магнитное поле Земли" "field_branch_order" => "54" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1079 …2} "field_page_start" => "197" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1080 …2} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1081 …2} ] #original: array:24 [ "id" => 598755 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Магнитное поле Земли" "field_branch_order" => "54" "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1079 …2} "field_page_start" => "197" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1080 …2} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1081 …2} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 598757 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_display_title" => "Упражнение 45" "field_branch_order" => null "field_url" => null "field_branch_type" => Illuminate\Database\Eloquent\Collection {#1075} "field_page_start" => "199" "field_branch_display" => "0" "field_branch_expanded" => "0" "field_display_branch_in_title" => "1" "field_display_task_interval" => "0" "field_display_branch_page" => "1" "field_branch_title_in_content" => "0" "field_navigation_title" => null "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_branch_cover" => [] "field_branch_covers" => [] "book" => Illuminate\Database\Eloquent\Collection {#1076} "branch_parent" => Illuminate\Database\Eloquent\Collection {#1077} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "content" => Illuminate\Database\Eloquent\Collection {#1082 #items: array:5 [ 0 => App\Models\Element {#1083 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:7 [ "id" => 746232 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1084 #items: array:1 [ 0 => App\Models\Edition {#1085 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1636 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Условие" "field_order" => "1" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1086 …2} "field_content_type" => "free" "field_content_mode" => "text, image" "field_page_content_mode" => "image" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Автор" "field_moderator" => "stas" "field_edition_type" => "statement" "field_root_dir" => "0-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1088 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1089 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1090 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1636 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Условие" "field_order" => "1" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1086 …2} "field_content_type" => "free" "field_content_mode" => "text, image" "field_page_content_mode" => "image" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Автор" "field_moderator" => "stas" "field_edition_type" => "statement" "field_root_dir" => "0-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1088 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1089 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1090 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599372" "type" => "task" ] "text" => "<p> <b>1</b>. Каково устройство и принцип действия компаса? </p>" "img" => array:1 [ 0 => array:5 [ "name" => "1-1.png" "alt" => null "width" => "567" "height" => 75 "path" => "/media/fizika_08/Peryshkin-u23/0-54-2/1-1.webp?ts=1738081047" ] ] ] #original: array:7 [ "id" => 746232 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1084} "task" => array:2 [ "refs" => "599372" "type" => "task" ] "text" => "<p> <b>1</b>. Каково устройство и принцип действия компаса? </p>" "img" => array:1 [ 0 => array:5 [ "name" => "1-1.png" "alt" => null "width" => "567" "height" => 75 "path" => "/media/fizika_08/Peryshkin-u23/0-54-2/1-1.webp?ts=1738081047" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 1 => App\Models\Element {#1091 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 746487 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1092 #items: array:1 [ 0 => App\Models\Edition {#1093 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1637 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 1" "field_order" => "2" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1094 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Колесникович" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "1-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1096 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1097 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1098 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1637 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 1" "field_order" => "2" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1094 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Колесникович" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "1-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1096 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1097 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1098 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599372" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "1-1.jpg" "alt" => null "width" => "2087" "height" => 1955 "path" => "/media/fizika_08/Peryshkin-u23/1-54-2/1-1.webp?ts=1738081098" ] ] ] #original: array:6 [ "id" => 746487 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1092} "task" => array:2 [ "refs" => "599372" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "1-1.jpg" "alt" => null "width" => "2087" "height" => 1955 "path" => "/media/fizika_08/Peryshkin-u23/1-54-2/1-1.webp?ts=1738081098" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 2 => App\Models\Element {#1099 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 747419 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1100 #items: array:1 [ 0 => App\Models\Edition {#1101 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1638 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 2" "field_order" => "3" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1102 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "3-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1104 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1105 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1106 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1638 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 2" "field_order" => "3" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1102 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "3-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1104 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1105 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1106 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599372" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "1-1.png" "alt" => null "width" => "700" "height" => 1265 "path" => "/media/fizika_08/Peryshkin-u23/3-54-2/1-1.webp?ts=1738081106" ] ] ] #original: array:6 [ "id" => 747419 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1100} "task" => array:2 [ "refs" => "599372" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "1-1.png" "alt" => null "width" => "700" "height" => 1265 "path" => "/media/fizika_08/Peryshkin-u23/3-54-2/1-1.webp?ts=1738081106" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 3 => App\Models\Element {#1107 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 747560 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1108 #items: array:1 [ 0 => App\Models\Edition {#1109 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 1639 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 3" "field_order" => "4" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1110 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "2-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1112 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1113 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1114 …2} "field_content_source" => null ] #original: array:21 [ "id" => 1639 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 3" "field_order" => "4" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1110 …2} "field_content_type" => "free" "field_content_mode" => "image" "field_page_content_mode" => "" "field_content_text_checked" => "0" "field_page_content_text_checked" => "0" "field_solution_author" => "Неизвестный" "field_moderator" => "stas" "field_edition_type" => "solution" "field_root_dir" => "2-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1112 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1113 …2} "field_process_formula" => "" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1114 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599372" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "1-1.png" "alt" => null "width" => "852" "height" => 655 "path" => "/media/fizika_08/Peryshkin-u23/2-54-2/1-1.webp?ts=1738081211" ] ] ] #original: array:6 [ "id" => 747560 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1108} "task" => array:2 [ "refs" => "599372" "type" => "task" ] "img" => array:1 [ 0 => array:5 [ "name" => "1-1.png" "alt" => null "width" => "852" "height" => 655 "path" => "/media/fizika_08/Peryshkin-u23/2-54-2/1-1.webp?ts=1738081211" ] ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } 4 => App\Models\Element {#1115 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ "id" => 1467177 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1116 #items: array:1 [ 0 => App\Models\Edition {#1117 #connection: "mysql" #table: "editions" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 5406 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 4" "field_order" => "5" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1118 …2} "field_content_type" => "free" "field_content_mode" => "text" "field_page_content_mode" => "" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Gemini 2.5 Pro" "field_moderator" => "tolik" "field_edition_type" => "solution" "field_root_dir" => "4-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1120 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1121 …2} "field_process_formula" => "katex" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1122 …2} "field_content_source" => null ] #original: array:21 [ "id" => 5406 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "title" => "Решение 4" "field_order" => "5" "field_publisher" => Illuminate\Database\Eloquent\Collection {#1118 …2} "field_content_type" => "free" "field_content_mode" => "text" "field_page_content_mode" => "" "field_content_text_checked" => null "field_page_content_text_checked" => "0" "field_solution_author" => "Gemini 2.5 Pro" "field_moderator" => "tolik" "field_edition_type" => "solution" "field_root_dir" => "4-" "field_responsible" => Illuminate\Database\Eloquent\Collection {#1120 …2} "field_comment" => null "field_similar_book" => Illuminate\Database\Eloquent\Collection {#1121 …2} "field_process_formula" => "katex" "field_edition_group" => Illuminate\Database\Eloquent\Collection {#1122 …2} "field_content_source" => null ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "task" => array:2 [ "refs" => "599372" "type" => "task" ] "text" => "<p><strong>Устройство компаса</strong></p><p>Классический магнитный компас, прибор для ориентирования на местности, состоит из нескольких ключевых частей. <strong>Корпус</strong>, обычно круглый и изготовленный из немагнитного материала (пластика, латуни), защищает внутренние механизмы. Центральным элементом является <strong>магнитная стрелка</strong> — легкий, сбалансированный постоянный магнит, установленный на острой игле для свободного вращения с минимальным трением. Один конец стрелки (северный) обычно окрашен для удобства. Под стрелкой расположена <strong>шкала (лимб)</strong> — круговой циферблат с делениями в градусах (от 0° до 360°) и обозначениями сторон света (С, Ю, З, В). В современных <strong>жидкостных компасах</strong> корпус заполнен специальной жидкостью (маслом, керосином), которая гасит колебания стрелки, делая ее показания более стабильными. Сверху конструкция защищена <strong>прозрачным стеклом</strong>. Многие компасы также оснащены <strong>арретиром</strong> — тормозным механизмом, который фиксирует стрелку для предотвращения износа опоры при транспортировке.</p><p><strong>Ответ:</strong> Основными частями компаса являются корпус, свободно вращающаяся магнитная стрелка, шкала с делениями (лимб) и, в современных моделях, жидкость для стабилизации стрелки.</p><p><strong>Принцип действия компаса</strong></p><p>Принцип действия магнитного компаса основан на взаимодействии его магнитной стрелки с магнитным полем Земли. Наша планета представляет собой гигантский магнит, имеющий Южный магнитный полюс вблизи Северного географического полюса и Северный магнитный полюс вблизи Южного географического полюса.</p><p>Магнитная стрелка компаса — это, по сути, маленький стержневой магнит. Согласно фундаментальному закону магнетизма, противоположные полюса магнитов притягиваются, а одноименные — отталкиваются. Северный полюс магнитной стрелки компаса (тот, что ищет север) притягивается к Южному магнитному полюсу Земли. Поскольку этот магнитный полюс Земли находится в районе Северного географического полюса, стрелка компаса всегда выстраивается вдоль силовых линий земного магнитного поля и указывает на направление к Северному магнитному полюсу.</p><p>Таким образом, в любом месте на планете (за исключением районов вблизи магнитных полюсов, где поле становится вертикальным, и мест с магнитными аномалиями) свободно подвешенная магнитная стрелка устанавливается в направлении "север-юг". Это позволяет определить стороны света и ориентироваться на местности. Важно помнить о существовании <i>магнитного склонения</i> — угла между направлением на истинный (географический) север и магнитный север. Для точной навигации в показания компаса необходимо вносить поправку на величину магнитного склонения, которая зависит от географического местоположения.</p><p><strong>Ответ:</strong> Принцип действия компаса основан на свойстве его магнитной стрелки (которая является постоянным магнитом) ориентироваться вдоль силовых линий магнитного поля Земли, указывая одним концом на Северный магнитный полюс Земли.</p>" ] #original: array:6 [ "id" => 1467177 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "edition" => Illuminate\Database\Eloquent\Collection {#1116} "task" => array:2 [ "refs" => "599372" "type" => "task" ] "text" => "<p><strong>Устройство компаса</strong></p><p>Классический магнитный компас, прибор для ориентирования на местности, состоит из нескольких ключевых частей. <strong>Корпус</strong>, обычно круглый и изготовленный из немагнитного материала (пластика, латуни), защищает внутренние механизмы. Центральным элементом является <strong>магнитная стрелка</strong> — легкий, сбалансированный постоянный магнит, установленный на острой игле для свободного вращения с минимальным трением. Один конец стрелки (северный) обычно окрашен для удобства. Под стрелкой расположена <strong>шкала (лимб)</strong> — круговой циферблат с делениями в градусах (от 0° до 360°) и обозначениями сторон света (С, Ю, З, В). В современных <strong>жидкостных компасах</strong> корпус заполнен специальной жидкостью (маслом, керосином), которая гасит колебания стрелки, делая ее показания более стабильными. Сверху конструкция защищена <strong>прозрачным стеклом</strong>. Многие компасы также оснащены <strong>арретиром</strong> — тормозным механизмом, который фиксирует стрелку для предотвращения износа опоры при транспортировке.</p><p><strong>Ответ:</strong> Основными частями компаса являются корпус, свободно вращающаяся магнитная стрелка, шкала с делениями (лимб) и, в современных моделях, жидкость для стабилизации стрелки.</p><p><strong>Принцип действия компаса</strong></p><p>Принцип действия магнитного компаса основан на взаимодействии его магнитной стрелки с магнитным полем Земли. Наша планета представляет собой гигантский магнит, имеющий Южный магнитный полюс вблизи Северного географического полюса и Северный магнитный полюс вблизи Южного географического полюса.</p><p>Магнитная стрелка компаса — это, по сути, маленький стержневой магнит. Согласно фундаментальному закону магнетизма, противоположные полюса магнитов притягиваются, а одноименные — отталкиваются. Северный полюс магнитной стрелки компаса (тот, что ищет север) притягивается к Южному магнитному полюсу Земли. Поскольку этот магнитный полюс Земли находится в районе Северного географического полюса, стрелка компаса всегда выстраивается вдоль силовых линий земного магнитного поля и указывает на направление к Северному магнитному полюсу.</p><p>Таким образом, в любом месте на планете (за исключением районов вблизи магнитных полюсов, где поле становится вертикальным, и мест с магнитными аномалиями) свободно подвешенная магнитная стрелка устанавливается в направлении "север-юг". Это позволяет определить стороны света и ориентироваться на местности. Важно помнить о существовании <i>магнитного склонения</i> — угла между направлением на истинный (географический) север и магнитный север. Для точной навигации в показания компаса необходимо вносить поправку на величину магнитного склонения, которая зависит от географического местоположения.</p><p><strong>Ответ:</strong> Принцип действия компаса основан на свойстве его магнитной стрелки (которая является постоянным магнитом) ориентироваться вдоль силовых линий магнитного поля Земли, указывая одним концом на Северный магнитный полюс Земли.</p>" ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } "next" => array:2 [ "refs" => "599373" "type" => "task" ] "previous" => array:2 [ "refs" => "599371" "type" => "task" ] "book" => Illuminate\Database\Eloquent\Collection {#1123 #items: array:1 [ 0 => App\Models\Book {#1032} ] #escapeWhenCastingToString: false } "page" => Illuminate\Database\Eloquent\Collection {#1138 #items: array:1 [ 0 => App\Models\BookPage {#1137 #connection: "mysql" #table: "book_pages" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:21 [ "id" => 991563 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "199" "field_url" => "/8-klass/fizika/peryshkin-uchebnik/page-199" "field_display_title" => "199" "field_folder" => "1" "field_image_name" => "199" "field_branch_parent" => Illuminate\Database\Eloquent\Collection {#1139 #items: [] #escapeWhenCastingToString: false } "field_weight" => "0" "field_book_parent" => Illuminate\Database\Eloquent\Collection {#1172 #items: array:1 [ 0 => App\Models\Book {#1140 #connection: "mysql" #table: "books" #primaryKey: "id" #keyType: "int" +incrementing: false #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:50 [ "id" => 51 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_tree_default_status" => "tasks" "field_pages_status" => null "field_subject" => Illuminate\Database\Eloquent\Collection {#1142 …2} "field_class" => Illuminate\Database\Eloquent\Collection {#1143 …2} "field_publisher" => Illuminate\Database\Eloquent\Collection {#1145 …2} "field_author" => Illuminate\Database\Eloquent\Collection {#1147 …2} "field_author_foreign" => Illuminate\Database\Eloquent\Collection {#1149 …2} "field_book_type" => Illuminate\Database\Eloquent\Collection {#1150 …2} "field_country" => Illuminate\Database\Eloquent\Collection {#1152 …2} "field_city" => Illuminate\Database\Eloquent\Collection {#1154 …2} "field_series" => Illuminate\Database\Eloquent\Collection {#1156 …2} "field_umk" => Illuminate\Database\Eloquent\Collection {#1157 …2} "field_level_of_education" => Illuminate\Database\Eloquent\Collection {#1158 …2} "field_standart_of_education" => Illuminate\Database\Eloquent\Collection {#1160 …2} "field_publication_number" => "3" "field_publication_type" => Illuminate\Database\Eloquent\Collection {#1162 …2} "field_under_the_edition" => Illuminate\Database\Eloquent\Collection {#1164 …2} "field_under_the_edition_degree" => null "field_cover_description" => "с градусником" "field_publication_year" => "2023" "field_publication_year_until" => null "field_part" => "" "field_part_writing" => "" "field_second_foreign_language" => null "field_for_whom" => null "field_allowed" => "Допущено Министерством просвещения Российской Федерации" "field_reserve_field" => null "field_link_to_source" => null "field_tasks_count" => "706" "field_priority" => "2" "field_default_folder" => "/fizika_08/Peryshkin-u23/" "field_isbn" => "978-5-09-102555-2" "field_cover" => array:1 [ …1] "field_cover_alts" => array:1 [ …1] "field_covers" => array:1 [ …1] "field_popular_book" => null "field_recommended_books" => Illuminate\Database\Eloquent\Collection {#1165 …2} "field_new_book" => Illuminate\Database\Eloquent\Collection {#1166 …2} "field_old_book" => Illuminate\Database\Eloquent\Collection {#1167 …2} "field_url" => "/8-klass/fizika/peryshkin-uchebnik" "field_cover_color" => Illuminate\Database\Eloquent\Collection {#1168 …2} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "breadcrumbs" => array:3 [ …3] ] #original: array:50 [ "id" => 51 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_tree_default_status" => "tasks" "field_pages_status" => null "field_subject" => Illuminate\Database\Eloquent\Collection {#1142 …2} "field_class" => Illuminate\Database\Eloquent\Collection {#1143 …2} "field_publisher" => Illuminate\Database\Eloquent\Collection {#1145 …2} "field_author" => Illuminate\Database\Eloquent\Collection {#1147 …2} "field_author_foreign" => Illuminate\Database\Eloquent\Collection {#1149 …2} "field_book_type" => Illuminate\Database\Eloquent\Collection {#1150 …2} "field_country" => Illuminate\Database\Eloquent\Collection {#1152 …2} "field_city" => Illuminate\Database\Eloquent\Collection {#1154 …2} "field_series" => Illuminate\Database\Eloquent\Collection {#1156 …2} "field_umk" => Illuminate\Database\Eloquent\Collection {#1157 …2} "field_level_of_education" => Illuminate\Database\Eloquent\Collection {#1158 …2} "field_standart_of_education" => Illuminate\Database\Eloquent\Collection {#1160 …2} "field_publication_number" => "3" "field_publication_type" => Illuminate\Database\Eloquent\Collection {#1162 …2} "field_under_the_edition" => Illuminate\Database\Eloquent\Collection {#1164 …2} "field_under_the_edition_degree" => null "field_cover_description" => "с градусником" "field_publication_year" => "2023" "field_publication_year_until" => null "field_part" => "" "field_part_writing" => "" "field_second_foreign_language" => null …23 ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "edition_groups" => Illuminate\Database\Eloquent\Collection {#1170 #items: [] #escapeWhenCastingToString: false } "content" => Illuminate\Database\Eloquent\Collection {#1181 #items: array:1 [ 0 => App\Models\Element {#1180 #connection: "mysql" #table: "elements" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:6 [ …6] #original: array:6 [ …6] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } "next" => array:2 [ "refs" => "991564" "type" => "book_page" ] "previous" => array:2 [ "refs" => "991562" "type" => "book_page" ] "tasks" => Illuminate\Database\Eloquent\Collection {#1588 #items: array:8 [ 0 => App\Models\Task {#1602 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 1 => App\Models\Task {#1761 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 2 => App\Models\Task {#1767 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 3 => App\Models\Task {#1808 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 4 => App\Models\Task {#1827 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 5 => App\Models\Task {#1898 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 6 => App\Models\Task {#2064 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } 7 => App\Models\Task {#2111 #connection: "mysql" #table: "tasks" #primaryKey: "id" #keyType: "int" +incrementing: true #with: [] #withCount: [] +preventsLazyLoading: false #perPage: 15 +exists: true +wasRecentlyCreated: false #escapeWhenCastingToString: false #attributes: array:24 [ …24] #original: array:24 [ …24] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ …1] } ] #escapeWhenCastingToString: false } ] #original: array:21 [ "id" => 991563 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "199" "field_url" => "/8-klass/fizika/peryshkin-uchebnik/page-199" "field_display_title" => "199" "field_folder" => "1" "field_image_name" => "199" "field_branch_parent" => Illuminate\Database\Eloquent\Collection {#1139} "field_weight" => "0" "field_book_parent" => Illuminate\Database\Eloquent\Collection {#1172} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "edition_groups" => Illuminate\Database\Eloquent\Collection {#1170} "content" => Illuminate\Database\Eloquent\Collection {#1181} "next" => array:2 [ "refs" => "991564" "type" => "book_page" ] "previous" => array:2 [ "refs" => "991562" "type" => "book_page" ] "tasks" => Illuminate\Database\Eloquent\Collection {#1588} ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] } ] #escapeWhenCastingToString: false } ] #original: array:24 [ "id" => 599372 "created_at" => "2026-04-10 13:58:26" "updated_at" => null "field_page_start" => "199" "field_page_end" => null "field_url" => "/8-klass/fizika/peryshkin-uchebnik/54-2-1" "field_display_title" => "1" "field_outside_task" => null "field_task_type" => Illuminate\Database\Eloquent\Collection {#331} "field_metatags_title" => null "field_metatags_description" => null "field_h1" => null "field_description_top" => null "field_description_bottom" => null "field_match" => null "breadcrumbs" => [] "edition_groups" => Illuminate\Database\Eloquent\Collection {#1026} "top_parent_branch" => Illuminate\Database\Eloquent\Collection {#342} "parent_branches" => Illuminate\Database\Eloquent\Collection {#1064} "content" => Illuminate\Database\Eloquent\Collection {#1082} "next" => array:2 [ "refs" => "599373" "type" => "task" ] "previous" => array:2 [ "refs" => "599371" "type" => "task" ] "book" => Illuminate\Database\Eloquent\Collection {#1123} "page" => array:2 [ "refs" => "991563" "type" => "book_page" ] ] #changes: [] #casts: [] #classCastCache: [] #attributeCastCache: [] #dateFormat: null #appends: [] #dispatchesEvents: [] #observables: [] #relations: [] #touches: [] +timestamps: true +usesUniqueIds: false #hidden: [] #visible: [] #fillable: [] #guarded: array:1 [ 0 => "*" ] }
№1 (с. 199)
Условие. №1 (с. 199)
скриншот условия
1. Каково устройство и принцип действия компаса?

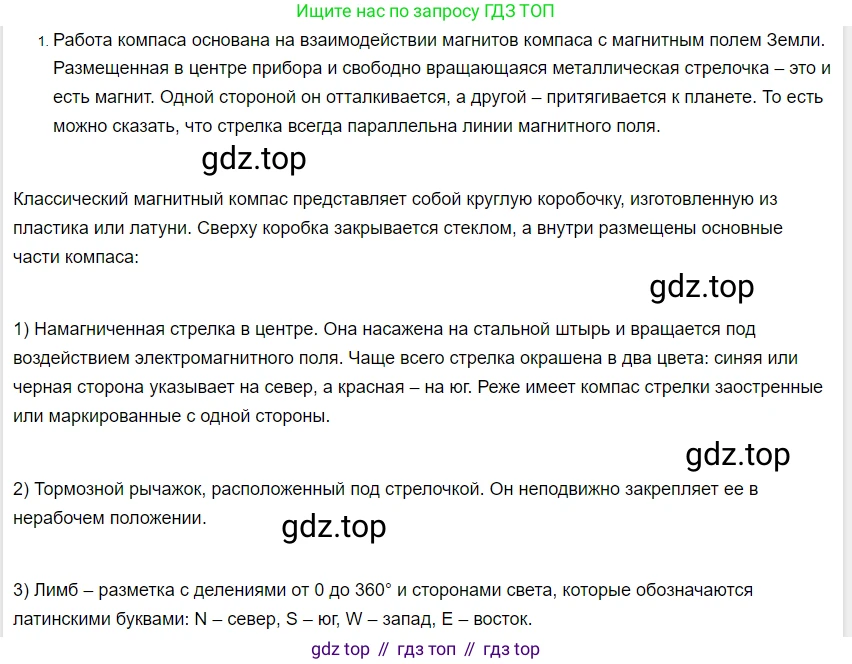

Решение 1. №1 (с. 199)
Решение 2. №1 (с. 199)
Решение 3. №1 (с. 199)
Решение 4. №1 (с. 199)

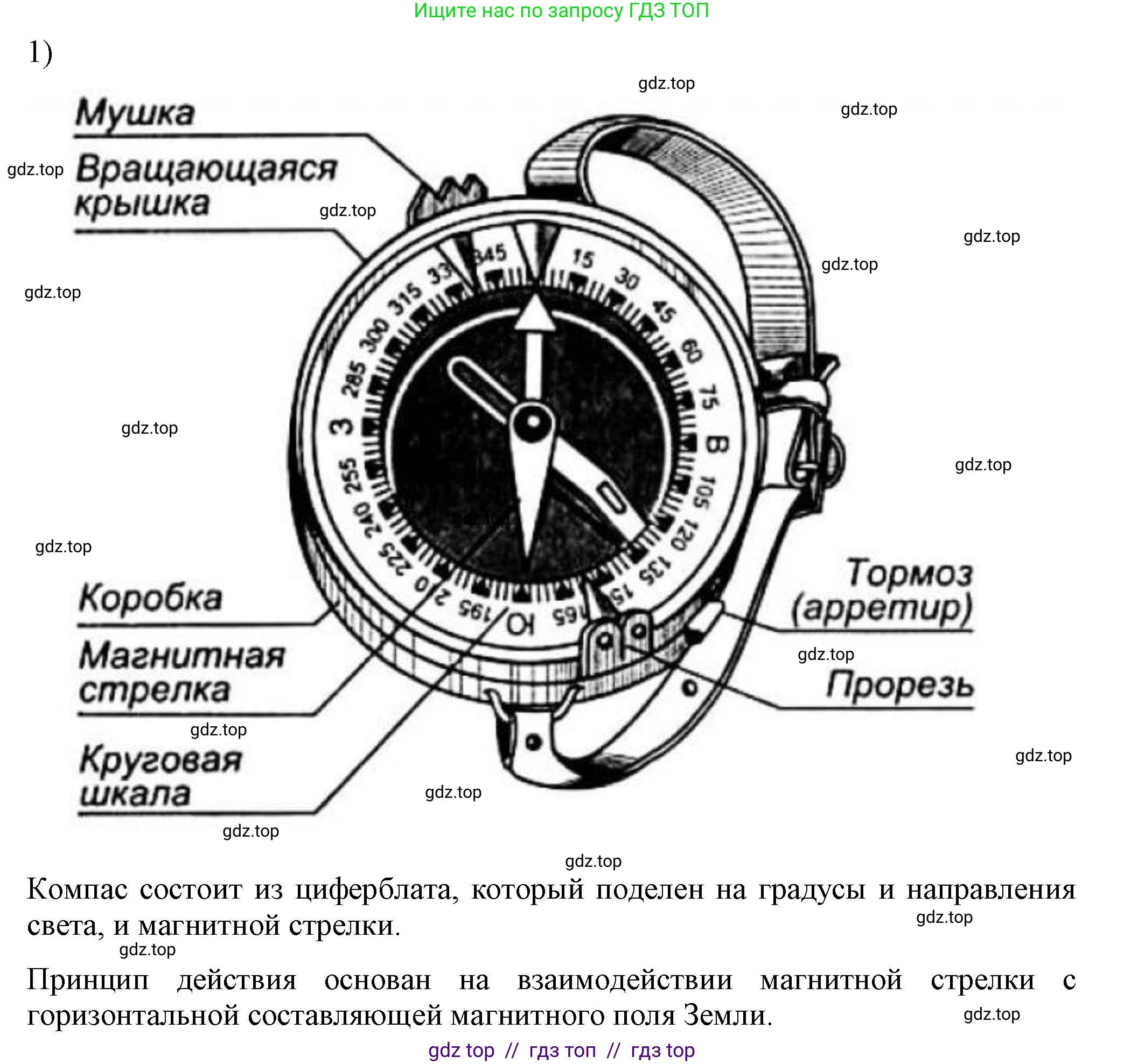

Устройство компаса
Классический магнитный компас, прибор для ориентирования на местности, состоит из нескольких ключевых частей. Корпус, обычно круглый и изготовленный из немагнитного материала (пластика, латуни), защищает внутренние механизмы. Центральным элементом является магнитная стрелка — легкий, сбалансированный постоянный магнит, установленный на острой игле для свободного вращения с минимальным трением. Один конец стрелки (северный) обычно окрашен для удобства. Под стрелкой расположена шкала (лимб) — круговой циферблат с делениями в градусах (от 0° до 360°) и обозначениями сторон света (С, Ю, З, В). В современных жидкостных компасах корпус заполнен специальной жидкостью (маслом, керосином), которая гасит колебания стрелки, делая ее показания более стабильными. Сверху конструкция защищена прозрачным стеклом. Многие компасы также оснащены арретиром — тормозным механизмом, который фиксирует стрелку для предотвращения износа опоры при транспортировке.
Ответ: Основными частями компаса являются корпус, свободно вращающаяся магнитная стрелка, шкала с делениями (лимб) и, в современных моделях, жидкость для стабилизации стрелки.
Принцип действия компаса

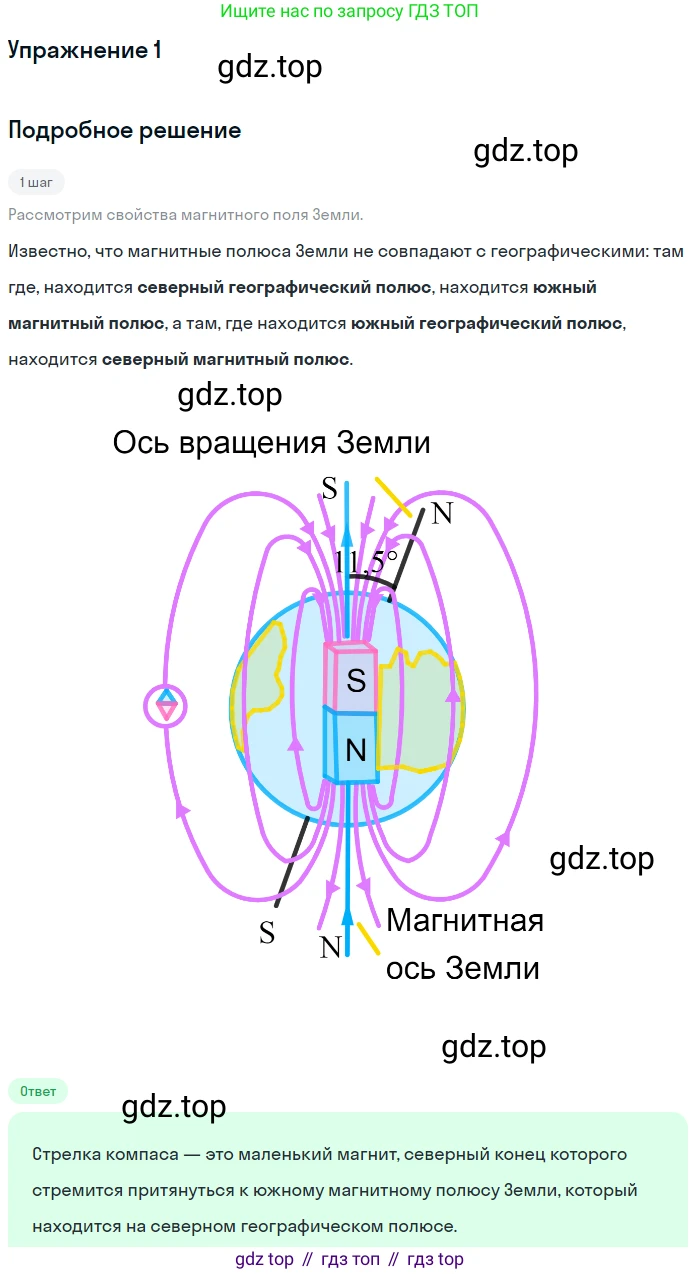

Принцип действия магнитного компаса основан на взаимодействии его магнитной стрелки с магнитным полем Земли. Наша планета представляет собой гигантский магнит, имеющий Южный магнитный полюс вблизи Северного географического полюса и Северный магнитный полюс вблизи Южного географического полюса.
Магнитная стрелка компаса — это, по сути, маленький стержневой магнит. Согласно фундаментальному закону магнетизма, противоположные полюса магнитов притягиваются, а одноименные — отталкиваются. Северный полюс магнитной стрелки компаса (тот, что ищет север) притягивается к Южному магнитному полюсу Земли. Поскольку этот магнитный полюс Земли находится в районе Северного географического полюса, стрелка компаса всегда выстраивается вдоль силовых линий земного магнитного поля и указывает на направление к Северному магнитному полюсу.
Таким образом, в любом месте на планете (за исключением районов вблизи магнитных полюсов, где поле становится вертикальным, и мест с магнитными аномалиями) свободно подвешенная магнитная стрелка устанавливается в направлении "север-юг". Это позволяет определить стороны света и ориентироваться на местности. Важно помнить о существовании магнитного склонения — угла между направлением на истинный (географический) север и магнитный север. Для точной навигации в показания компаса необходимо вносить поправку на величину магнитного склонения, которая зависит от географического местоположения.
Ответ: Принцип действия компаса основан на свойстве его магнитной стрелки (которая является постоянным магнитом) ориентироваться вдоль силовых линий магнитного поля Земли, указывая одним концом на Северный магнитный полюс Земли.
