Лабораторная работа №9 (с. 238)

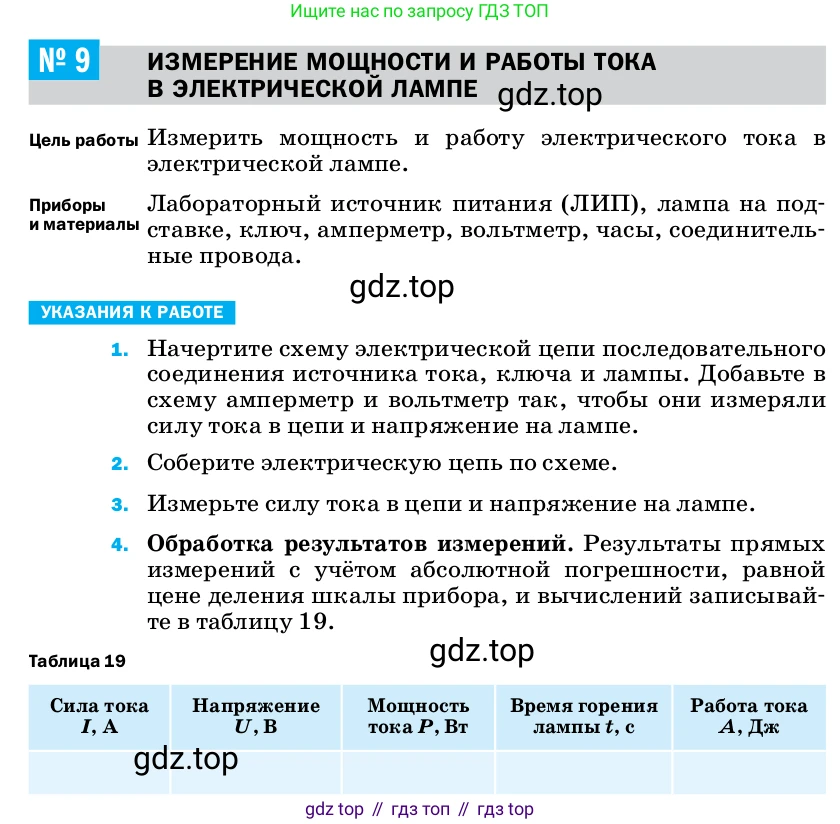

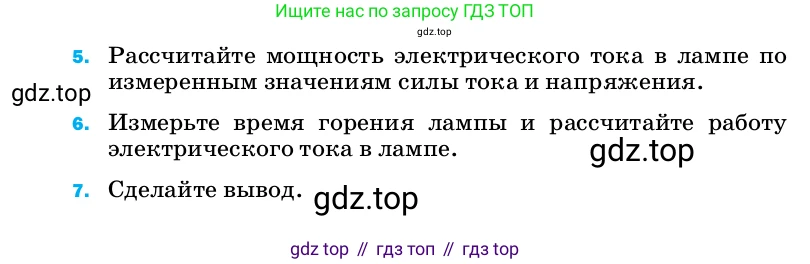

Условие. Лабораторная работа №9 (с. 238)
скриншот условия
№ 9 Измерение мощности и работы тока в электрической лампе
Цель работы Измерить мощность и работу электрического тока в электрической лампе.
Приборы и материалы Лабораторный источник питания (ЛИП), лампа на подставке, ключ, амперметр, вольтметр, часы, соединительные провода.
Указания к работе
1. Начертите схему электрической цепи последовательного соединения источника тока, ключа и лампы. Добавьте в схему амперметр и вольтметр так, чтобы они измеряли силу тока в цепи и напряжение на лампе.
2. Соберите электрическую цепь по схеме.
3. Измерьте силу тока в цепи и напряжение на лампе.
4. Обработка результатов измерений. Результаты прямых измерений с учётом абсолютной погрешности, равной цене деления шкалы прибора, и вычислений записывайте в таблицу 19.
5. Рассчитайте мощность электрического тока в лампе по измеренным значениям силы тока и напряжения.
6. Измерьте время горения лампы и рассчитайте работу электрического тока в лампе.
7. Сделайте вывод.

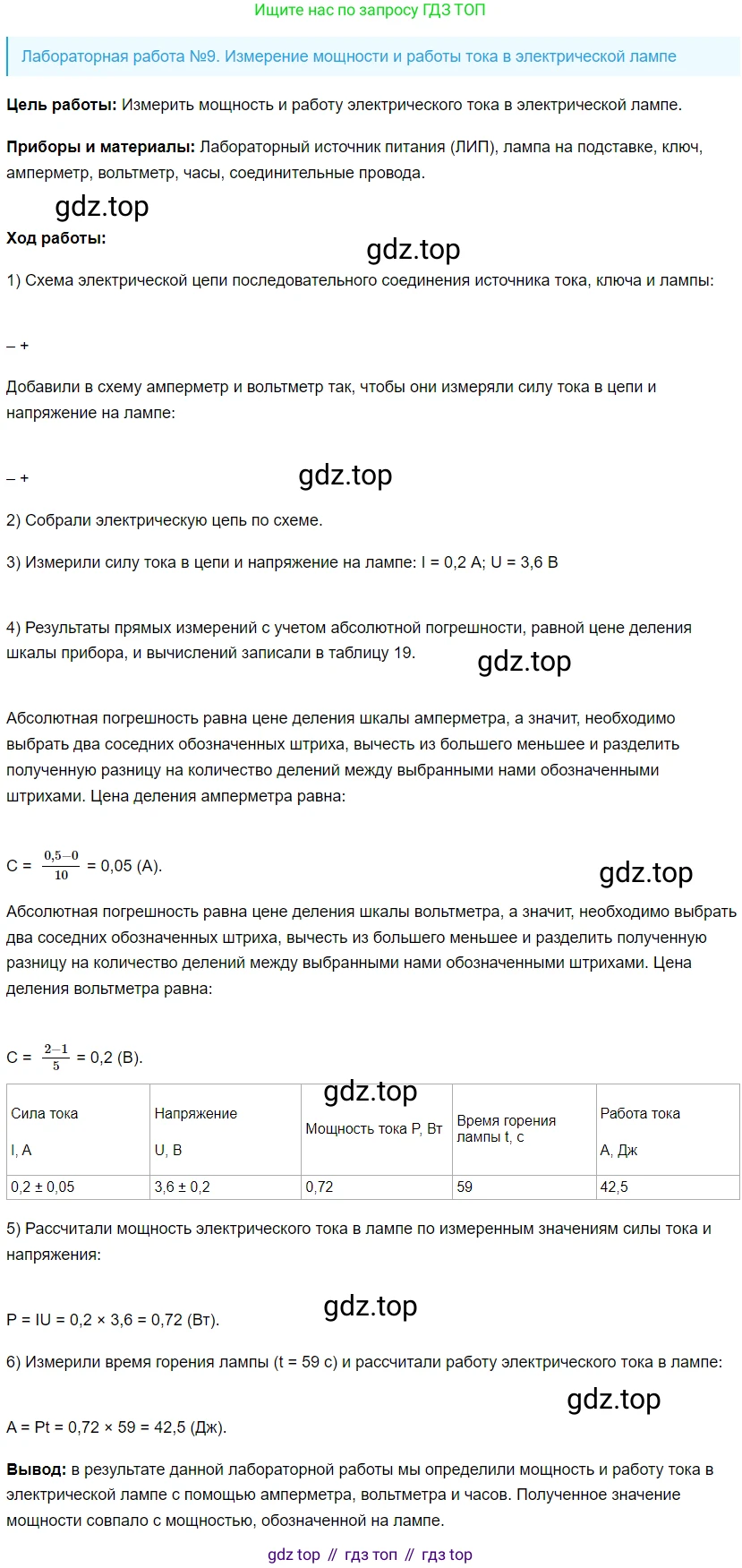

Решение 1. Лабораторная работа №9 (с. 238)
Решение 3. Лабораторная работа №9 (с. 238)
Решение 4. Лабораторная работа №9 (с. 238)

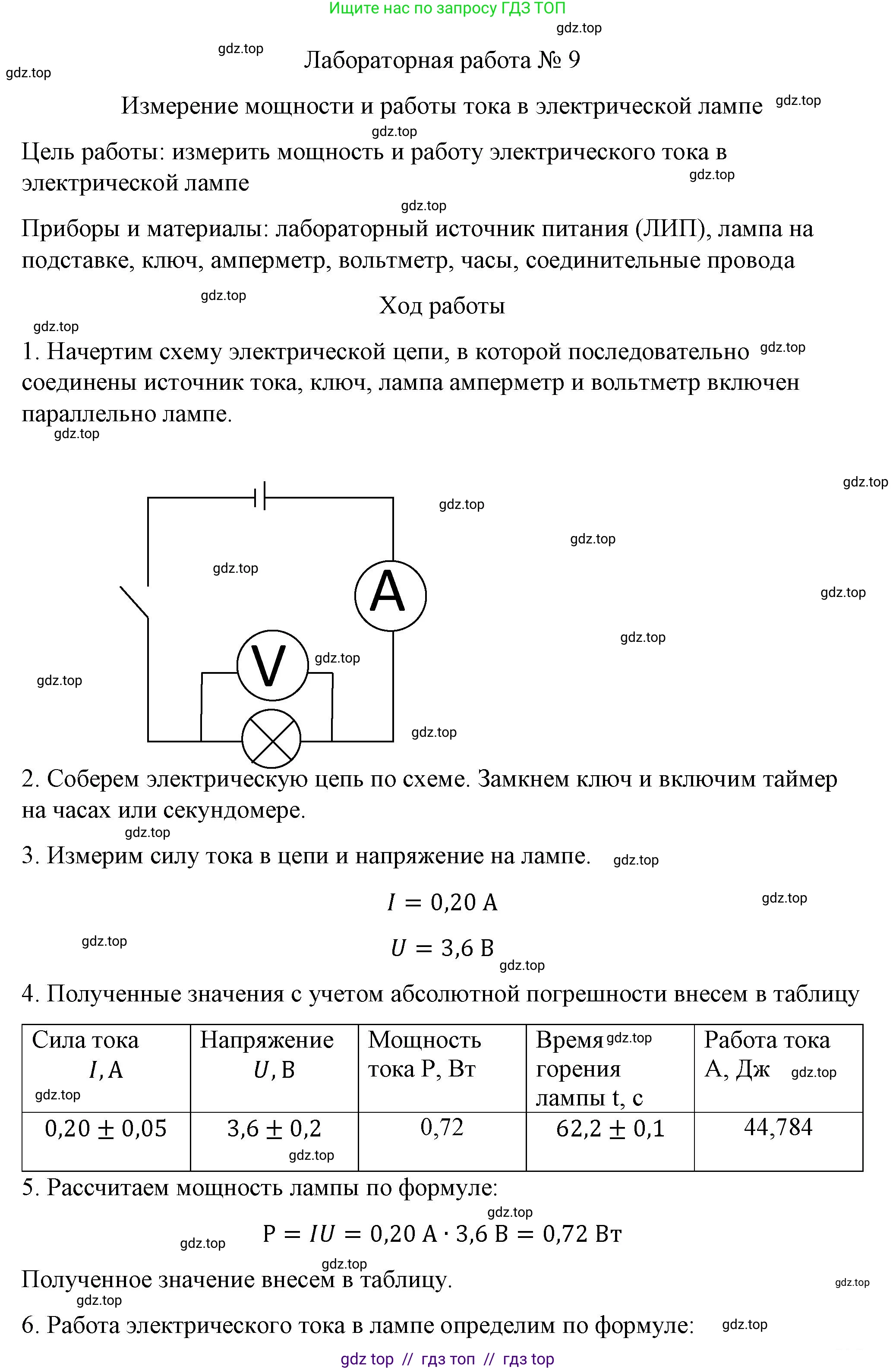

1. Начертите схему электрической цепи последовательного соединения источника тока, ключа и лампы. Добавьте в схему амперметр и вольтметр так, чтобы они измеряли силу тока в цепи и напряжение на лампе.
Схема электрической цепи для выполнения данной лабораторной работы состоит из последовательно соединенных источника тока, ключа, амперметра и электрической лампы. Амперметр включается в цепь последовательно для измерения силы тока, протекающего через лампу. Вольтметр подключается параллельно к выводам лампы для измерения напряжения на ней.
2. Соберите электрическую цепь по схеме.
Электрическая цепь собирается в соответствии с начерченной на первом этапе схемой. Необходимо строго соблюдать полярность при подключении амперметра, вольтметра и источника питания.
3. Измерьте силу тока в цепи и напряжение на лампе.
После сборки цепи замыкаем ключ и с помощью измерительных приборов снимаем показания. Предположим, что в результате измерений были получены следующие значения:
- Сила тока: $I = 0.4$ А
- Напряжение: $U = 3.6$ В
4. Обработка результатов измерений. Результаты прямых измерений с учётом абсолютной погрешности, равной цене деления шкалы прибора, и вычислений записывайте в таблицу 19.
Абсолютная погрешность измерений принимается равной цене деления шкалы прибора. Допустим, для используемых приборов:
- Цена деления амперметра: $C_I = 0.02$ А, следовательно, погрешность $\Delta I = 0.02$ А.
- Цена деления вольтметра: $C_U = 0.1$ В, следовательно, погрешность $\Delta U = 0.1$ В.
Результаты прямых измерений с учетом погрешности:
$I = (0.40 \pm 0.02)$ А
$U = (3.6 \pm 0.1)$ В
Дальнейшие расчеты и заполнение таблицы производятся на основе средних измеренных значений.
5. Рассчитайте мощность электрического тока в лампе по измеренным значениям силы тока и напряжения.
Дано:
$I = 0.40$ А
$U = 3.6$ В
Найти:
$P$ — мощность тока.
Решение:
Мощность электрического тока находится по формуле:
$P = U \cdot I$
Подставляем измеренные значения в формулу:
$P = 3.6 \text{ В} \cdot 0.40 \text{ А} = 1.44 \text{ Вт}$
Ответ: мощность электрического тока в лампе составляет $1.44$ Вт.
6. Измерьте время горения лампы и рассчитайте работу электрического тока в лампе.
С помощью часов измеряем время горения лампы. Предположим, время измерения составило 3 минуты.
Дано:
$P = 1.44$ Вт
$t = 3$ мин
Перевод в систему СИ:
$t = 3 \cdot 60 \text{ с} = 180 \text{ с}$
Найти:
$A$ — работа тока.
Решение:
Работа электрического тока вычисляется по формуле:
$A = P \cdot t$
Подставляем рассчитанное значение мощности и измеренное время:
$A = 1.44 \text{ Вт} \cdot 180 \text{ с} = 259.2 \text{ Дж}$
Ответ: работа электрического тока в лампе за 180 секунд составила $259.2$ Дж.
Теперь заполним таблицу 19 на основе полученных данных.
| Сила тока I, А | Напряжение U, В | Мощность тока P, Вт | Время горения лампы t, с | Работа тока A, Дж |
|---|---|---|---|---|
| 0.40 | 3.6 | 1.44 | 180 | 259.2 |
7. Сделайте вывод.
В ходе лабораторной работы была измерена мощность, потребляемая электрической лампой, и работа, совершаемая электрическим током за определенный промежуток времени. На основании прямых измерений силы тока $I = (0.40 \pm 0.02)$ А и напряжения $U = (3.6 \pm 0.1)$ В была рассчитана мощность тока в лампе, которая составила $P = 1.44$ Вт. За время $t = 180$ с электрический ток в лампе совершил работу $A = 259.2$ Дж. Цель работы достигнута: были экспериментально определены мощность и работа электрического тока в лампе.
